Name: AK2 Camera Kit [TC-KIT 8] – 8 Camera & 1 NVR - SHAM CCTV
Price: 2299000 IDR
Availability: InStock

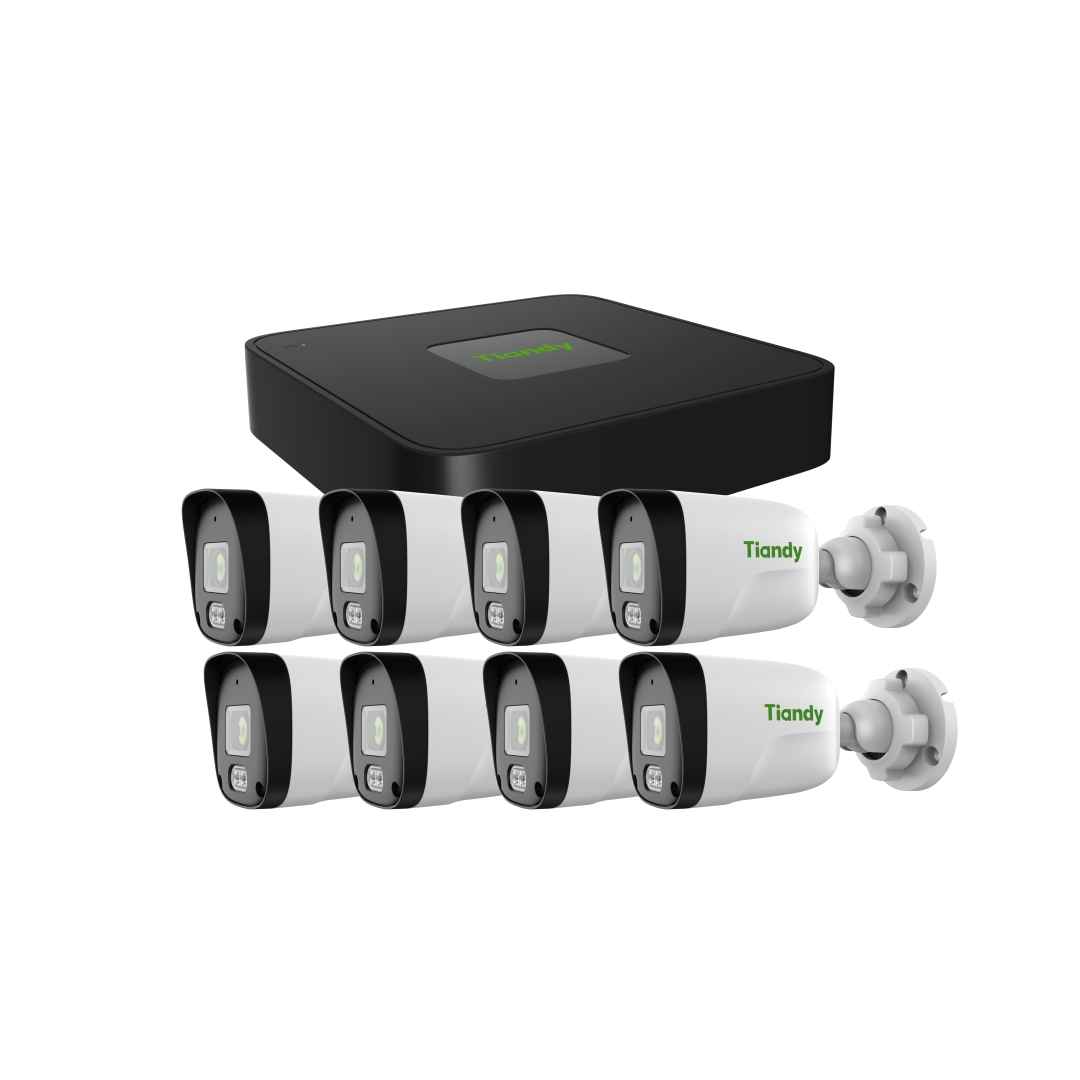

AK2 Camera Kit [TC-KIT 8] – 8 Camera & 1 NVR

Rp2.299.000

Tiandy AK2 Camera Kit [TC-KIT 8]

8 × 2MP Bullet Cameras + 8-Channel PoE NVR

8 unit 2 MP Bullet Camera (1/3″ CMOS, F2.0, DWDR, 30 m IR, 0.02 Lux, IP67, PoE)
1 unit 8-ch PoE NVR • 60 Mbps incoming / 40 Mbps outgoing bandwidth
Decoding: 6 MP @ 30 fps × 1 or 1080p @ 30 fps × 4
8-channel synchronous playback
HDD up to 6 TB support
Video outputs: HDMI & VGA

8 Cameras
2MP
PoE
NVR 8-ch
HDD up to 6 TB

Hubungi Admin

Post Views: 27

Tiandy AK2 Camera Kit [TC-KIT 8]

8 × 2 MP Bullet Cameras + 8-Channel PoE NVR

Komponen

Spesifikasi

Kamera (×8)

Sensor: 1/3″ CMOS
Resolusi: 2 MP (1920×1080 @ 30 fps)
Kompresi Video: S+265 / H.265 / H.264B/M/H
Fitur: DWDR, IR range 30 m, ICR auto, Smart IR, S/N > 47.8 dB
Lensa: 2.8 mm fixed (M12), F2.0
FOV: H 94.4°, V 53.2°, Diagonal 108.2°
DORI: Deteksi 41.5 m • Observasi 16.5 m • Rekognisi 8.3 m • Identifikasi 4.1 m
Audio: Built-in Mic • OSD, Mask, White Balance, 3D DNR, Defog
Proteksi: IP67, PoE, Surge 4000V, ESD 6000V
Dimensi Unit: 140 × 60 × 60 mm; Box: 155 × 75 × 85 mm; Berat kotor per kamera: ~0.2 kg :contentReference[oaicite:1]{index=1}

NVR (×1)

Channel: 8 × PoE input • Bandwidth: Masuk 60 Mbps / Keluar 40 Mbps
Decoding: 6 MP ×1, 1080p ×4 (preview/playback) :contentReference[oaicite:2]{index=2}
Output: HDMI / VGA, Multi-screen
Kompresi Video: S+265; H.265; S+264; H.264 // Audio: G.711A/U; ADPCM
Penyimpanan: HDD hingga 6 TB; Backup via USB
Interface: 8 × PoE ports (Budget 45 W), SATA, USB, ONVIF, Easy7, EasyLive Plus :contentReference[oaicite:3]{index=3}
Dimensi: 200 × 200 × 43 mm; Box: 315 × 70 × 235 mm; Berat kotor: ~0.89 kg :contentReference[oaicite:4]{index=4}
