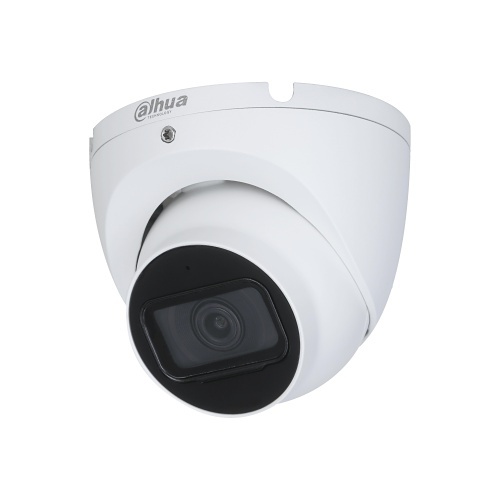

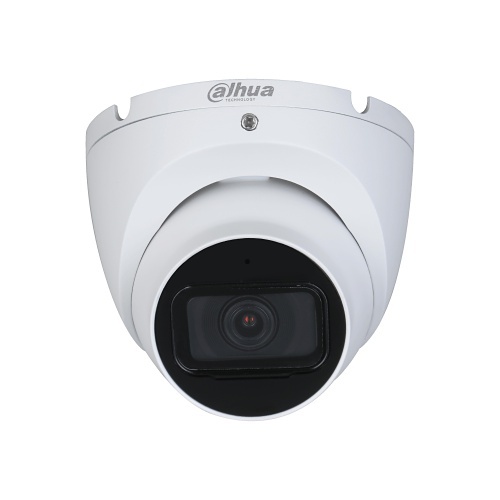

Dahua DH-HAC-HDW1801TLMP-A
4K HDCVI Eyeball Camera – Smart IR & Built-in Mic
| Kategori | Spesifikasi |
|---|---|
| Kamera & Sensor | Sensor: 1/2.7″ 8MP CMOS Resolusi maksimum: 3840 × 2160 (4K) Progressive Scan Shutter: 1/25–1/100,000 s (PAL); 1/30–1/100,000 s (NTSC) Min. illuminasi: 0.01 lux @ F2.0 (warna), 0.001 lux (B/W), 0 lux (IR aktif) Rasio S/N: > 65 dB |
| Illuminasi | Smart IR Illumination Jarak IR: hingga 30 m Mode: Auto / Manual Jumlah LED: 2 unit IR |
| Lensa & Sudut Pandang | Lensa fixed: 3.6 mm (opsi 2.8 mm) Mount: M12 Aperture: F2.0 FOV 2.8 mm: H 106° / V 56° / D 125° FOV 3.6 mm: H 88° / V 46° / D 105° Fokus minimum: 2.8 mm → 1.3 m; 3.6 mm → 1.9 m |
| DORI (2.8 mm / 3.6 mm) | Detect: 85 m / 107 m Observe: 34 m / 43 m Recognize: 17 m / 21 m Identify: 8 m / 11 m |
| Video & Output | Frame rate: 4K@15 fps Format output: CVI / TVI / AHD / CVBS (BNC switchable) Resolusi: 4K / 5M / 4M / 1080p / 960H Day/Night: Auto (ICR) / Color / B/W Fitur: True WDR 120 dB, BLC, HLC, 3D NR, Defog, Mirror, Privacy Masking (8 area) |
| Audio | Built-in Microphone (versi -A) Pickup range: ±5–8 m |
| Daya | Catu daya: 12 VDC ±30% Konsumsi: Maks. 4.2 W (IR aktif) |
| Lingkungan | Suhu operasi: –40 °C hingga +60 °C Kelembapan: <95% RH (non-condensing) Proteksi: IP67 |
| Struktur & Dimensi | Material: Plastik Dimensi: Φ109.9 mm × 100.9 mm (≈ 11.0 × 10.1 cm) Berat bersih: ±0.34 kg (340 g) Berat kotor: ±0.47 kg (470 g) Instalasi: wall / ceiling / vertical pole mount |
| Sertifikasi | CE, FCC, UL |
