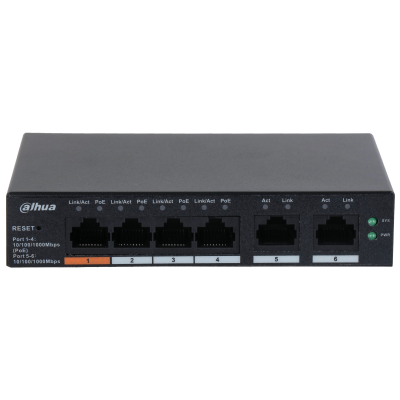

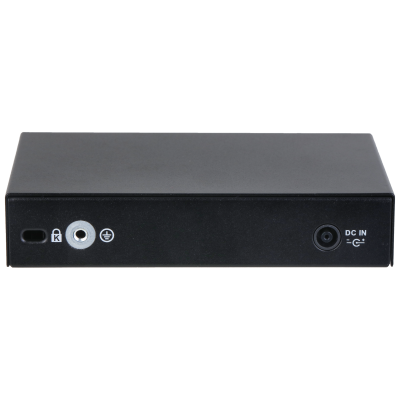

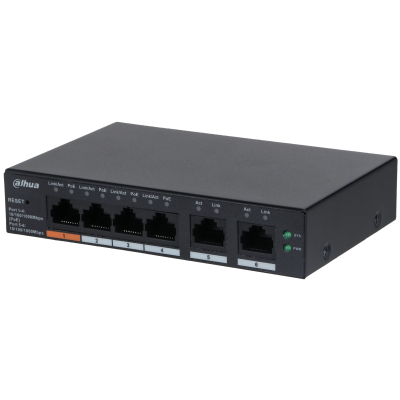

Dahua DH-CS4006-4GT-60
6-Port Cloud Managed Desktop Gigabit Switch – 4 GE PoE + 2 GE Uplink
| Kategori | Spesifikasi |
|---|---|
| Port / Slot | Port 1–4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5–6: 2 × RJ-45 10/100/1000 Mbps (uplink) 1 × tombol Reset |
| Standar & Protokol | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
| PoE / Power | Mendukung IEEE802.3af, IEEE802.3at, Hi-PoE Port 1: ≤ 60 W Port 2–4: ≤ 30 W masing-masing Total PoE budget: ≤ 60 W Manajemen konsumsi daya PoE & kontrol PoE on/off Long Distance PoE (transmisi hingga 250 m) |
| Performa | Layer: Layer 2 Switching Capacity: 12 Gbps Packet Forwarding Rate: 8,93 Mpps Packet Buffer: 4 Mbit MAC Table Size: 8K entri Jumbo Frame: hingga 15K bytes VLAN: 32 VLAN |
| Daya & Konsumsi | Idling: ≤ 2,5 W Beban penuh: ≤ 65 W Catu daya eksternal: 53 VDC, 1,226 A |
| Lingkungan Operasional | Suhu operasi: –10 °C hingga +55 °C Kelembapan operasi: 5% – 95% RH (non-condensing) Suhu penyimpanan: –40 °C hingga +70 °C Kelembapan penyimpanan: 5% – 95% RH |
| Dimensi & Berat | Ukuran produk: 130 mm × 90 mm × 26 mm Berat bersih: 0,29 kg (290 g) Berat kotor (kemasan): 0,94 kg Dimensi kemasan: 265 mm × 238 mm × 76 mm |
| Material & Instalasi | Casing: sheet metal / full metal Instalasi: desktop mount atau wall mount |
| Proteksi & Keandalan | Proteksi ESD: air discharge 8 kV, contact discharge 6 kV Proteksi petir: common mode 4 kV, differential mode 2 kV Manajemen: Web + App management MTBF: 222,36 tahun |
