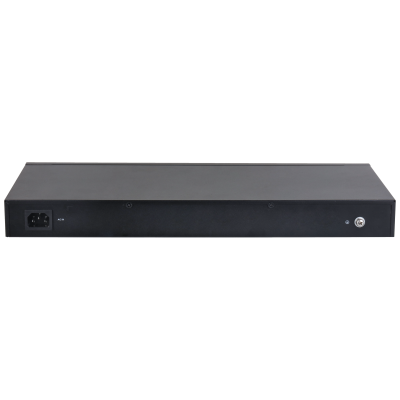

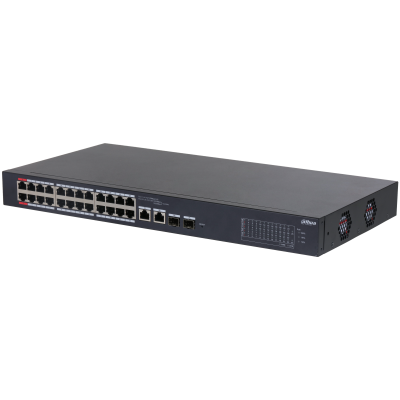

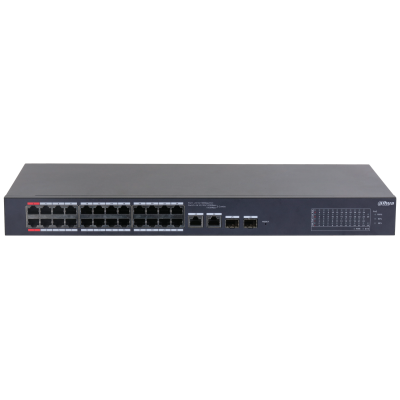

Dahua DH-CS4226-24ET-240
26-Port Cloud Managed Switch – 24 FE PoE + 2 GE Combo Uplink
| Kategori | Spesifikasi |
|---|---|
| Port / Slot | Port 1–24: 24 × RJ-45 10/100 Mbps (PoE) Port 25–26: combo 2 × RJ-45 10/100/1000 Mbps + 2 × SFP 1000 Mbps (combo) 1 × tombol Reset |
| Standar & Protokol | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z |
| PoE / Power | Mendukung IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt Port 1–2: hingga 90 W per port Port 3–24: hingga 30 W per port Total PoE budget: ≤ 240 W Manajemen konsumsi daya PoE, kontrol PoE ON/OFF, Long Distance PoE (250 m), PoE Watchdog |
| Performa | Layer: Layer 2 switch Switching Capacity: 8,8 Gbps Packet Forwarding Rate: 6,55 Mpps Packet Buffer: 4 Mbit MAC Table Size: 8K entri VLAN: hingga 32 VLAN Jumbo Frame: hingga 15K bytes |
| Daya & Konsumsi | Idle: ≤ 8,5 W Beban penuh: hingga 265 W Catu daya internal: 100–240 VAC, 47–63 Hz, max 4 A |
| Lingkungan Operasional | Suhu operasi: –10 °C hingga +55 °C Kelembapan: 5% – 95% RH (non-condensing) Suhu penyimpanan: –40 °C hingga +70 °C Kelembapan penyimpanan: 5% – 95% RH |
| Dimensi & Berat | Ukuran produk: 440 mm × 220 mm × 44 mm (P × L × T) Berat bersih: 2,47 kg (2.470 g) Berat kotor (kemasan): 3,12 kg Dimensi kemasan: 540 mm × 342 mm × 90 mm |
| Material & Instalasi | Casing: sheet metal (full metal) Instalasi: desktop, wall mount, atau mounting rak |
| Proteksi & Keandalan | Proteksi ESD: air discharge 8 kV, contact discharge 6 kV Proteksi petir: common mode 4 kV, differential mode 2 kV Manajemen: Web & App management MTBF: 64,20 tahun |
