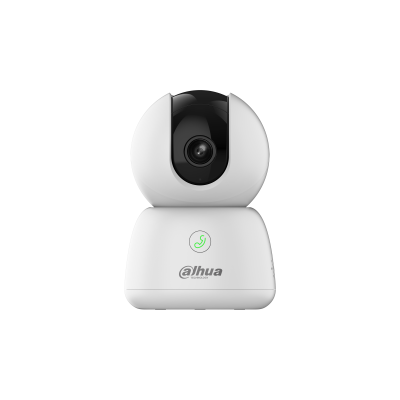

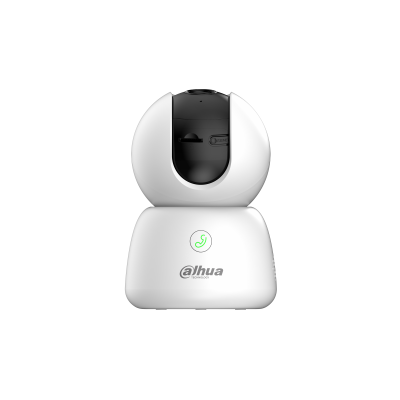

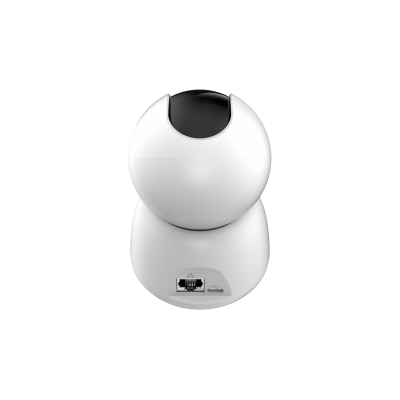

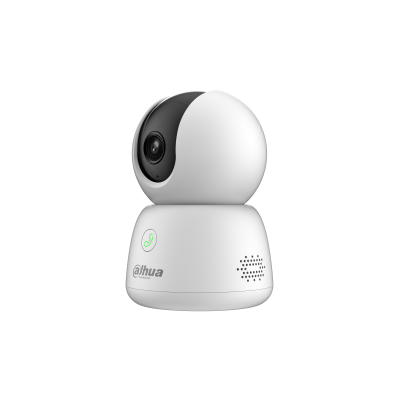

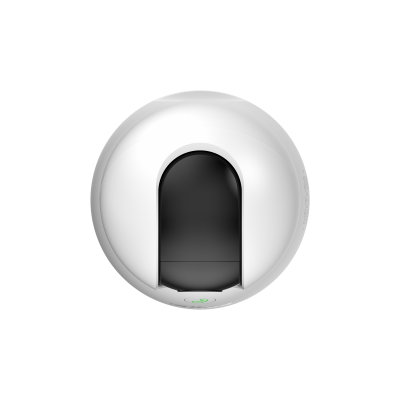

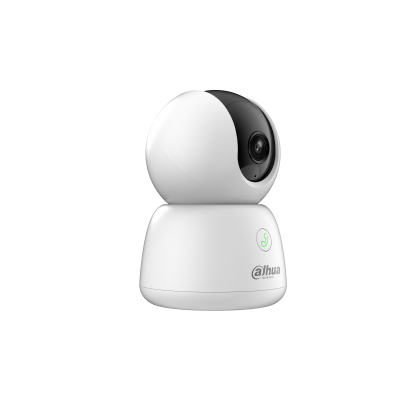

Dahua DH-H5B 5MP
5MP Indoor Fixed-Focal Wi-Fi Pan & Tilt Camera – Hero Series
| Kategori | Spesifikasi |
|---|---|
| Sensor & Resolusi | Sensor: 1/3″ CMOS Resolusi maksimum: 2880 × 1620 (5 MP) @25/30fps Electronic shutter: 1/3 s – 1/100,000 s S/N Ratio: > 56 dB |
| Iluminasi (IR) | 1 × IR LED built-in Jarak iluminasi: hingga 10 m Kontrol IR: otomatis |
| Pan & Tilt | Pan: 0° hingga 350° Tilt: –5° hingga 80° |
| Lensa & Field of View | Aperture maksimum: F2.0 Field of View: H 74°, V 41°, D 88° |
| Video & Kompresi | Kompresi: H.265 / H.264 Main stream: 2880 × 1620 @ (1–25/30 fps) Sub stream: 640 × 360 @ (1–25/30 fps) Bitrate: 40 kbps – 4096 kbps Mode Day/Night: Auto (ICR) / Color / B/W WDR: DWDR Rotasi gambar: 0° / 180° |
| Audio | Mic internal: Ya Speaker internal: Ya Kompresi audio: G.711a |
| Jaringan & Penyimpanan | Port: RJ-45 (10/100 Base-T) Wi-Fi: IEEE 802.11 b/g/n/ax (2.4 GHz) Micro SD card: hingga 256 GB Platform: DMSS (iOS / Android) |
| Daya & Lingkungan | Power supply: 5 VDC, 1 A Konsumsi: 1.9 W (standby) – 3.8 W (aktif) Suhu operasi: –10 °C hingga +45 °C Kelembapan: ≤ 95% RH (non-condensing) |
| Struktur & Dimensi | Material: Plastik Dimensi: φ84 mm × 123.8 mm (diameter × tinggi) Berat: 206.5 g |
| Sertifikasi | CE |
