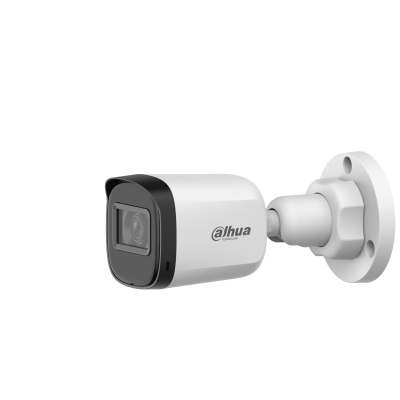

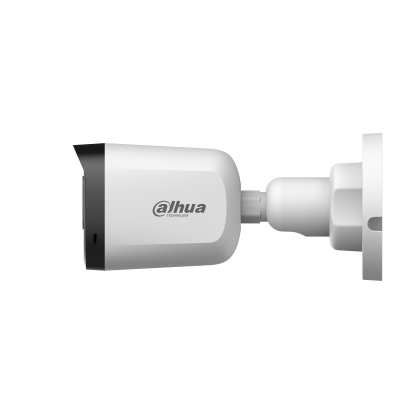

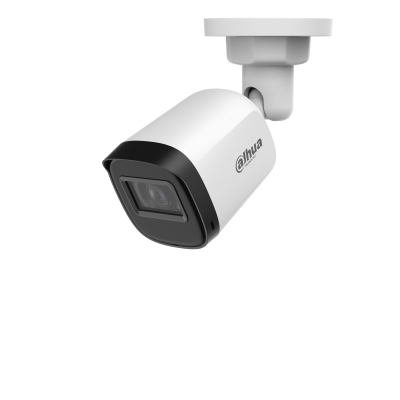

Dahua DH-HAC-B1A51-U (S2)
5MP Smart IR HDCVI Fixed-Focal Bullet Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | Sensor: 5 MP CMOS Resolusi Maksimum: 2880 × 1620 (5MP) Sistem Pemindaian: Progressive Electronic Shutter: PAL 1/25 – 1/100,000 s; NTSC 1/30 – 1/100,000 s Min. Illumination: 0.02 lux @ F2.0 (warna, 30 IRE); 0.002 lux @ F2.0 (B/W, 30 IRE); 0 lux (IR aktif) S/N Ratio: > 65 dB |
| Iluminasi / IR | Jarak IR maksimal: 30 m Kontrol: Auto / Manual Jumlah Illuminator: 3 unit IR Angle Adjustment: Pan 0°–360°, Tilt 0°–90°, Rotasi 0°–360° |
| Lensa & Sudut Pandang | Tipe lensa: Fixed-focal Mount: M12 Panjang fokus: 2.8 mm / 3.6 mm / 6 mm (opsional) Aperture: F2.0 Field of View: – 2.8 mm: H 106° / V 56° / D 125° – 3.6 mm: H 92° / V 48° / D 109° – 6 mm: H 54° / V 29° / D 62° Fokus minimum: 2.8 mm → 1.0 m; 3.6 mm → 1.3 m; 6 mm → 2.8 m |
| DORI | 2.8 mm: Detect 66.0 m / Observe 26.4 m / Recognize 13.2 m / Identify 6.6 m 3.6 mm: Detect 76.0 m / Observe 30.4 m / Recognize 15.2 m / Identify 7.6 m 6 mm: Detect 126.0 m / Observe 50.4 m / Recognize 25.2 m / Identify 12.6 m |
| Video & Output | Frame rate: 5MP@25 fps (16:9 output) Mode 5MP / 4M / 1080p / 960H Output: CVI / TVI / AHD / CVBS (melalui satu port BNC) Mode Hari / Malam: Auto ICR / Color / B/W Fitur: BLC, HLC, DWDR, White Balance (Auto / Area), Gain Control, 2D NR Mirror: Yes Privacy Masking: 8 area (rectangular) |
| Daya & Konsumsi | Power Supply: 12 VDC ± 30% Konsumsi maksimal: 3.7 W (IR aktif) |
| Lingkungan & Operasional | Suhu operasi: –40 °C hingga +60 °C Kelembapan: < 95% RH, tanpa kondensasi Suhu penyimpanan: –40 °C hingga +60 °C Proteksi: IP67 |
| Struktur & Dimensi | Bahan casing: Plastik Dimensi: 146.1 mm × 70.0 mm × 69.8 mm Berat bersih: 0.17 kg (≈ 170 g) Berat kotor: 0.25 kg (≈ 250 g) Instalasi: wall, ceiling, vertical pole mount |
| Sertifikasi | CE-LVD: EN 62368-1 CE-EMC: EN 55032 / EN 55035 FCC: CFR47 Part 15, Subpart B |
