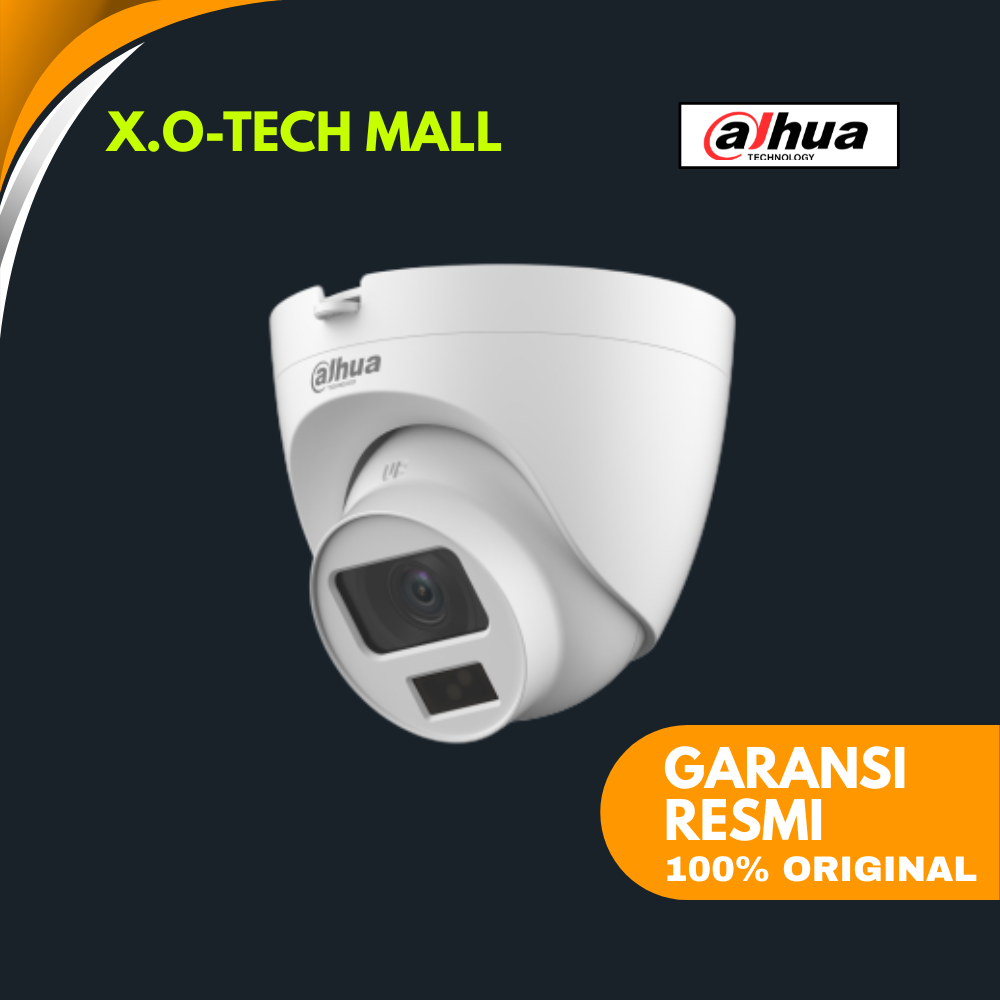

Dahua DH-HAC-HDW1200CLQ-IL-A
2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | Sensor: 2 MP CMOS Resolusi maks: 1920 × 1080 (1080p) Pemindaian: Progressive Shutter: PAL 1/25 s – 1/100,000 s; NTSC 1/30 s – 1/100,000 s Min. Illuminasi: 0.01 lux @ F2.0 (warna, 30 IRE); 0.001 lux (B/W) 0 lux bila illuminator aktif S/N Ratio: > 65 dB |
| Iluminasi / Smart Dual Light | Jarak iluminasi (IR): 20 m Jarak warm light: 20 m Kontrol On/Off: Auto Jumlah illuminator: 2 (warm light) + 2 (IR) Mode: Smart IR & WL, WL mode, IR mode |
| Lensa & Sudut Pandang | Tipe lensa: Fixed-focal Mount: M12 Panjang fokus: 2.8 mm; 3.6 mm Aperture: F2.0 FOV: – 2.8 mm: H 102° / V 60° / D 129° – 3.6 mm: H 83° / V 48° / D 105° Fokus minimum: 0.5 m (2.8 mm) / 0.7 m (3.6 mm) |
| DORI | Lensa 2.8 mm: Detect 41.1 m / Observe 16.5 m / Recognize 8.3 m / Identify 4.1 m Lensa 3.6 mm: Detect 50.9 m / Observe 20.3 m / Recognize 10.2 m / Identify 5.1 m |
| Video & Output | Output: CVI / TVI / AHD / CVBS (via satu port BNC) Frame rate: • CVI: 1080p@25/30 fps • AHD: 1080p@25/30 fps • TVI: 1080p@25/30 fps • CVBS: 960H Day/Night: Auto (ICR) / Color / B/W Fitur: BLC, HLC, DWDR, White Balance (Auto / Area), Gain Control, 3D NR Mirror: Ya Privacy Masking: 8 area (rectangular) |
| Daya & Konsumsi | Tegangan: 12 VDC ± 30% Konsumsi maksimum: 2.6 W (IR aktif) |
| Lingkungan & Operasional | Suhu kerja: –40 °C hingga +60 °C Kelembapan: < 95% RH (tanpa kondensasi) Suhu penyimpanan: –40 °C hingga +60 °C Proteksi: IP67 |
| Struktur, Dimensi & Berat | Material: Plastik Ukuran: Φ97.1 mm × 93.8 mm Berat bersih: 0.18 kg (≈ 180 g) Berat kotor: 0.29 kg (≈ 290 g) |
| Instalasi | Metode pemasangan: wall mount, ceiling mount, vertical pole mount |
| Sertifikasi & Standar | CE-LVD: EN 62368-1 CE-EMC: EN 55032 / EN 55035 FCC: 47 CFR Part 15 (Subpart B) |
