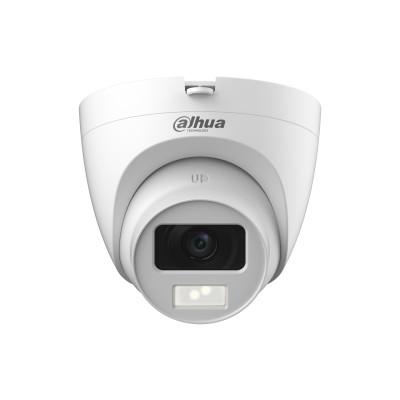

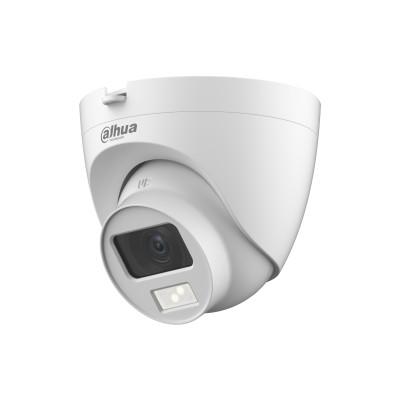

Dahua DH-HAC-HDW1240CLQP-IL-A
2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
| Kategori | Spesifikasi |
|---|---|
| Kamera | Sensor: 2 MP CMOS Resolusi maks: 1920 × 1080 (1080p) Sistem pemindaian: Progressive Shutter: PAL 1/25 – 1/100,000 s; NTSC 1/30 – 1/100,000 s Min. Illuminasi: 0.01 lux @F2.0 (Color, 30 IRE); 0.001 lux @F2.0 (B/W); 0 lux (IR on) S/N Ratio: >65 dB |
| Iluminasi | Jarak IR: 20 m Jarak warm light: 20 m Kontrol: Auto Jumlah LED: 2 warm light + 2 IR Mode: Smart IR & WL / IR Mode / WL Mode |
| Lensa & Sudut Pandang | Lensa: Fixed 3.6 mm (opsi 2.8 mm) Mount: M12 Aperture: F2.0 FOV 2.8 mm: H 102° / V 60° / D 129° FOV 3.6 mm: H 83° / V 48° / D 105° Fokus minimum: 0.5 m (2.8 mm), 0.7 m (3.6 mm) |
| DORI | 2.8 mm: Detect 41.1 m · Observe 16.5 m · Recognize 8.3 m · Identify 4.1 m 3.6 mm: Detect 50.9 m · Observe 20.3 m · Recognize 10.2 m · Identify 5.1 m |
| Video | Frame rate: 1080p@25/30fps (CVI/AHD/TVI), 960H (CVBS) Resolusi: 1080p / 960H Mode Hari/Malam: Auto (ICR) / Color / B/W Fitur: BLC, HLC, DWDR, 3D NR, White Balance (Auto/Area), Gain Control Privacy Masking: 8 area Mirror: Ya |
| Audio | Input audio: 1 channel (built-in mic) |
| Daya | Suplai: 12 VDC ±30% Konsumsi: Maks. 2.6 W (IR on) |
| Lingkungan | Suhu kerja: –40 °C ~ +60 °C Kelembapan: <95% RH (non-condensing) Proteksi: IP67 |
| Struktur | Material: Plastik Dimensi: Φ97.1 mm × 93.8 mm (≈ 9.7 × 9.7 × 9.4 cm) Berat bersih: 0.18 kg (180 g) Berat kotor: 0.29 kg (290 g) Instalasi: wall / ceiling / pole mount |
| Sertifikasi | CE-LVD: EN 62368-1 CE-EMC: EN 55032, EN 55035 FCC: Part 15 Subpart B |
