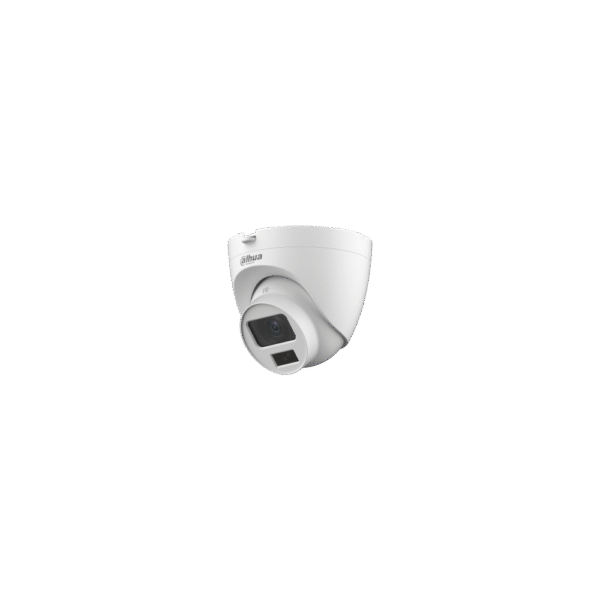

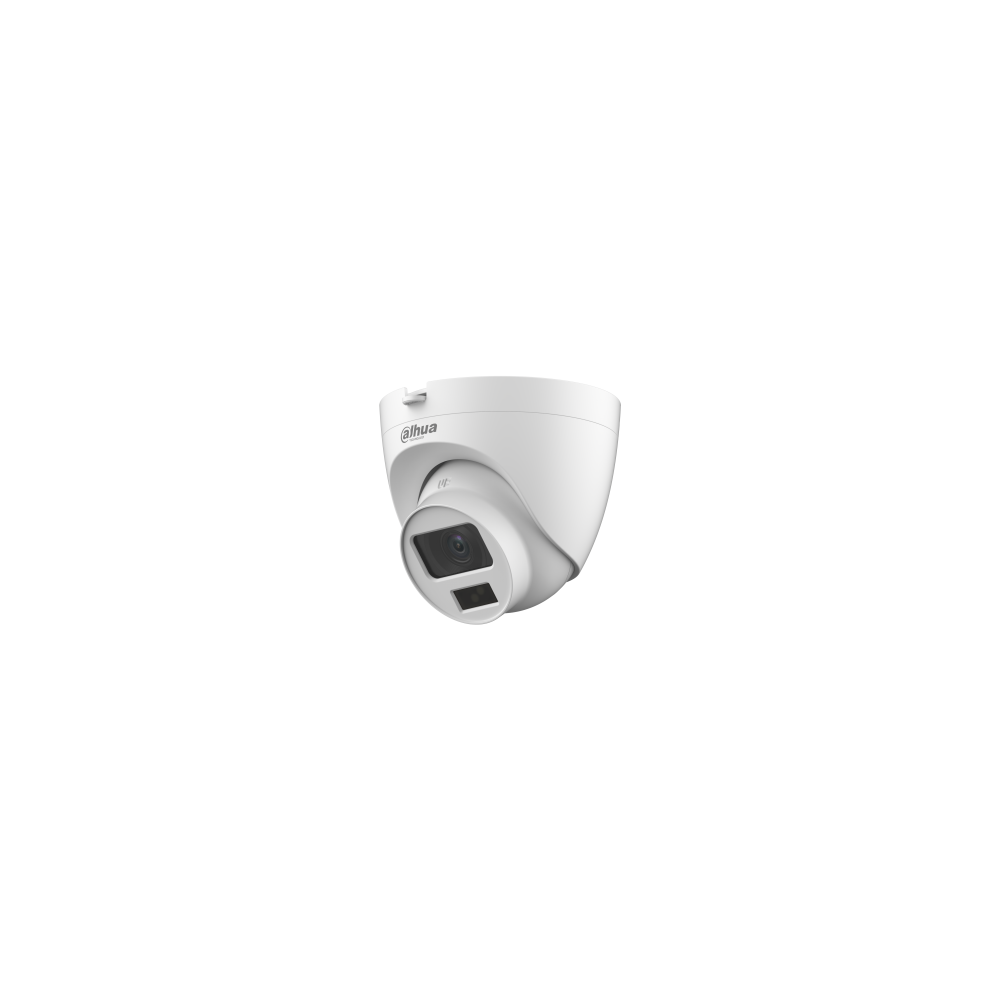

Dahua DH-HAC-HDW1500CLQP-IL-A
5MP Smart Dual Light HDCVI Fixed-focal Quick-to-install Eyeball Camera (S2)
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 5 MP CMOS Resolusi maks: 2880 × 1620 (5MP, 16:9) Pemindaian: Progressive Shutter elektronik: PAL 1/25 s–1/100,000 s; NTSC 1/30 s–1/100,000 s Min. iluminasi: 0.05 lux @ F1.6 (Color, 30 IRE); 0.005 lux @ F1.6 (B/W, 30 IRE); 0 lux (illum. ON) S/N ratio: > 65 dB |
| Smart Dual Light | Jarak iluminasi: IR hingga 30 m; Warm light hingga 20 m Kontrol illuminator: Auto / Manual Jumlah LED: 2 (Warm) + 2 (IR) Mode: Smart IR & WL / WL Mode / IR Mode |
| Lensa & FOV | Tipe: Fixed-focal; Mount: M12 Focal length: 2.8 mm; 3.6 mm Aperture maks: F1.6; Iris: Fixed FOV 2.8 mm: H 106° · V 56° · D 125° FOV 3.6 mm: H 92° · V 48° · D 109° Jarak fokus minimum: 0.8 m (2.8 mm); 1.3 m (3.6 mm) |
| DORI (2.8 mm / 3.6 mm) | Detect: 56 m / 76 m · Observe: 22.4 m / 30.4 m · Recognize: 11.2 m / 15.2 m · Identify: 5.6 m / 7.6 m |
| Video & Output | Frame rate (CVI): PAL 5M@25fps; NTSC 5M@25fps AHD/TVI: 4M@25/30fps · CVBS: 960H (PAL/NTSC) Resolusi: 5M / 4M / 1080p / 960H Day/Night: Auto (ICR) / Color / B/W Fitur: BLC, HLC, DWDR, White Balance (Auto/Area), Gain (Auto/Manual), 2D NR, Mirror, Privacy Masking (8 area) |
| Audio & Port | Audio input: 1-ch built-in mic Video output: CVI / TVI / AHD / CVBS via 1× BNC |
| Daya | Suplai: 12 VDC ±30% Konsumsi maks: 4.5 W (WLED ON) |
| Lingkungan & Proteksi | Suhu operasi/penyimpanan: –40 °C hingga +55 °C Kelembapan: < 95% RH (non-condensing) Proteksi: IP67 |
| Struktur, Dimensi & Berat | Material casing: Plastik Dimensi produk: Φ97.1 mm × 93.8 mm (≈ 9.7 cm × 9.7 cm × 9.4 cm) Berat bersih: 0.19 kg (≈ 190 g) · Berat kotor: 0.30 kg (≈ 300 g) Penyesuaian sudut: Pan 0°–360° · Tilt 0°–78° · Rotasi 0°–360° Instalasi: wall / ceiling / vertical pole mount |
| Sertifikasi | CE-LVD: EN 62368-1 · CE-EMC: EN 55032, EN 55035 · FCC: Part 15 Subpart B |
| Catatan Firmware | Untuk memakai 5MP 16:9 & Smart Dual Light, XVR perlu firmware ≥ V4.001.0000004.1.R.220323 |
