Estimasi: DH-HAC-HFW1240-U-IL

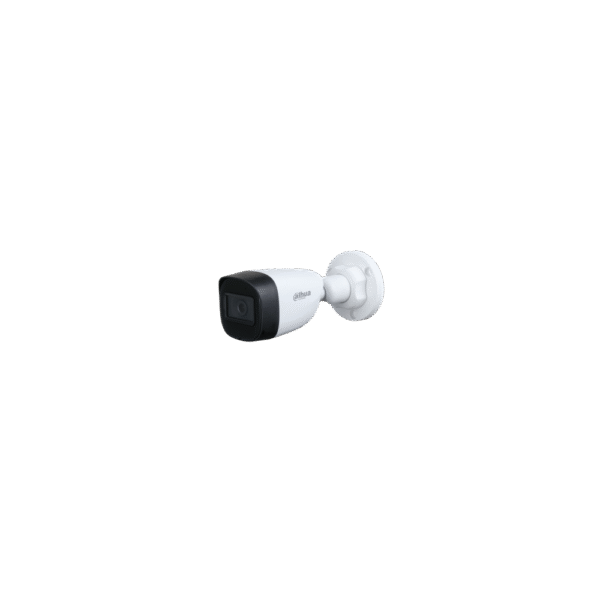

2MP Smart Dual Light HDCVI Bullet Camera
| Kategori | Estimasi Spesifikasi |
|---|---|
| Sensor & Gambar | Sensor: 2 MP CMOS Resolusi: 1920 × 1080 (1080p) Kecepatan rana elektronik: PAL 1/25 s – 1/100,000 s / NTSC 1/30 s – 1/100,000 s Min. Illumination: ~0.01 lux (warna / LED off), 0 lux saat LED aktif S/N Ratio: > 65 dB |
| Illuminasi / Dual Light | Mode Smart Dual Light (IR + LED putih) Jarak iluminasi: hingga 30 m Kontrol: Auto / Manual 1 LED IR + 1 LED putih |
| Lensa & Sudut Pandang | Lensa fixed: 3.6 mm (opsi 2.8 mm / 6 mm) Mount: M12 Aperture maksimum: F2.0 FOV kisaran: ~H 100° (untuk 2.8 mm) sampai ~H 53° (untuk 6 mm) Fokus minimum: ~0.5 m (2.8 mm), ~0.8 m (3.6 mm), ~2.0 m (6 mm) |
| DORI | Estimasi DORI (2.8 mm / 3.6 mm / 6 mm): • Detect: 40–80 m • Observe: 15–33 m • Recognize: 8–16 m • Identify: 4–8 m |
| Video & Output | Output switchable: CVI / TVI / AHD / CVBS Frame rate: 1080p@25/30 fps, 720p@25/30 fps Mode Hari/Malam (ICR), Mirror, Privacy Masking, BLC / DWDR, White Balance, Gain Control, Noise Reduction |
| Daya & Konsumsi | Tegangan: 12 V DC ± 30% Konsumsi maksimum: ~2.6 W – 3 W |
| Lingkungan & Proteksi | Suhu operasi: –40 °C hingga +60 °C Kelembapan: < 95% RH (tanpa kondensasi) Proteksi: IP67 (deb u & air) |
| Struktur, Dimensi & Berat | Casing: logam / plastik Dimensi estimasi: ~166.6 mm × 69.7 mm × 70.0 mm (mirip model CMP-IL) Berat estimasi: ~320 g (net) / ~400 g (gross) |
| Instalasi & Aksesori | Mount: wall, ceiling, pole Catatan: untuk fitur Smart Dual Light, firmware XVR harus ≥ V4.001.0000004.1.R.220323 |
