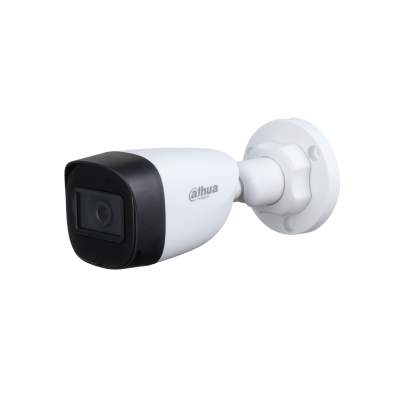

Dahua DH-HAC-HFW1240CP-A-DIP
2MP HDCVI IR Bullet Camera – Lite Series
| Kategori | Spesifikasi |
|---|---|
| Kamera & Sensor | Sensor: 1/2.7” CMOS, 2MP Resolusi: 1920 × 1080 (1080p) Sistem pemindaian: Progressive Kecepatan rana: PAL 1/25–1/100,000s; NTSC 1/30–1/100,000s S/N Ratio: >65 dB |
| Pencahayaan & IR | Min. Illumination: 0.02 lux @F1.9, 30 IRE; 0 lux (IR aktif) IR jarak hingga 30 m 2 lampu IR, kontrol Auto/Manual Smart IR untuk pencahayaan seimbang |
| Lensa & Sudut Pandang | Lensa fixed: 2.8 mm / 3.6 mm (opsional) Aperture: F1.9, Mount: M12 FOV 2.8 mm: H 101° / V 54° / D 119° FOV 3.6 mm: H 84° / V 45° / D 100° Fokus minimum: 0.5 m (2.8 mm), 0.8 m (3.6 mm) |
| DORI (2.8 mm / 3.6 mm) | Detect: 38.6 m / 49.7 m Observe: 15.4 m / 19.9 m Recognize: 7.7 m / 9.9 m Identify: 3.9 m / 5.0 m |
| Video & Output | Frame Rate: 1080p@25/30fps, 720p@25/30/50/60fps Format: HDCVI / HDTVI / AHD / CVBS (4-in-1, via DIP switch) Day/Night: Auto (ICR) Fitur: BLC / HLC / DWDR, White Balance (Auto/Manual), AGC, 2D NR, Electronic Defog, Mirror, Privacy Masking (8 area) |
| Audio | Built-in mic (-A varian) |
| Daya | Catu daya: 12V DC ±30% Konsumsi: Maks. 2.7 W (IR aktif) |
| Lingkungan Operasional | Suhu operasi: –40 °C ~ +60 °C Kelembapan: <95% RH (tanpa kondensasi) Proteksi: IP67 (tahan debu & air) |
| Dimensi & Berat | Dimensi: 161.3 mm × 69.7 mm × 70.0 mm (≈ 16.1 × 7.0 × 7.0 cm) Berat bersih: ±190 g Berat kotor: ±290 g |
| Bahan & Desain | Housing plastik, ringan & tahan lama DIP switch untuk pengaturan mode output Rotasi instalasi: Pan 0°–360°, Tilt 0°–90°, Rotasi 0°–360° |
| Sertifikasi | CE, FCC, UL |
