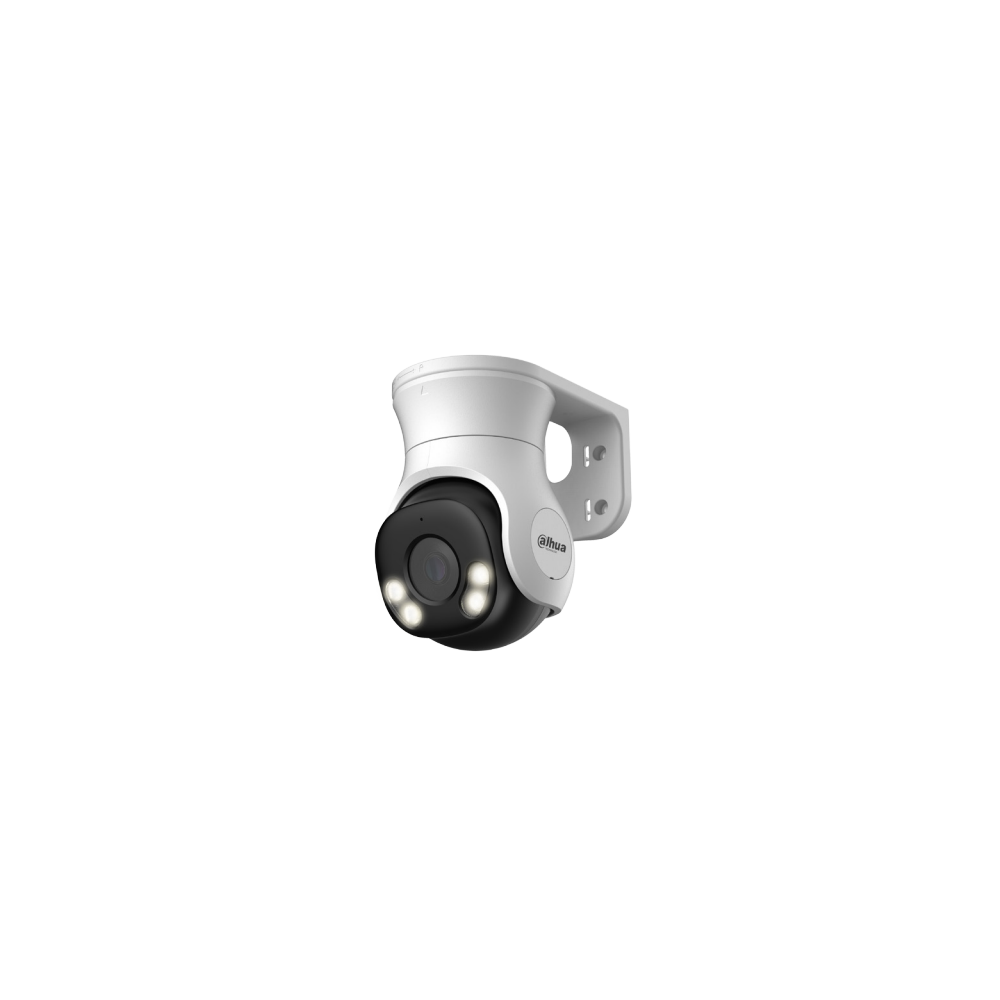

Dahua DH-HAC-PT1200AP-IL-A
2MP HDCVI Pan & Tilt Eyeball Camera – Smart Dual Light Series
| Kategori | Spesifikasi |
|---|---|
| Kamera & Sensor | Sensor: 1/2.7″ 2MP CMOS Resolusi maksimum: 1920 × 1080 (1080p) Frame rate: Maks. 30fps@1080p Scanning: Progressive Shutter: 1/25–1/100,000 s (PAL); 1/30–1/100,000 s (NTSC) Min. iluminasi: 0.02 lux (warna), 0.002 lux (B/W), 0 lux (IR/warm light aktif) S/N Ratio: >65 dB |
| Illuminasi & Lampu | Smart Dual Light + Smart Area Lighting Jarak iluminasi: hingga 40 m Mode: Smart IR / Warm Light / IR Only Kontrol: Otomatis / Manual |
| Lensa & Sudut Pandang | Lensa fixed: 3.6 mm (opsi 2.8 mm) Mount: M12 Aperture: F2.0 FOV 2.8 mm: H 106° / V 56° / D 125° FOV 3.6 mm: H 92° / V 48° / D 109° Jarak fokus minimum: 0.8 m (2.8 mm), 1.2 m (3.6 mm) |
| Pan & Tilt | Pan: 0° – 345° Tilt: 0° – 90° Manual control via XVR / DVR |
| Video & Output | Format output: HDCVI / AHD / TVI / CVBS (switchable, via BNC) Resolusi: 1080p / 720p / 960H Fitur: BLC, HLC, DWDR, White Balance (Auto/Area), AGC, 2D NR, Privacy Masking (8 area) |
| Audio | Built-in Microphone (-A) Jangkauan pickup: ± 5–7 m |
| Daya | Input: 12 VDC ±30% Konsumsi: Maks. 4 W (IR/warm light aktif) |
| Lingkungan | Suhu kerja: –40 °C ~ +60 °C Kelembapan: <95% RH (non-condensing) Proteksi: IP66 |
| Struktur & Dimensi | Material: Plastik Dimensi: Φ122 mm × 103 mm (≈ 12.2 × 10.3 cm) Berat: ±0.38 kg (netto), ±0.52 kg (bruto) Instalasi: wall / ceiling mount |
| Sertifikasi | CE, FCC, UL |
