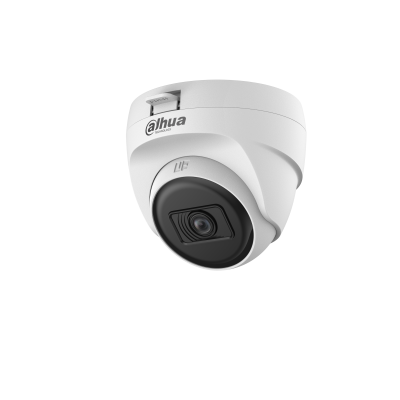

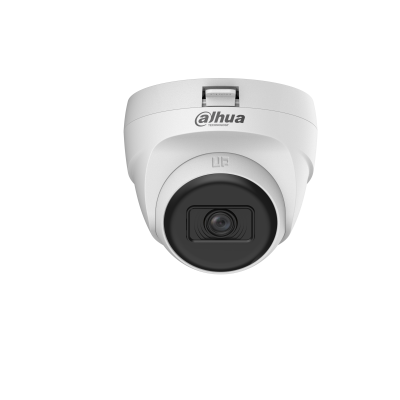

Dahua DH-HAC-T1A21-U
2MP HDCVI IR Eyeball Camera – Cooper Series
| Kategori | Spesifikasi |
|---|---|
| Kamera & Sensor | Sensor: 1/2.7” 2MP CMOS Resolusi: 1920 × 1080 (1080p) Sistem Pemindaian: Progressive Kecepatan rana: PAL 1/25–1/100,000s; NTSC 1/30–1/100,000s Min. Pencahayaan: 0.02 lux (Color, F2.0), 0.002 lux (B/W, F2.0), 0 lux (IR aktif) S/N Ratio: >65 dB |
| Lensa & Sudut Pandang | Lensa fixed: 2.8 mm / 3.6 mm (opsional) Aperture: F2.0, Mount: M12 FOV: 2.8 mm (H:100°/V:54°/D:117°), 3.6 mm (H:80°/V:43°/D:94°) Jarak fokus minimum: 0.5 m (2.8 mm), 0.8 m (3.6 mm) |
| IR & Pencahayaan | Jarak IR: hingga 25 m 1 lampu IR, mode Auto/Manual Smart IR untuk pencahayaan seimbang |
| Video & Output | Frame Rate: 1080p@25/30 fps, 720p@25/30 fps Format: HDCVI / HDTVI / AHD / CVBS (4-in-1) Day/Night: Auto (ICR) / Color / B/W Fitur: BLC, DWDR, 2D NR, Auto White Balance, AGC |
| DORI (2.8 mm / 3.6 mm) | Detect: 44.7 m / 55.0 m Observe: 17.9 m / 22.0 m Recognize: 8.9 m / 11.0 m Identify: 4.5 m / 5.5 m |
| Daya | Catu daya: 12V DC ±30% Konsumsi: Maks. 2.3 W (IR aktif) |
| Lingkungan Operasional | Suhu operasi: –40 °C ~ +60 °C Kelembapan: <95% RH (tanpa kondensasi) Proteksi: IP67 (tahan debu & air) |
| Dimensi & Berat | Dimensi: Φ85.0 mm × 77.1 mm (≈ 8.5 cm × 7.7 cm) Berat bersih: ±110 g Berat kotor: ±120 g |
| Bahan & Desain | Housing: Plastik (ringan & tahan lama) Desain Quick-to-install, modern & ringkas |
| Sertifikasi | CE-LVD: EN 62368-1 CE-EMC: EN 55032 / EN 55035 |
