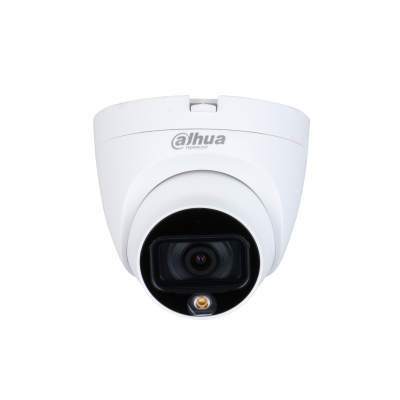

Dahua DH-HAC-T1A29P
2MP Full-Color Starlight HDCVI Eyeball Camera – Cooper Series
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | Sensor: 2 MP CMOS Resolusi maks: 1920 × 1080 (1080P) Sistem pemindaian: Progressive Shutter elektronik: PAL 1/25 s – 1/100,000 s; NTSC 1/30 s – 1/100,000 s Min. Illumination: 0.04 lux (warna, F2.0, 30 IRE); 0.004 lux (B/W, F2.0); 0 lux saat illuminator aktif S/N Ratio: > 65 dB |
| Iluminasi / IR | Jarak iluminasi: 20 m Kontrol illuminator: Auto / Manual Jumlah illuminator: 1 unit |
| Lensa & FOV | Tipe lensa: Fixed-focal Mount: M12 Panjang fokus: 2.8 mm; 3.6 mm; 6 mm (opsional) Aperture maksimal: F2.0 Sudut pandang (FOV): – 2.8 mm: H 100° / V 53° / D 120° – 3.6 mm: H 82° / V 42° / D 98° – 6 mm: H 53° / V 30° / D 60° Fokus minimum: 2.8 mm → 0.6 m; 3.6 mm → 1.0 m; 6 mm → 2.0 m |
| DORI | Lensa 2.8 mm: Detect 46.9 m / Observe 18.8 m / Recognize 9.4 m / Identify 4.7 m Lensa 3.6 mm: Detect 60.9 m / Observe 24.3 m / Recognize 12.2 m / Identify 6.1 m Lensa 6 mm: Detect 82.8 m / Observe 33.1 m / Recognize 16.6 m / Identify 8.3 m |
| Video & Output | Output: CVI / TVI / AHD / CVBS (satu port BNC) Frame rate: – CVI: 1080p@25/30 fps; 720p@25/30 fps – TVI: 1080p@25/30 fps; 720p@25/30 fps – AHD: 1080p@25/30 fps; 720p@25/30 fps – CVBS: 960H (PAL/NTSC) Mode Hari / Malam: Auto (ICR) / Warna / B/W Fitur: BLC, HLC, DWDR, White Balance, Gain Control, 2D NR Smart Illumination: Ya Mirror: Ya Privacy Masking: 8 area |
| Daya & Konsumsi | Tegangan: 12 VDC ±30% Konsumsi maksimum: 2.3 W (IR aktif) |
| Lingkungan Operasional | Suhu operasi: –40 °C hingga +60 °C Kelembapan: < 95% RH, tanpa kondensasi Suhu penyimpanan: –40 °C hingga +60 °C Proteksi: IP67 |
| Struktur, Dimensi & Berat | Bahan casing: Plastik Dimensi: Φ85.4 mm × 68.8 mm (≈ 8.54 cm × 6.88 cm) Berat bersih: 0.09 kg (≈ 90 g) Berat kotor: 0.13 kg (≈ 130 g) |
| Instalasi | Pemasangan: wall mount, ceiling mount, horizontal pole mount |
| Sertifikasi | CE, FCC, UL |
