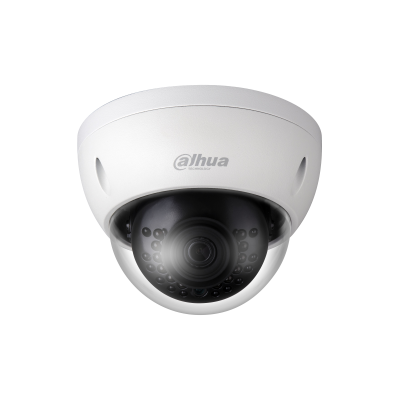

Dahua DH-IPC-HDBW1431E
4MP IR Dome Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/3″ CMOS, progressive scan Resolusi: 4MP (2560 × 1440) @25/30 fps Mendukung max. 4MP (2688 × 1520) @20 fps Min. iluminasi: 0.03 lux (warna), 0.003 lux (B/W, IR aktif) Shutter: 1/3 – 1/100,000 s S/N Ratio: > 56 dB |
| Lensa & Sudut Pandang | Lensa tetap: 2.8 mm / 3.6 mm (opsional) Aperture: F2.0 Sudut pandang (2.8 mm): H 104° × V 55° × D 123° Sudut pandang (3.6 mm): H 84° × V 45° × D 100° Fokus terdekat: 0.5 m (2.8 mm) / 0.8 m (3.6 mm) Jarak DORI (2.8 mm): Deteksi 60 m, Observasi 24 m, Recognize 12 m, Identify 6 m |
| Video & Kompresi | Kompresi: H.265, H.264, MJPEG (substream) Smart Codec: H.265+, H.264+ Triple-stream Bitrate: 32 kbps – 8192 kbps Mode Hari/Malam: Auto (ICR) / Warna / B/W Fitur: WDR, 3D NR, HLC, BLC, ROI, flip, mirror, watermark digital |
| Illuminator / IR | IR LED built-in Jarak iluminasi hingga 30 m Kontrol IR: Auto / Manual |
| Audio & Deteksi | Deteksi abnormalitas: motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection |
| Jaringan | Port: 1 × RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTSP/RTP, SMTP, FTP, DHCP, NTP, DDNS Interoperabilitas: ONVIF (Profile S/G), CGI, P2P Akses pengguna: hingga 10 user simultan |
| Daya | Power: 12 VDC ±30% / PoE (802.3af) Konsumsi daya: < 6 W |
| Lingkungan & Proteksi | Suhu operasi: –30 °C ~ +60 °C Kelembapan: ≤ 95% RH (non-condensing) Proteksi: IP67 (tahan cuaca) & IK10 (anti-vandal) |
| Dimensi & Berat | Dimensi: Ø 11.0 cm × 8.9 cm (diameter × tinggi) Berat bersih: ± 450 g Berat bruto (kemasan): ± 600 g |
| Isi dalam Box | 1 × Kamera DH-IPC-HDBW1431E 1 × Bracket / dudukan Sekrup & fisher untuk pemasangan Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
