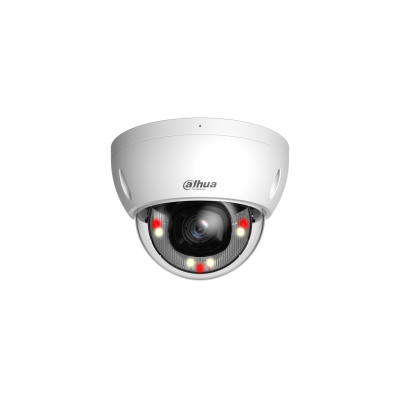

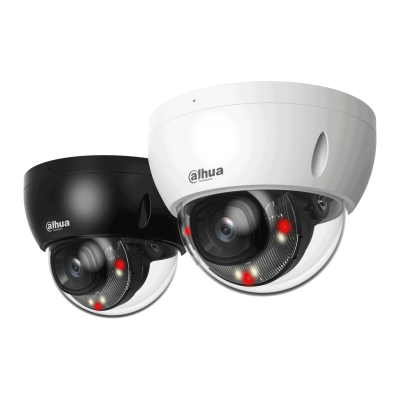

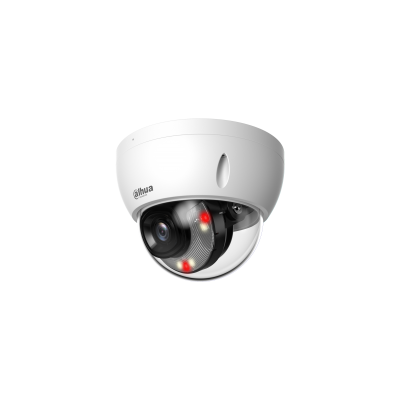

Dahua IPC-HDBW2249E-S-IL
2MP Smart Dual Light Dome WizSense Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.8″ CMOS, progressive scan Resolusi maksimum: 1920 × 1080 (2MP) @25/30 fps ROM: 128 MB; RAM: 128 MB Shutter: Auto/Manual 1/3 s – 1/100,000 s Min. iluminasi: 0.002 lux (Color), 0.0002 lux (B/W), 0 lux (LED aktif) S/N Ratio: >56 dB |
| Iluminator (Smart Dual Light) | IR LED + Warm Light Jarak IR hingga 30 m; Warm Light hingga 30 m Mode: Auto / Manual Jumlah: 3 IR LED + 4 Warm Light LED |
| Lensa & Sudut Pandang | Fixed-focal, Mount M12 Opsi: 2.8 mm (H:105° V:56° D:126°) / 3.6 mm (H:87° V:44° D:105°) Aperture: F1.6 Jarak fokus terdekat: 0.7 m (2.8 mm), 1.3 m (3.6 mm) |
| DORI (Deteksi/Observe/Recognize/Identify) | 2.8 mm: 43.9 m / 17.5 m / 8.8 m / 4.4 m 3.6 mm: 58.9 m / 23.6 m / 11.8 m / 5.9 m |
| Video & Kompresi | Kompresi: H.265, H.264 (H/HB), MJPEG (substream) Smart Codec: Smart H.265+, Smart H.264+ Main stream: 1080p @1–25/30 fps Substream: 704×576@25fps / 704×480@30fps Resolusi lain: 1.3M, 720p, D1, VGA, CIF Bitrate: H.264 (32–6144 kbps), H.265 (12–6144 kbps) Dual-stream |
| Fitur Gambar | WDR 120 dB, BLC, HLC, 3D NR ROI (4 area), rotasi 0°/90°/180°/270° (opsi resolusi) Privacy mask (4 area), digital watermark White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Gain Control: Auto / Manual |
| Inteligensi & Deteksi | IVS: Intrusion & Tripwire (klasifikasi manusia/kendaraan) Smart Search (dengan NVR) SMD Plus (Smart Motion Detection) Event abnormal: motion, tampering, scene change, audio, no SD, SD error/full, network error, illegal access, voltage detection |
| Audio & Alarm | Built-in Mic Codec: G.711a/µ, PCM, G.726 Alarm event: motion, tampering, intrusion, tripwire, audio, SD error/full, SMD, security exception |
| Jaringan & Protokol | Port: RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, ARP, RTP/RTSP/RTMP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, NTP, Multicast, ICMP, IGMP, P2P Interoperabilitas: ONVIF S/G/T, CGI, SDK/API Max user: 6 (36 Mbps total) |
| Penyimpanan | Slot MicroSD/SDHC/SDXC hingga 256 GB Penyimpanan eksternal: FTP, SFTP |
| Daya & Konsumsi | 12 VDC ±30% / PoE (802.3af) Konsumsi normal: 2.1 W (12 VDC) / 2.6 W (PoE) Konsumsi maksimum: 6.2 W (12 VDC) / 7.5 W (PoE) |
| Lingkungan & Proteksi | Suhu operasi: –40 °C ~ +60 °C Kelembapan: ≤95% RH (non-condensing) Proteksi: IP67 & IK10 |
| Dimensi & Berat | Dimensi: 8.1 × 10.99 × 10.99 cm (81.0 mm × Ø109.9 mm) Berat net: 350 g Berat bruto: 500 g Material casing: Metal |
| Isi dalam Box | 1 × Kamera IPC-HDBW2249E-S-IL 1 × Bracket/dudukan Sekrup & fisher Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
