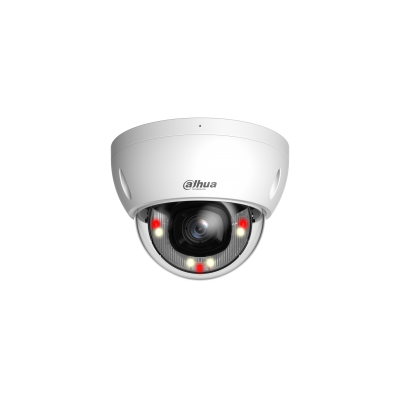

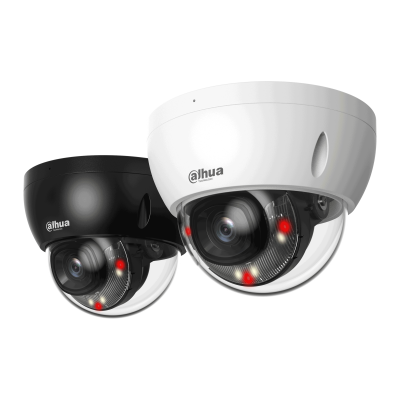

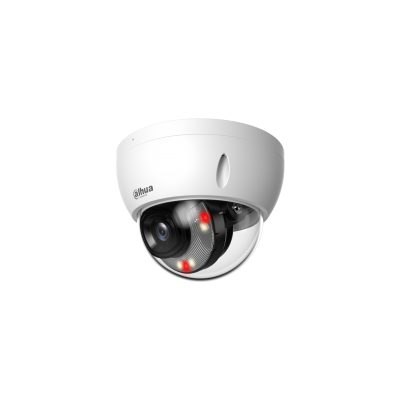

Dahua IPC-HDBW2849E-S-IL
8MP (4K) Smart Dual Light Dome WizSense Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.7″ CMOS, progressive scan Resolusi maks: 3840 × 2160 @20fps; mendukung 2560 × 1440 @25/30fps ROM 128 MB; RAM 256 MB Shutter: Auto/Manual, 1/3 – 1/100,000s Min. iluminasi: 0.008 lux (color), 0.0008 lux (B/W), 0 lux (LED aktif) S/N Ratio: >56 dB |
| Iluminator (Smart Dual Light) | Built-in IR LED + Warm Light Jarak IR: hingga 30 m Jarak Warm Light: hingga 30 m Kontrol: Auto / Manual LED: 3 IR + 4 Warm Light |
| Lensa & Sudut Pandang | Fixed-focal, M12 mount Opsi: 2.8 mm / 3.6 mm Aperture: F1.6 Field of View: – 2.8 mm: H 110° × V 58° × D 132° – 3.6 mm: H 86° × V 49° × D 100° Close focus: 1.5 m (2.8 mm), 1.9 m (3.6 mm) |
| DORI (Deteksi/Observe/Recognize/Identify) | 2.8 mm: 84.8 m / 33.9 m / 17.0 m / 8.5 m 3.6 mm: 98.7 m / 39.5 m / 19.7 m / 9.9 m |
| Video & Kompresi | Kompresi: H.265, H.264, MJPEG (substream) Smart Codec: Smart H.265+, Smart H.264+ Main stream: 3840×2160 @1–20fps; 2688×1520 @1–25/30fps Sub stream: 704×576 @1–25fps; 704×480 @1–30fps Resolusi tambahan: 8M, 6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF Bitrate: H.264 (32–8192 kbps), H.265 (12–8192 kbps) |
| Fitur Gambar | Mode Hari/Malam (ICR/Color/B/W) WDR 120 dB, BLC, HLC, 3D NR ROI (4 area), rotasi 0°/90°/180°/270° Privacy mask (4 area), Digital watermark White Balance: Auto/Natural/Street Lamp/Outdoor/Manual/Regional Gain Control: Auto/Manual |
| Inteligensi & Deteksi | IVS: Intrusion & Tripwire (deteksi manusia/kendaraan) Smart Search (dengan NVR) SMD Plus (Smart Motion Detection) Event abnormal: motion, tampering, audio, no SD, SD error/full, network error, IP conflict, illegal access, voltage detection |
| Audio & Alarm | Built-in Mic Audio codec: G.711a/µ, G.726, PCM Alarm: 1 in, 1 out Audio: 1 in, 1 out |
| Jaringan & Protokol | RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTP/RTSP/RTMP, FTP/SFTP, SMTP, DHCP, DNS/DDNS, NTP, Multicast, IGMP, P2P Interoperabilitas: ONVIF (S/G/T), CGI, SDK/API Max user: 20 (bandwidth total 48 Mbps) |
| Penyimpanan | MicroSD/SDHC/SDXC hingga 256 GB Dukungan FTP / SFTP / NAS |
| Daya & Konsumsi | 12 VDC ±30% / PoE (802.3af) Konsumsi normal: 2.6 W (12 VDC) / 3.3 W (PoE) Konsumsi maksimum: 6.9 W (12 VDC) / 8.3 W (PoE) |
| Lingkungan & Proteksi | Suhu operasi: –40 °C ~ +60 °C Kelembapan: ≤95% RH Proteksi: IP67, IK10 |
| Dimensi & Berat | Dimensi: 8.1 × 10.99 × 10.99 cm (81 × Ø109.9 mm) Berat net: 0.36 kg Berat bruto: 0.51 kg Material: Metal |
| Isi dalam Box | 1 × Kamera IPC-HDBW2849E-S-IL 1 × Bracket/dudukan Sekrup & fisher Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
