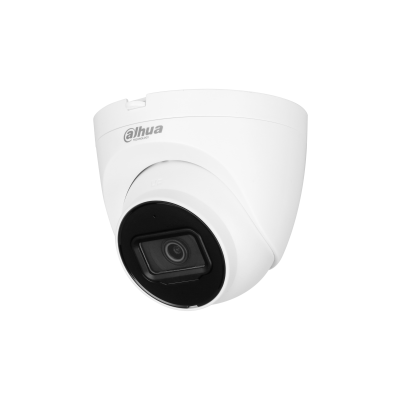

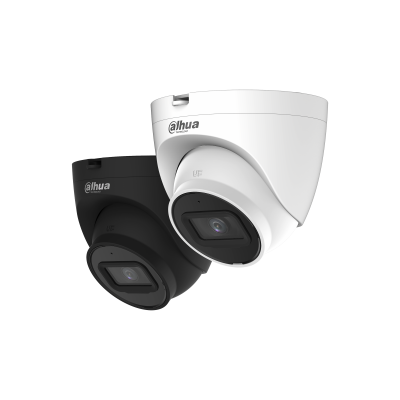

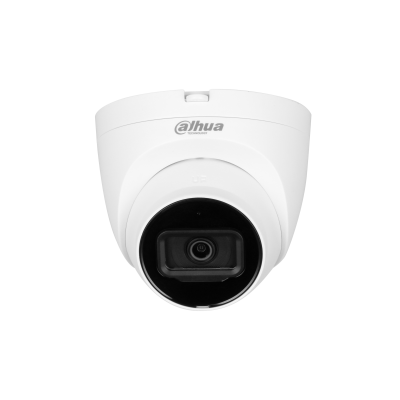

Dahua IPC-HDW2441T-S
4MP IR Fixed-focal Eyeball WizSense Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.9″ CMOS, progressive scan Resolusi maks: 2688 × 1520 @20 fps Mendukung 2560 × 1440 @25/30 fps Min. iluminasi: 0.006 lux (Color), 0.0006 lux (B/W), 0 lux (IR on) S/N Ratio: > 56 dB |
| Lensa & Sudut Pandang | Fixed-focal: 2.8 mm / 3.6 mm Aperture: F1.6 FOV: 2.8 mm (H 95° × V 52° × D 114°) FOV: 3.6 mm (H 78° × V 41° × D 94°) Fokus terdekat: 0.9 m (2.8 mm) / 1.6 m (3.6 mm) Mount: M12 |
| IR / Pencahayaan | 1 IR LED bawaan Jarak iluminasi: hingga 30 m Kontrol IR: Auto / Manual |
| Video & Kompresi | Kompresi: H.265, H.264 (H.264H/H.264B), MJPEG (substream) Smart Codec: H.265+, H.264+ Main stream: 2688×1520 @1–20 fps; 2560×1440 @1–25/30 fps Sub stream: 704×576 @1–25 fps / 704×480 @1–30 fps Dual-stream simultan |
| Fitur Gambar | WDR 120 dB, 3D NR, BLC, HLC ROI (4 area), rotasi 0°/90°/180°/270° Mirror, flip, watermark digital White Balance: Auto / Manual |
| Intelligent & Deteksi | Intrusion & Tripwire dengan klasifikasi manusia/kendaraan SMD Plus (Smart Motion Detection) Smart Search (dengan NVR) |
| Audio & Alarm | Built-in Mic Event: Motion, tampering, audio detection, no SD card, SD full/error, network disconnect, IP conflict, illegal access, voltage abnormal |
| Jaringan & Protokol | 1 × RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTP/RTSP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, NTP, Multicast, P2P Interoperabilitas: ONVIF Profile S/T/G, CGI, SDK/API User simultan: hingga 6 (36 Mbps total) |
| Penyimpanan | Micro SD/SDHC/SDXC hingga 256 GB Dukungan FTP / SFTP |
| Daya & Konsumsi | 12 VDC ±30% / PoE (802.3af) Konsumsi normal: ~2.5 W (12 VDC) / ~3.3 W (PoE) Konsumsi maksimal: ~4.2 W (12 VDC) / ~5.1 W (PoE) |
| Lingkungan & Proteksi | Suhu operasi: –40 °C ~ +60 °C Kelembapan: ≤ 95% RH (non-condensing) Proteksi: IP67 |
| Dimensi & Berat | Dimensi: 10.09 × 10.99 × 10.99 cm (T × P × L) Berat bersih: ± 370 g Berat bruto: ± 560 g Material: Metal + plastik |
| Isi dalam Box | 1 × Kamera IPC-HDW2441T-S 1 × Bracket/dudukan Sekrup & fisher Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
