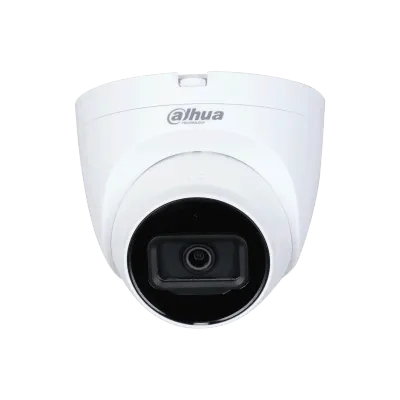

Dahua IPC-HDW2541T-S
5MP IR Eyeball WizSense Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.7″ CMOS, progressive scan Resolusi maks: 2592 × 1944 @20 fps Mendukung 2688 × 1520 @25/30 fps Min. iluminasi: 0.005 lux (Color), 0.0005 lux (B/W), 0 lux (IR on) S/N Ratio: > 56 dB |
| Lensa & Sudut Pandang | Fixed-focal: 2.8 mm / 3.6 mm Aperture: F1.6; Mount: M12 FOV (2.8 mm): H 97° × V 71° × D 129° FOV (3.6 mm): H 80° × V 57° × D 107° Fokus terdekat: 1.1 m (2.8 mm) / 1.7 m (3.6 mm) |
| IR / Pencahayaan | 1 IR LED built-in Jarak iluminasi: hingga 30 m Kontrol IR: Auto / Manual |
| Video & Kompresi | Codec: H.265, H.264 (H.264H/H.264B), MJPEG (substream) Smart Codec: H.265+, H.264+ Main stream: 2592×1944 @1–20 fps; 2688×1520 @1–25/30 fps Sub stream: 704×576 @1–25 fps / 704×480 @1–30 fps Stream capability: 3 streams Bitrate: H.264 (3–8192 kbps); H.265 (3–8192 kbps) |
| Fitur Gambar | WDR 120 dB, 3D NR, BLC, HLC ROI (hingga 4 area), rotasi 0°/90°/180°/270° Mirror, flip, digital watermarking White Balance: Auto / Manual Gain Control: Auto / Manual |
| Intelligent Monitoring | IVS: Intrusion & Tripwire (klasifikasi manusia/kendaraan) SMD Plus (Smart Motion Detection) Smart Search (dengan NVR) |
| Audio & Alarm | Built-in Mic (1 channel) Event abnormal: Motion, tampering, scene changing, audio detection, no SD, SD full/error, network disconnect, IP conflict, illegal access, voltage detection |
| Jaringan & Protokol | Port: 1 × RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTP/RTSP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, NTP, Multicast, P2P Interoperabilitas: ONVIF (Profile S/G/T), CGI, SDK/API User simultan: hingga 20 pengguna (64 Mbps total) |
| Penyimpanan | Slot Micro SD/SDHC/SDXC hingga 256 GB Dukungan FTP / SFTP / NAS |
| Daya & Konsumsi | Power: 12 VDC ±30% / PoE (802.3af) Konsumsi normal: ~3.8 W (12 VDC) / ~4.9 W (PoE) Konsumsi maksimal: ~6.1 W (12 VDC) / ~6.7 W (PoE) |
| Lingkungan & Proteksi | Suhu operasi: –40 °C ~ +60 °C Kelembapan: ≤ 95% RH (non-condensing) Proteksi: IP67 |
| Dimensi & Berat | Dimensi: 10.09 × 10.99 × 10.99 cm (T × P × L) Berat bersih: ± 392 g Berat bruto: ± 572 g Material: Metal + plastik |
| Isi dalam Box | 1 × Kamera IPC-HDW2541T-S 1 × Bracket/dudukan Sekrup & fisher Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
