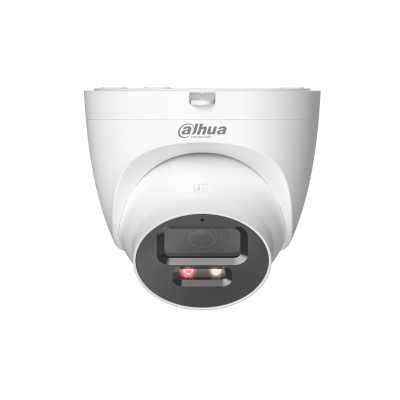

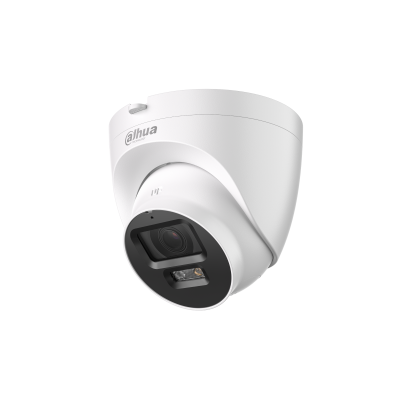

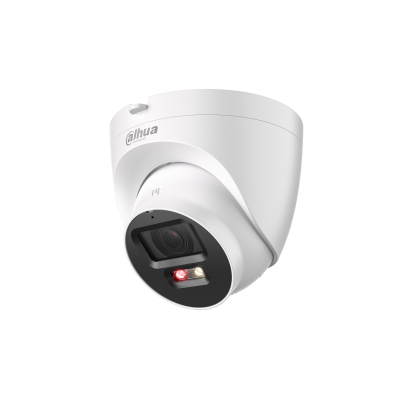

Dahua IPC-HDW2549T-S-PV
5MP Smart Dual Light Active Deterrence Eyeball WizSense Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | Sensor: 1/2.7″ CMOS Resolusi Maks: 5 MP (2960 × 1688) @ 20 fps; 4 MP (2688 × 1520) @ 25/30 fps ROM / RAM: 128 MB / 256 MB Shutter Elektronik: Auto / Manual, 1/3 s – 1/100,000 s Min. Illuminasi: 0.006 lux (warna) / 0.0006 lux (B/W) / 0 lux (IR on) S/N Ratio: > 56 dB Iluminator: IR & Warm Light, jarak hingga 30 m (IR) & 20 m (warm light) Kontrol Illuminator: Auto / Manual Sudut Penyesuaian: Pan 0°–360°, Tilt 0°–78°, Rotasi 0°–360° |
| Lensa & FOV | Tipe Lensa: Fixed-focal Mount: M12 Fokal: 2.8 mm / 3.6 mm Aperture Maks: F1.0 Field of View: • 2.8 mm: H 111.0°, V 58.5°, D 136.0° • 3.6 mm: H 91.9°, V 48.7°, D 107.7° Close Focus: 2.8 mm ~1.4 m; 3.6 mm ~2.0 m DORI (2.8 mm): 63.8 m / 25.5 m / 12.8 m / 6.4 m DORI (3.6 mm): 77.8 m / 31.1 m / 15.6 m / 7.8 m |
| Video & Kompresi | Stream: 2 streams Kompresi: H.265, H.264, H.264H, H.264B; sub stream MJPEG Smart Codec: Smart H.265+ / Smart H.264+ Frame Rate Utama: 5MP @1–20 fps; 4MP @1–25/30 fps Fitur Gambar: WDR 120 dB, BLC, HLC, 3D NR, ROI (4 area), Rotasi, Mirror, Privacy Masking (4 area) White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom Gain Control: Auto / Manual Motion Detection: 4 area |
| Intelligence & Alarm | IVS: Intrusion, Tripwire (klasifikasi manusia & kendaraan) SMD / SMD Plus Smart Search Event Alarm: no SD, SD full/error, network disconnect, IP conflict, illegal access, motion, tampering, tripwire, intrusion, audio, voltage detection Sound & Light Alarm: speaker + lampu One-tap Arming / Disarming |
| Audio | Mikrofon: built-in Speaker: built-in Kompresi: G.711a, G.711Mu, G.726, PCM |
| Jaringan & Protokol | Port: RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTP/RTSP, SMTP, FTP/SFTP, DHCP, DNS, DDNS, NTP, QoS, Multicast, ICMP, IGMP, PPPoE, Bonjour, P2P ONVIF (Profile S / G / T), CGI Kapasitas: hingga 20 user (bandwidth total 48 Mbps) |
| Penyimpanan | Micro SD: hingga 256 GB Dukungan: FTP, SFTP, NAS Software: Smart PSS, DSS, DMSS |
| Catu Daya & Konsumsi | Daya: 12 VDC / PoE (802.3af) Konsumsi: Basic 2.2 W (DC) / 2.9 W (PoE); Maks. 8.8 W (DC) / 10.4 W (PoE) |
| Lingkungan & Proteksi | Suhu Operasi: –40 °C ~ +60 °C Kelembapan: ≤ 95% RH Proteksi: IP67 |
| Dimensi & Berat | Dimensi: 103.5 mm × Ø109.9 mm (≈10.35 × 10.99 × 10.99 cm) Berat Bersih: 0.39 kg Berat Kotor: 0.57 kg |
| Material & Struktur | Casing: Inner metal + cover plastik Desain: Eyeball dome, tahan cuaca |
