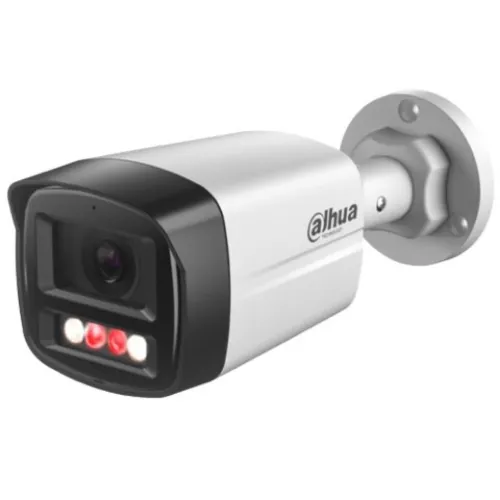

Dahua DH-IPC-HFW1239TL1-A-IL
2MP Full-color Smart Dual Light IR Bullet Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.8″ CMOS, progressive scan Resolusi maksimal 1920 × 1080 (2MP) @25/30 fps Min. iluminasi: 0.01 lux (warna), 0 lux dengan LED aktif Shutter: 1/3 – 1/100,000 s S/N Ratio: > 56 dB |
| Lensa & Sudut Pandang | Lensa tetap: 2.8 mm / 3.6 mm (opsional) Aperture: F1.6 Sudut pandang (2.8 mm): H 106° × V 57° × D 127° Sudut pandang (3.6 mm): H 86° × V 46° × D 102° Fokus terdekat: 0.5 m (2.8 mm) / 0.8 m (3.6 mm) Jarak DORI (2.8 mm): Deteksi 45 m, Observasi 18 m, Recognize 9 m, Identify 4.5 m |
| Video & Kompresi | Kompresi: H.265, H.264, MJPEG (substream) Smart Codec: H.265+, H.264+ Dual-stream simultan Bitrate: 32 kbps – 6144 kbps Mode Hari/Malam: Auto (ICR) / Warna / B/W Fitur: DWDR, 3D NR, HLC, BLC, ROI, flip, mirror, watermark digital |
| Pencahayaan | Smart Dual Light: IR + White LED Jarak IR: hingga 30 m Jarak White LED: hingga 30 m Mode: IR / Warm / Smart (auto switching) |
| Audio & Deteksi | Built-in Mic untuk audio Deteksi abnormalitas: motion detection, video tampering, audio detection, network disconnection, IP conflict, illegal access Mendukung Human Detection |
| Jaringan | Port: 1 × RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTSP/RTP, SMTP, FTP, DHCP, NTP, DDNS Interoperabilitas: ONVIF (Profile S/G), CGI, P2P Akses pengguna: hingga 10 user simultan |
| Daya | Power: 12 VDC ±30% / PoE (802.3af) Konsumsi daya: < 6.5 W |
| Lingkungan & Proteksi | Suhu operasi: –30 °C ~ +60 °C Kelembapan: ≤ 95% RH (non-condensing) Proteksi: IP67 – tahan debu & air |
| Dimensi & Berat | Dimensi: 24.0 cm × 7.0 cm × 7.0 cm (P × L × T) Berat bersih: ± 490 g Berat bruto (kemasan): ± 650 g |
| Isi dalam Box | 1 × Kamera DH-IPC-HFW1239TL1-A-IL 1 × Bracket / dudukan Sekrup & fisher untuk pemasangan Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
