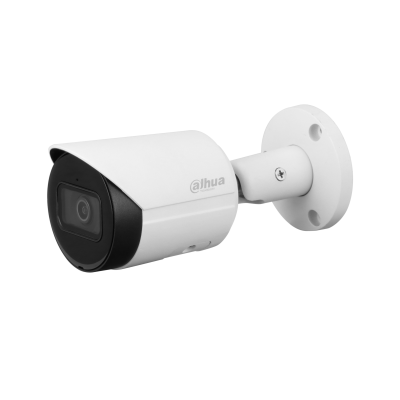

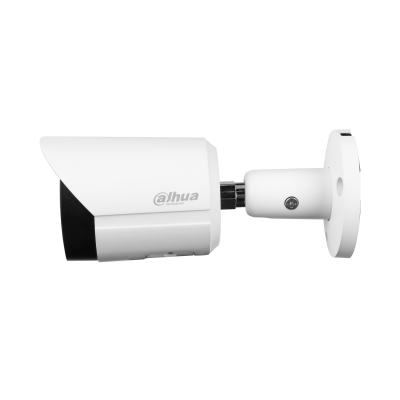

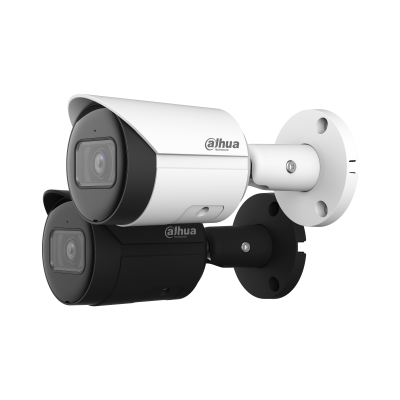

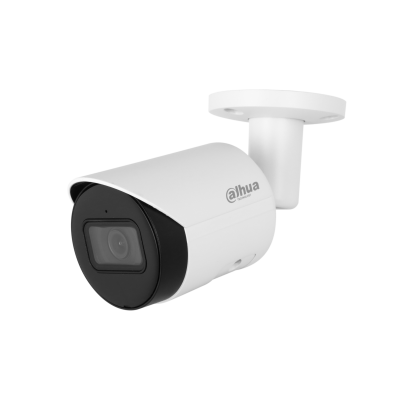

Dahua DH-IPC-HFW2241S-S
2MP IR Bullet Network Camera – WizSense Series
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.8″ CMOS, progressive scan Resolusi: 1920 × 1080 (2MP) @25/30 fps Min. iluminasi: 0.002 lux (warna), 0.0002 lux (B/W), 0 lux (IR on) Shutter: 1/3 – 1/100,000 s S/N Ratio: > 56 dB |
| Lensa & Sudut Pandang | Lensa tetap: 2.8 mm / 3.6 mm (opsional) Aperture: F1.6 Sudut pandang (2.8 mm): H 107° × V 56° × D 127° Sudut pandang (3.6 mm): H 88° × V 44° × D 105° Fokus terdekat: 0.7 m (2.8 mm) / 1.3 m (3.6 mm) |
| Video & Kompresi | Kompresi: H.265, H.264 (H.264H/H.264B), MJPEG (substream) Smart Codec: H.265+, H.264+ Mainstream: 1080p (1–25/30 fps) Substream: 704×576 @25 fps / 704×480 @30 fps Bitrate: H.264 (32 kbps–6144 kbps), H.265 (12 kbps–6144 kbps) Dukungan resolusi tambahan: 1.3M, 720p, D1, VGA, CIF |
| Penerangan / IR | IR LED built-in Jarak iluminasi: hingga 30 m Kontrol IR: Auto / Manual |
| Fitur Gambar | WDR 120 dB, 3DNR, BLC, HLC ROI (4 area), flip, mirror, rotasi 0°/90°/180°/270° White balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional |
| Audio & Alarm | Built-in Mic Kompresi audio: G.711a, G.711µ, PCM, G.726 Event alarm: Motion, tampering, network disconnect, IP conflict, illegal access, no SD card, SD full/error, tripwire, intrusion, SMD, tegangan abnormal |
| Intelligent Monitoring | IVS: Intrusion & Tripwire (klasifikasi manusia & kendaraan) Smart Search (kolaborasi dengan NVR) SMD Plus |
| Jaringan | Port: 1 × RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTSP/RTP, SMTP, FTP, DHCP, NTP, DDNS, P2P Interoperabilitas: ONVIF (Profile S/G/T), CGI, SDK, API Akses pengguna: hingga 6 user (36 Mbps total) |
| Penyimpanan | Slot MicroSD hingga 256 GB Penyimpanan eksternal: FTP, SFTP |
| Daya | 12 VDC ±30% / PoE (802.3af) Konsumsi: Normal 2.1 W (12 VDC) / 2.4 W (PoE) Maksimal: 4.2 W (12 VDC) / 5.1 W (PoE) |
| Lingkungan & Proteksi | Suhu operasi: –40 °C ~ +60 °C Kelembapan: ≤ 95% RH Proteksi: IP67 tahan debu & air |
| Dimensi & Berat | Dimensi: 16.6 × 7.0 × 7.0 cm (P × L × T) Berat bersih: ± 480 g Berat bruto (kemasan): ± 590 g Material: Metal casing |
| Isi dalam Box | 1 × Kamera DH-IPC-HFW2241S-S 1 × Bracket/dudukan Sekrup & fisher Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
