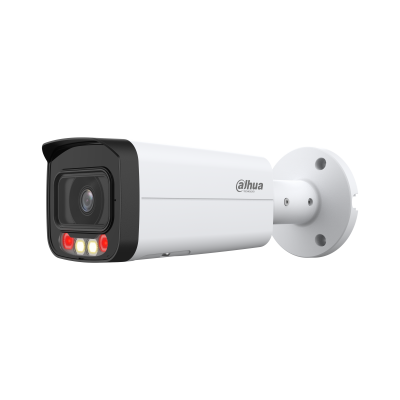

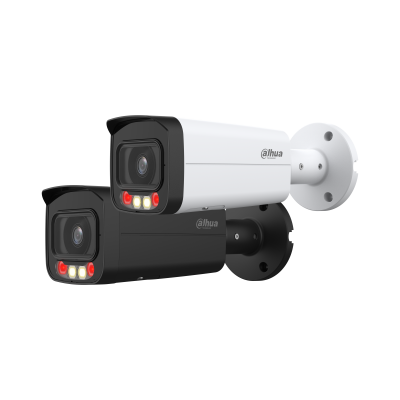

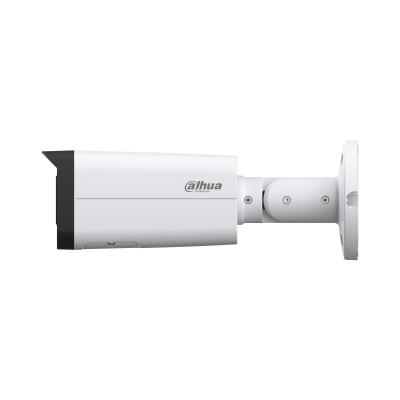

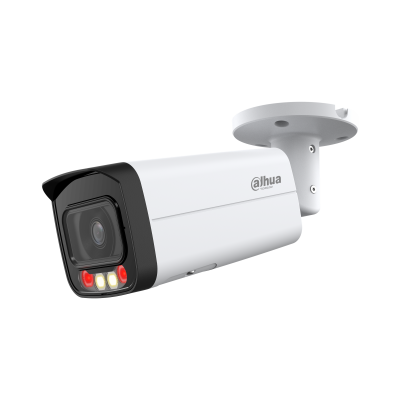

Dahua IPC-HFW2249T-AS-IL
2MP Smart Dual Light IR/Warm Light Bullet WizSense Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.8″ CMOS, progressive scan Resolusi maks: 1920 × 1080 (2MP) @25/30 fps Shutter: Auto/Manual 1/3 s – 1/100,000 s Min. iluminasi: 0.002 lux (Color, F1.6, 30 IRE); 0.0002 lux (B/W, F1.6, 30 IRE); 0 lux (LED aktif) S/N Ratio: > 56 dB |
| Lensa & Sudut Pandang | Fixed-focal; opsi: 3.6 mm / 6 mm / 8 mm; aperture F1.6; mount M12 FOV: 3.6 mm (H 84° × V 44° × D 105°); 6 mm (H 54° × V 29° × D 63°); 8 mm (H 42° × V 23° × D 47°) Jarak fokus terdekat: 1.3 m (3.6 mm); 2.6 m (6 mm); 4.0 m (8 mm) |
| Iluminator (Smart Dual Light) | Warm Light + IR LED (masing-masing 2 LED) Jarak IR hingga 60 m; Warm Light hingga 50 m Mode: Auto / Manual (switching pintar) |
| Video & Kompresi | Kompresi: H.265, H.264 (H.264H/H.264B), MJPEG (substream) Smart Codec: Smart H.265+, Smart H.264+ Main stream: 1080p @1–25/30 fps Sub stream: 704×576 @1–25 fps / 704×480 @1–30 fps Dual-stream; CBR/VBR; Bitrate video: H.264 (32–6144 kbps), H.265 (12–6144 kbps) |
| Fitur Gambar | WDR 120 dB, 3D NR, BLC, HLC ROI (hingga 4 area), rotasi 0°/90°/180°/270°, mirror/flip, privacy mask (4 area) White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional custom Digital watermarking |
| Intelijen & Deteksi | Perimeter Protection (IVS): Intrusion & Tripwire dengan klasifikasi manusia/kendaraan SMD Plus (Smart Motion Detection), Smart Search (dengan NVR) Event abnormal: motion, video tampering, scene changing, audio detection, no SD, SD full/error, network disconnect, IP conflict, illegal access, voltage detection |
| Audio & Alarm | Built-in Mic; Audio I/O: 1 in, 1 out (RCA); Alarm I/O: 1 in, 1 out Audio codec: G.711a / G.711µ / G.726 / PCM |
| Jaringan & Protokol | 1 × RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, ARP, RTP/RTSP/RTCP/RTMP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, NTP, Multicast, ICMP, IGMP, P2P Interoperabilitas: ONVIF Profile S/G/T, CGI, SDK/API Pengguna simultan: hingga 6 (total bandwidth 36 Mbps) |
| Penyimpanan | Slot Micro SD/SDHC/SDXC hingga 256 GB Dukungan penyimpanan eksternal: FTP, SFTP |
| Daya & Konsumsi | 12 VDC ±30% / PoE (802.3af) Konsumsi dasar (typ.): 1.6 W (12 VDC) / 2.1 W (PoE) Konsumsi maksimum: 5.8 W (12 VDC) / 6.9 W (PoE) |
| Lingkungan & Proteksi | Suhu operasi: –40 °C ~ +60 °C; Kelembapan ≤ 95% RH (non-condensing) Proteksi: IP67; IK10 (opsional); Anti-corrosion level: Low |
| Dimensi & Berat | Dimensi: 23.85 × 9.07 × 9.07 cm (P × L × T) — 238.5 × 90.7 × 90.7 mm Berat bersih: ± 0.72 kg; Berat bruto: ± 0.95 kg Material casing: Metal (outdoor) |
| DORI (3.6 mm / 6 mm / 8 mm) | 3.6 mm: 58.9 m / 23.6 m / 11.8 m / 5.9 m (Detect/Observe/Recognize/Identify) 6 mm: 85.5 m / 34.2 m / 17.1 m / 8.5 m 8 mm: 121.3 m / 48.5 m / 24.3 m / 12.1 m |
| Isi dalam Box | 1 × Kamera IPC-HFW2249T-AS-IL
1 × Bracket/dudukan |
