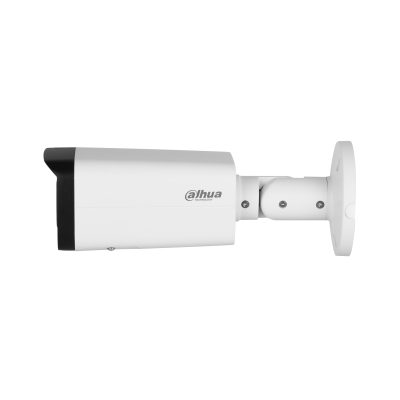

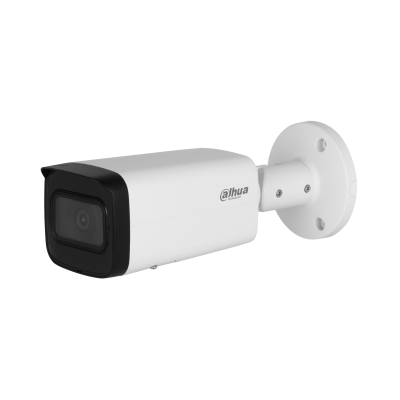

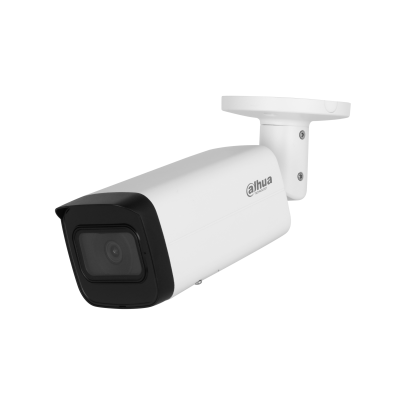

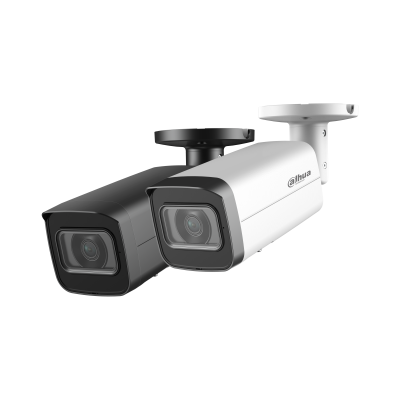

Dahua IPC-HFW2441T-AS
4MP IR Fixed-focal Bullet WizSense Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.9″ CMOS, progressive scan Resolusi maks: 2688 × 1520 @20 fps Mendukung 2560 × 1440 @25/30 fps Min. iluminasi: 0.006 lux (Color), 0.0006 lux (B/W), 0 lux (IR on) S/N Ratio: > 56 dB |
| Lensa & Sudut Pandang | Fixed-focal 3.6 mm / 6 mm / 8 mm Aperture: F1.6 FOV (3.6 mm): H 84° × V 42° × D 101° Fokus terdekat: 1.7 m (3.6 mm); 3.2 m (6 mm); 4.6 m (8 mm) Mount: M12 |
| IR / Pencahayaan | 4 IR LED bawaan Jarak iluminasi: hingga 80 m Kontrol IR: Auto / Manual |
| Video & Kompresi | Kompresi: H.265, H.264 (H.264H/H.264B), MJPEG (substream) Smart Codec: H.265+, H.264+ Main stream: 2688×1520 @1–20 fps, 2560×1440 @1–25/30 fps Sub stream: 704×576 @1–25 fps / 704×480 @1–30 fps Bitrate: H.264 (32–6144 kbps), H.265 (12–6144 kbps) Dual-stream simultan |
| Fitur Gambar | WDR 120 dB, 3D NR, BLC, HLC ROI (4 area), rotasi gambar 0°/90°/180°/270° Mirror, flip, watermark digital White Balance: Auto / Manual |
| Intelligent & Deteksi | Intrusion & Tripwire dengan klasifikasi Manusia/Kendaraan SMD Plus (Smart Motion Detection) Smart Search (dengan NVR) |
| Audio & Alarm | Built-in Mic Audio I/O: 1 input, 1 output Alarm I/O: 1 input, 1 output Event: Motion, tampering, audio detection, no SD card, SD full/error, network disconnect, IP conflict, illegal access, voltage detection |
| Jaringan & Protokol | 1 × RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTP/RTSP/RTCP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, NTP, Multicast, P2P Interoperabilitas: ONVIF Profile S/G/T, CGI, SDK/API User simultan: hingga 6 (36 Mbps total) |
| Penyimpanan | Micro SD/SDHC/SDXC hingga 256 GB Dukungan penyimpanan eksternal: FTP, SFTP |
| Daya & Konsumsi | 12 VDC ±30% / PoE (802.3af) Konsumsi normal: ~2.1 W (12 VDC) / ~2.4 W (PoE) Konsumsi maksimal: ~4.2 W (12 VDC) / ~5.1 W (PoE) |
| Lingkungan & Proteksi | Suhu operasi: –40 °C ~ +60 °C Kelembapan: ≤ 95% RH (non-condensing) Proteksi: IP67; IK10 (opsional) |
| Dimensi & Berat | Dimensi: 16.6 × 7.0 × 7.0 cm (P × L × T) Berat bersih: ± 480 g Berat bruto: ± 590 g Material: Metal casing |
| Isi dalam Box | 1 × Kamera IPC-HFW2441T-AS 1 × Bracket/dudukan Sekrup & fisher Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
