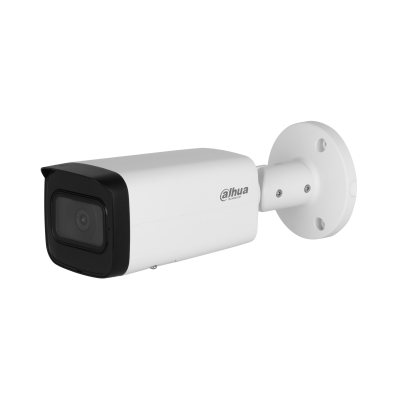

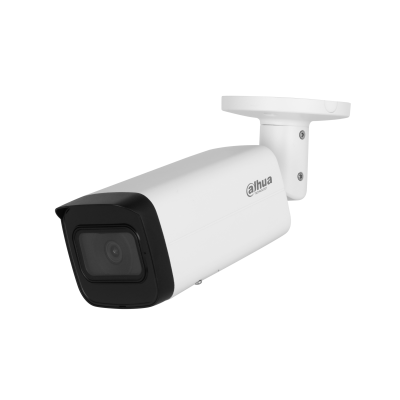

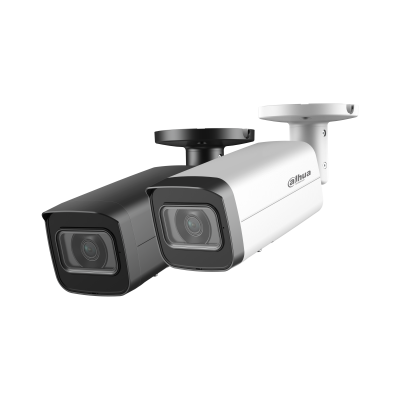

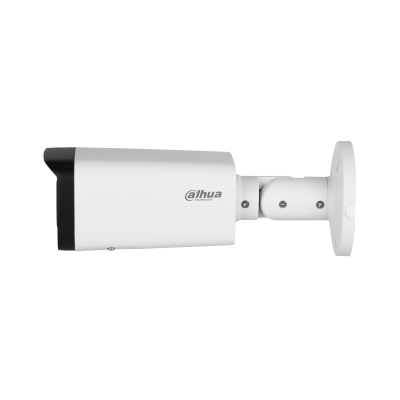

Dahua IPC-HFW2541T-AS
5MP IR Fixed-focal Bullet WizSense Network Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | 1/2.7″ CMOS, progressive scan Resolusi maks: 2960 × 1668 @20 fps Mendukung: 2688 × 1520 @25/30 fps Min. iluminasi (tipikal): Color 0.006 lux; B/W 0.0006 lux; 0 lux (IR on) S/N ratio: > 56 dB |
| Lensa & Sudut Pandang | Fixed-focal: 3.6 mm / 6 mm / 8 mm (opsional) Aperture: F1.6; Mount: M12 FOV (3.6 mm): H ~92° × V ~45° × D ~110° FOV (6 mm): H ~57° × V ~30° × D ~65° FOV (8 mm): H ~43° × V ~24° × D ~48° Fokus terdekat: 1.7 m (3.6 mm) / 3.2 m (6 mm) / 4.6 m (8 mm) |
| IR / Pencahayaan | IR LED built-in (multi LED), jarak hingga 80 m Kontrol: Auto / Manual |
| Video & Kompresi | Codec: H.265, H.264 (H.264H/H.264B), MJPEG (substream) Smart Codec: H.265+, H.264+ Main stream: 2960×1668 @1–20 fps; 2688×1520 @1–25/30 fps Sub stream: 704×576 @1–25 fps / 704×480 @1–30 fps Bitrate: H.264 (32–6144 kbps); H.265 (12–6144 kbps) 2 stream capability; CBR/VBR |
| Fitur Gambar | WDR 120 dB, 3D NR, BLC, HLC ROI (hingga 4 area), rotasi 0°/90°/180°/270°, mirror/flip Digital watermarking; White Balance & Gain: Auto/Manual Day/Night: Auto (ICR) / Color / B/W |
| Intelligent Monitoring | IVS: Intrusion & Tripwire (klasifikasi manusia/kendaraan) SMD Plus (Smart Motion Detection) Smart Search (dengan NVR) |
| Audio & Alarm | Built-in Mic Audio I/O: 1 in, 1 out Alarm I/O: 1 in, 1 out Event: Motion, tampering, audio detection, no SD, SD full/error, network disconnect, IP conflict, illegal access, voltage detection |
| Jaringan & Protokol | 1 × RJ-45 (10/100 Base-T) Protokol: IPv4/IPv6, HTTP/HTTPS, TCP/UDP, RTSP/RTP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, NTP, Multicast, ICMP, IGMP, P2P Interoperabilitas: ONVIF Profile S/G/T, CGI, SDK/API |
| Penyimpanan | Slot Micro SD/SDHC/SDXC hingga 256 GB Dukungan penyimpanan eksternal: FTP, SFTP |
| Daya & Konsumsi | 12 VDC ±30% / PoE (802.3af) Konsumsi tipikal rendah–sedang; lebih tinggi saat IR aktif penuh |
| Lingkungan & Proteksi | Suhu operasi: –40 °C ~ +60 °C; Kelembapan ≤ 95% RH (non-condensing) Proteksi: IP67; IK10 (opsional) |
| Dimensi & Berat | Dimensi: 16.6 × 7.0 × 7.0 cm (P × L × T) Berat bersih: ± 480 g; Berat bruto: ± 590 g Material: Metal casing (outdoor) |
| Isi dalam Box | 1 × Kamera IPC-HFW2541T-AS 1 × Bracket/dudukan Sekrup & fisher pemasangan Quick Start Guide & kartu garansi Waterproof cable cap / rubber plug |
