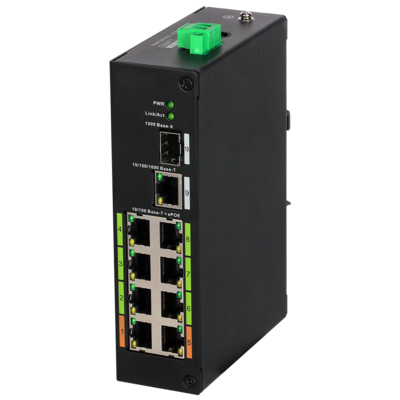

Dahua DH-LR2110-8ET-120
8-Port ePoE Switch – L2 Managed, Long Distance Transmission, Hi-PoE Support
| Kategori | Spesifikasi |
|---|---|
| Ethernet Port | • 1 × 1000 Base-X (SFP) • 1 × 10/100/1000 Base-T (RJ-45 uplink) • 8 × 10/100 Base-T (PoE / ePoE) |
| PoE / Power | • Mendukung IEEE802.3af, IEEE802.3at, Hi-PoE • Port 1 & 5: hingga 60 W • Port lain: hingga 30 W • Total PoE budget: 120 W |
| Performa Switching | • Switching Capacity: 8,8 Gbps • Forwarding Rate: 4,17 Mpps • Packet Buffer: 2,75 Mb • MAC Table: 8K entri • Flow Control: enable by default |
| Transmission Performance | • Hingga 800 m via CAT5e/CAT6 dengan ePoE • 100 Mbps: hingga 300 m • 10 Mbps: hingga 800 m • PoE Load Capacity bervariasi (7 W – 25,5 W) tergantung jarak |
| Lingkungan Operasional | • Suhu kerja: –30 °C ~ +65 °C • Kelembapan: 10% – 90% RH (non-condensing) • Proteksi petir: Common mode 4 kV, Differential mode 2 kV |
| Daya | • Input: DC 48–57 V power adapter |
| Dimensi & Berat | • Ukuran: 150 × 100 × 42 mm • Berat bersih: 0,59 kg (590 g) |
| Tambahan | • Indikator LED: IEEE / E100 / E10 • Desain suhu lebar (industrial wide temperature) • Dukungan aksesoris SFP module & EoC converter |
