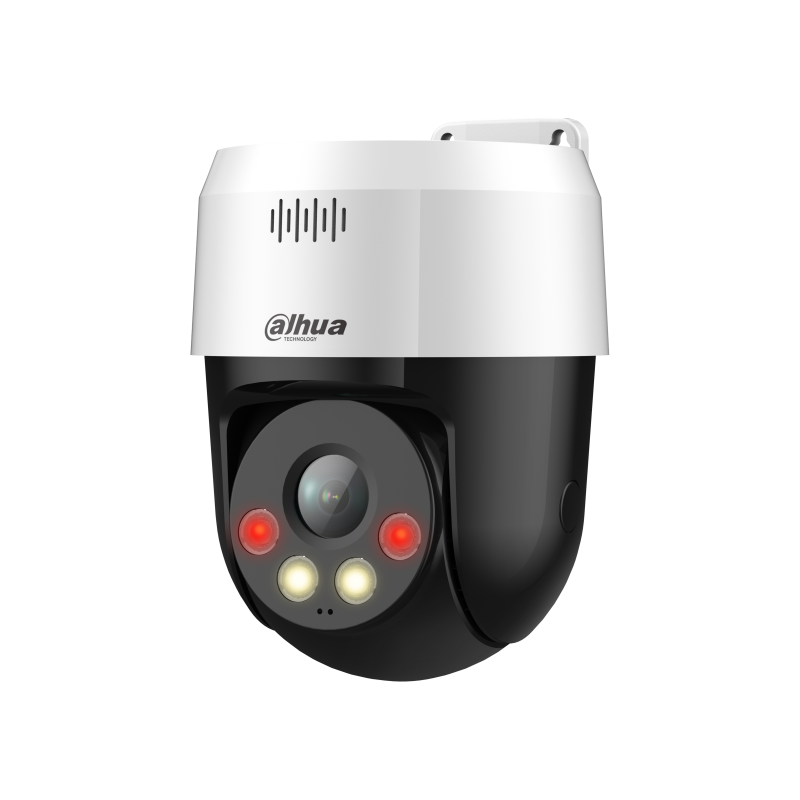

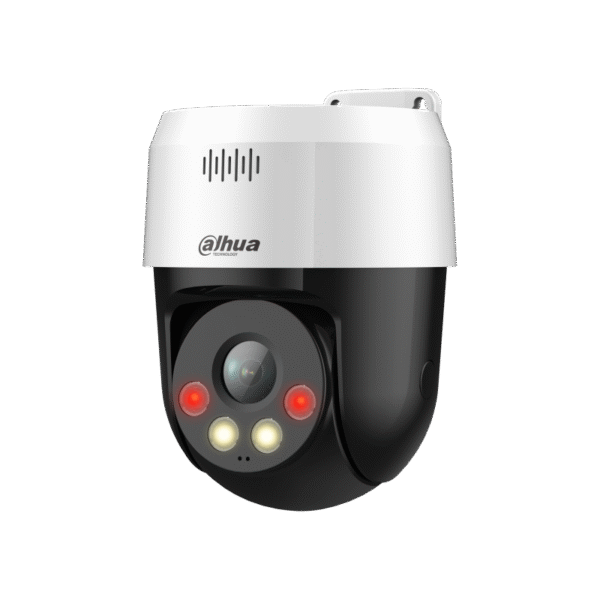

Dahua DH-SD2A300NB-GNY-A-PV
3MP Smart Dual Light PT Camera
| Kategori | Spesifikasi |
|---|---|
| Kamera / Sensor | Sensor: 1/2.8″ CMOS Resolusi: 3 MP (2304 × 1296) ROM / RAM: 128 MB / 128 MB Shutter: 1 s – 1/100,000 s Sistem Pemindaian: Progressive Min. Illuminasi: 0.05 lux (warna) / 0.005 lux (B/W) Iluminator: Warm light & IR hingga 30 m Mode Illumination: Auto / Manual / Off Jumlah Illuminator: 2 IR LED + 2 warm LEDs |
| Lensa & Field of View | Fokal: 4.0 mm, aperture F2.0 Sudut Pandang: H = 86.8°, V = 47.1°, Diagonal = 102.2° Fokus Dekat: 0.6 m Iris: fixed DORI: Deteksi 53.6 m / Observe 21.4 m / Recognize 10.7 m / Identify 5.4 m |
| PTZ / Gerakan | Pan: 0° – 345° Tilt: 0° – +80° Kecepatan Manual: Pan 0.1°–74°/s, Tilt 0.1°–36.4°/s Kecepatan Preset: Pan 0.1°–62°/s, Tilt 0.1°–36.3°/s Preset: 300 Power-off Memory: Ya Idle Motion: preset mode |
| Kecerdasan / Event | IVS: Tripwire, Intrusion Deteksi Manusia / Kendaraan: ya SMD 3.0 (Smart Motion Detection) Active Deterrence: lampu peringatan + sirine, pengaturan durasi 5–30 detik & frekuensi suara: 1 alarm bawaan + hingga 10 suara custom kontrol volume & repetisi suara |
| Video & Streaming | Kompresi: H.264H, H.264B, Smart H.265+, H.265, Smart H.264+ Dua stream (main + sub) Resolusi: 3M, 1080p, 960p, 720p, D1, CIF Frame rate: 3M / 1080p / 1.3M / 720p @ 1–25/30 fps Bit rate: H.264 (88–8192 kbps), H.265 (35–8192 kbps) Fitur Gambar: BLC, WDR (DWDR), HLC, 2D NR / 3D NR, ROI, defog, rotasi 180°, privacy masking S/N Ratio ≥ 55 dB |
| Audio & Alarm I/O | Kompresi Audio: PCM, G.711a / μ, G.726, AAC Input Audio: 1 kanal (mic internal) Output Audio: 1 kanal (speaker internal) Alarm I/O: Deteksi motion / tampering / audio / jaringan / SD error / IP conflict |
| Jaringan & Storage | Port: RJ-45 (10/100 Base-T) Protokol: HTTP, HTTPS, TCP/IP, RTSP, RTP, SMTP, FTP, DHCP, DNS, DDNS, IPv4/IPv6, ONVIF, P2P User Maks: 20 (bandwidth total 64 Mbps) Storage: Micro SD hingga 256 GB, FTP / NAS |
| Daya & Konsumsi | Catu Daya: 12 V DC / 1.5 A ±10% atau PoE (802.3af) Konsumsi: Basic 3.5 W; Maksimal 9 W (dengan illuminator aktif) |
| Lingkungan & Proteksi | Suhu Operasional: –30 °C hingga +55 °C Kelembapan: ≤ 95% RH (tanpa kondensasi) Proteksi: IP66, proteksi petir / lonjakan tegangan |
| Dimensi & Berat | Dimensi: 140.5 mm × Ø111.0 mm Berat Bersih: ± 0.5 kg Berat dengan kemasan: ± 1.0 kg |
| Material & Struktur | Casing: Logam tahan cuaca Desain: PT turret / mini PT outdoor |
