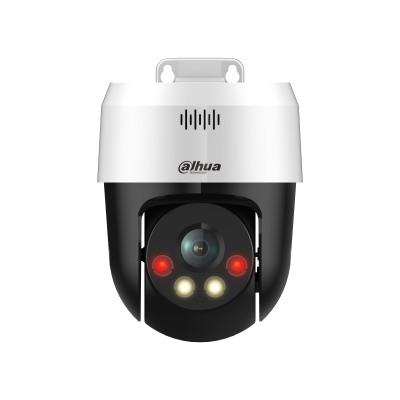

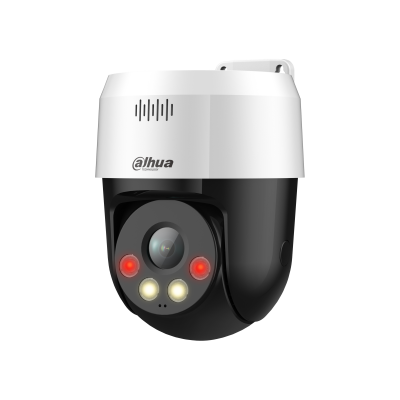

Dahua DH-SD2A500NB-GNY-A-PV
5MP Smart Dual Light PT Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor / Gambar | Sensor: 1/2.8″ STARVIS™ CMOS Resolusi Maksimal: 2560 × 1920 (5 MP) ROM / RAM: 128 MB / 128 MB Shutter Elektronik: 1 s hingga 1/100,000 s Pemindaian: Progressive Min. Illuminasi: 0.05 lux (warna, 30 IRE) / 0.005 lux (B/W) 0 lux ketika illuminator aktif Iluminator: Warm light & IR, hingga 30 m Kontrol Illuminator: Manual / Auto / Off Jumlah LED: 2 IR + 2 warm light |
| Lensa & Bidang Pandang (FOV) & DORI | Fokal tetap: 4.0 mm, aperture F1.6 Field of View: H 80.4°, V 58.1°, Diagonal 104.8° Fokus Dekat: 0.3 m Iris: Fixed DORI: • Deteksi: 77.4 m • Observasi: 31.0 m • Recognisi: 15.5 m • Identifikasi: 7.74 m |
| PT / Gerakan | Pan: 0° – 345° Tilt: 0° – +80° Kecepatan Manual: Pan 0.1°–74°/s, Tilt 0.1°–36.4°/s Kecepatan Preset: Pan 0.1°–62°/s, Tilt 0.1°–36.3°/s Preset: 300 Memory saat mati daya: Ya Idle Motion: Preset mode |
| Kecerdasan / Event & Active Deterrence | Deteksi Cerdas: manusia / kendaraan (Tripwire, Intrusion) SMD (Smart Motion Detection 3.0) Siren & Light Alarm: • Lampu peringatan (warm light) dengan durasi 5 s – 30 s • Suara alarm: 1 suara bawaan + hingga 10 suara custom • Volume dapat disesuaikan, jumlah pemutaran dapat disesuaikan |
| Video & Streaming | Kompresi: Smart H.265+, H.265, Smart H.264+, H.264, H.264H/H.264B, MJPEG Aliran: 2 streams Resolusi yang Didukung: 5MP, 4M, 3M, 1080p, 720p, D1, CIF Frame Rate: main stream 5MP / 4M / 3M / 1080p @ 1–25/30 fps Substream: D1 / VGA / CIF @ 1–25/30 fps Bit Rate: H.264: 104 – 8192 kbps; H.265: 41 – 8192 kbps Mode Hari / Malam: Auto (ICR) / Warna / B/W Fitur Gambar: BLC, WDR, HLC, 2D/3D NR, Defog, Rotasi 180°, Privacy Masking S/N Ratio ≥ 55 dB |
| Audio / Alarm I/O | Kompresi Audio: PCM, G.711a / µ, G.726, AAC Input Audio: 1 kanal (mic internal) Output Audio: 1 kanal (speaker internal) Alarm Linkage: capture, preset, rekam, relay, kirim email, lampu & suara Event Alarm: motion, tampering, audio detect, network disconnect, IP conflict, SD error, memory full |
| Jaringan & Storage | Port: RJ-45 (10/100 Base-T) Protokol: HTTP, HTTPS, TCP, UDP, RTSP, RTP, SMTP, FTP, DHCP, DNS, DDNS, IPv4/IPv6, SSL, NTP, QoS, IGMP, ICMP, ARP Interoperabilitas: CGI, SDK, ONVIF (Profil S & T) Maks pengguna: 20 (bandwidth total 64 Mbps) Penyimpanan: Micro SD ≤ 256 GB, FTP, NAS / NVR |
| Daya & Konsumsi | Catu Daya: 12 V DC / 1.5 A atau PoE (802.3af) Konsumsi: Dasar ~ 3.5 W; Maksimal ~ 9 W (dengan illuminator aktif) |
| Lingkungan & Proteksi | Suhu Operasional: –30 °C sampai +55 °C Kelembapan: ≤ 95% RH Proteksi: IP66; TVS 2000 V proteksi petir / lonjakan |
| Dimensi & Berat | Dimensi: 140.5 mm × Ø111.0 mm Berat Bersih: 0.5 kg Berat Gross: 1.0 kg |
| Material & Struktur | Casing: logam tahan cuaca Desain: turret / mini PT outdoor |
