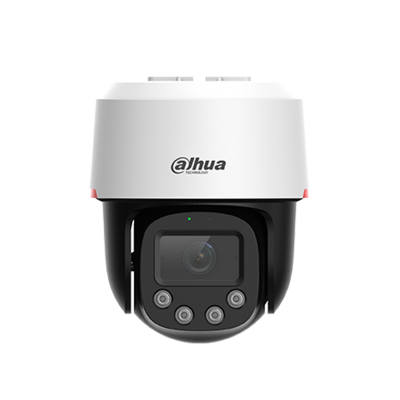

Dahua DH-SD2C400NA-B-PV-PRO
4MP WizColor WizSense Network PT Camera
Audio & Alarm I/ODaya & KonsumsiCatu Daya: 12 VDC, 1 A ±10% atau PoE (802.3af)
Konsumsi: Basic ~ 3.6 W; Maks: ~ 9.5 W (illuminator aktif + PTZ)Dimensi & Berat
Konsumsi: Basic ~ 3.6 W; Maks: ~ 9.5 W (illuminator aktif + PTZ)Dimensi & Berat
| Kategori | Spesifikasi |
|---|---|
| Kamera / Sensor | Sensor: 1/1.8″ CMOS Resolusi Maks: 2560 × 1440 (4 MP) ROM / RAM: 256 MB / 256 MB Shutter Elektronik: 1 s – 1/30,000 s Sistem Pemindaian: Progressive Min. Illuminasi: 0.0005 lux @ F1.0 (warna, 30 IRE) Illuminator: Warm light, hingga 30 m Kontrol Illuminator: Manual / Auto / Off Jumlah Illuminator: 4 LED (warm) |
| Lensa & Field of View (FOV) / DORI | Lensa: 4 mm (fixed) Aperture Maksimal: F1.0 Sudut Pandang: H 97°, V 52°, Diagonal 114° Focus Close Distance: 2.6 m DORI (Detect / Observe / Recognize / Identify): • Detect: 70.34 m • Observe: 28.14 m • Recognize: 14.07 m • Identify: 7.03 m |
| PTZ / Gerakan | Pan: 0° – 345° Tilt: 0° – +90° Kecepatan Manual: Pan 0.1° – 34.5°/s; Tilt 0.1° – 36.4°/s Kecepatan Preset: Pan 0.1° – 33.8°/s; Tilt 0.1° – 36.3°/s Preset: 300 Tour: 8 (maks 32 preset per tour) Power-off Memory: Ya Idle Motion: Preset / Tour |
| AI & Fitur Cerdas | Deteksi Cerdas: human / vehicle (Tripwire, Intrusion) SMD 3.0 Auto Tracking Lite Perimeter Protection Tour / Preset Patrol Fitur Alarm Aktif: lampu peringatan (warm light) |
| Video & Streaming | Kompresi: Smart H.265+, H.265, Smart H.264+, H.264B/H.264H/M / MJPEG Aliran: 2 streams (utama + sub) Resolusi Supported: 4M, 1080p, 720p, D1, CIF Frame Rate: Main stream 4M / 1080p / 720p @ 1–25/30 fps Bit Rate: H.264: 3,072 – 15,104 kbps; H.265: 1,280 – 9,216 kbps Mode Hari / Malam: Warna / B/W / Auto (ICR) Fitur Gambar: BLC, DWDR, HLC, NR, Defog, Rotate 180°, Privacy Masking S/N Ratio: ≥ 55 dB |
| Kompresi Audio: PCM, G.711a / µ Mikrofon: built-in Speaker: built-in Linkage Alarm: capture, preset, recording, relay, lampu & suara, kirim email Event Alarm: motion, tampering, audio detection, network disconnection, SD error, IP conflict |
|
| Jaringan & Penyimpanan | Port: RJ-45 (10/100 Base-T) Protokol: HTTP, HTTPS, TCP/IP, UDP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, IPv4/IPv6, SSL, NTP, QoS, UPnP, ICMP, IGMP, ARP, RTCP, RTMP, SNMP, PPPoE Interoperabilitas: ONVIF (Profile S / G / T), CGI, SDK Streaming: Unicast / Multicast Max Users: 20 (bandwidth total 64 Mbps) Storage: Micro SD up to 256 GB, FTP, NAS |
| Lingkungan & Proteksi | Suhu Operasi: –30 °C sampai +55 °C Kelembapan: ≤ 95% RH Proteksi: IP66; TVS 2000 V surge protection Struktur: logam tahan cuaca |
| Dimensi: 153.5 mm × Ø129.3 mm Berat Bersih: ~ 0.66 kg Berat Kotor (kemasan): ~ 1.0 kg |
|
| Material & Struktur | Casing: logam Desain: PT turret / mini PT outdoor |
