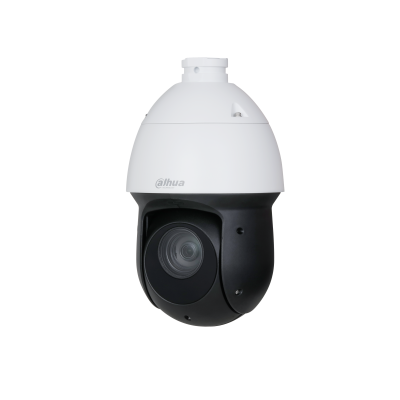

Dahua DH-SD3E405DB-GNY-A-PV1
4MP 5× TiOC WizSense PTZ Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | Sensor: 1/2.8″ STARVIS™ CMOS Resolusi Maksimal: 2560 × 1440 (4MP) ROM: 128 MB / RAM: 512 MB Shutter: 1/1 s – 1/30,000 s Sistem Pemindaian: Progressive Min. Illuminasi: 0.005 lux (warna), 0.0005 lux (B/W) pada F1.6 0 lux saat IR aktif Jarak IR: 50 m Jarak Warm Light: 30 m Kontrol Illuminator: Zoom prioritas / Manual / Auto / Off Jumlah Illuminator: 2 LED IR, 2 LED Warm, 1 Red Warning, 1 Blue Warning |
| Lensa & Zoom | Fokal: 2.7 mm – 13.5 mm Aperture: F1.6 – F3.0 Sudut Pandang: H 94.9° → 30.1°; V 51° → 17.1°; D 112.3° → 34.6° Zoom Optik: 5× Fokus: Auto / Semi-auto / Manual Fokus Dekat: 1.5 m Iris Control: Tetap (fixed) DORI: Deteksi ~270 m, Observasi ~106.6 m, Recognisi ~54 m, Identifikasi ~27 m |
| Gerakan PTZ | Pan: 0° – 355° Tilt: –15° hingga +90°, auto-flip 180° Kecepatan Manual: Pan 0.1°/s – 36°/s; Tilt 0.1°/s – 25.8°/s Kecepatan Preset: Pan 35.7°/s; Tilt 27.1°/s Preset: 300 Tour: 8 (maks 32 preset per tour) Pola (Pattern): 5 Scan: 5 Memory saat mati daya: Ya Idle Motion: Preset / Tour |
| Intelligence & Deteksi | Perimeter Protection: Tripwire, Intrusion, Crossing Fence, Loitering, Abandoned/Missing Object, Fast Moving, Parking, People Gathering Face Detection: mendukung deteksi wajah & snapshot, ekstraksi atribut wajah Auto-Tracking Lite: ya SMD (Smart Motion Detection) 3.0: filter objek tidak relevan Active Deterrence: lampu peringatan merah/biru + suara alarm (11 tipe) dengan durasi & frekuensi dapat disesuaikan |
| Video & Streaming | Kompresi: Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG Stream: 3 stream Resolusi Didukung: 4MP, 3MP, 1080p, 1.3MP, 720p, D1, VGA, CIF Frame Rate Utama: 4MP/3MP/1080p @ 1–25/30 fps Subs stream 1: D1 / CIF / VGA @ 1–25/30 fps Subs stream 2: 720p @ 1–25/30 fps Bit Rate: H.264: 96 – 14,848 kbps; H.265: 38 – 8,960 kbps Midgard Gambar: BLC, WDR 120 dB, HLC, 2D/3D NR, Defog, EIS, Rotasi 180°, Privacy Masking hingga 24 area S/N Ratio ≥ 55 dB |
| Audio & I/O | Kompresi: G.711a, G.711Mu, G.726, MPEG2-L2, G.722.1, PCM Input Audio: 1 kanal (LINE IN atau built-in mic) Output Audio: 1 kanal (LINE OUT atau built-in speaker) Alarm I/O: 1 input / 1 output Linkage Alarm: capture, preset, tour, rekam, relay, kirim email, lampu & suara |
| Jaringan & Protokol | Port: RJ-45 (10/100 Base-T) Protokol: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, RTP, UDP, SMTP, FTP/SFTP, SNMP, DHCP, DNS, ARP, RTCP, SSL, NTP, QoS, IGMP, ICMP, DDNS, UPnP, P2P Interoperabilitas: CGI, SDK, ONVIF (Profil S / G / T) Metode Streaming: unicast / multicast User Maks: 20 (bandwidth total: 64 Mbps) Penyimpanan: Micro SD hingga 512 GB, FTP / NAS |
| Daya & Konsumsi | Catu Daya: 12 VDC, 2 A ± 10% atau PoE+ (802.3at) Konsumsi Daya: Basis ~ 4.5 W, Maksimum ~ 15 W (dengan illuminator, PTZ, speaker) |
| Lingkungan & Proteksi | Suhu Operasional: –30 °C hingga +60 °C Kelembapan: ≤ 95% RH Proteksi: IP66, proteksi petir / lonjakan (TVS 6000 V) Casing: bahan logam tahan cuaca |
| Dimensi & Berat | Dimensi: 142.6 mm × 140 mm × 236.1 mm Berat Bersih: 1.5 kg Berat Kotor: 2.1 kg |
| Material & Struktur | Casing: logam Desain: sistem PTZ outdoor, kompatibel dengan pemasangan tahan cuaca |
