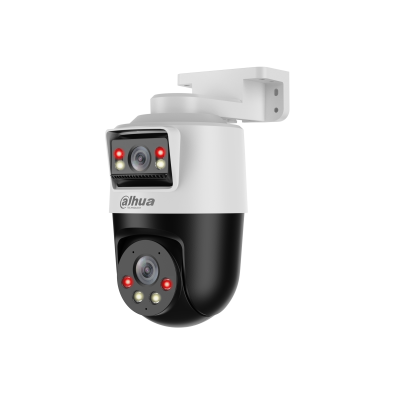

Dahua DH-SDT2A200-2F-NB-A-PV
2MP + 2MP Smart Dual Light WizSense X-Spans PT Camera
| Kategori | Spesifikasi |
|---|---|
| Sensor & Gambar | • 2 × 1/2.8″ CMOS (fixed & PT lens) • Resolusi Maks: 1920 × 1080 (2MP + 2MP) • ROM/RAM: 128 MB / 128 MB • Shutter: 1 s – 1/100,000 s • Min. Illuminasi: 0.05 lux (warna), 0.005 lux (B/W), 0 lux (IR/White Light aktif) • Iluminator: IR + warm light, jarak hingga 30 m • LED: 2 IR + 2 warm light per lensa |
| Lensa & FOV | • Fokal: 4 mm, F1.6 • FOV: H 85.7°, V 47.1°, D 100° • Fokus Dekat: 0.8 m • DORI: Deteksi 53.6 m | Observasi 21.2 m | Pengenalan 10.7 m | Identifikasi 5.3 m |
| PT & Gerakan | • Fixed Lens: Pan manual 0°–326°, Tilt –10° hingga +15° • PT Lens: Pan 0°–350°, Tilt 0°–90° • Kecepatan Pan/Tilt: hingga 36°/s • Preset: 50 | Tour: 1 (max 16 preset) • Power-off Memory & Idle Motion: didukung |
| AI & Alarm Aktif | • Human & Vehicle Detection • SMD 3.0 (Smart Motion Detection) • Perimeter Protection: Tripwire, Intrusion • Active Deterrence: lampu peringatan + suara alarm • Suara: 3 built-in + hingga 10 custom • Lampu peringatan: durasi 5–30 s, intensitas adjustable |
| Video & Kompresi | • Kompresi: H.265+, H.265, H.264+, H.264, MJPEG • Stream: 2 (main + sub) • Resolusi: 1080p, 720p, 640×360, QVGA • Frame Rate: 1–25/30 fps • Bit Rate: H.264 (48–4096 kbps), H.265 (19–4096 kbps) • Fitur: DWDR, BLC, HLC, 2D/3D NR, Defog, Rotate, Privacy Mask |
| Audio & I/O | • Mic & speaker internal (two-way talk) • Audio: PCM, G.711a/µ • Alarm linkage: capture, record, preset, email, lampu & suara |
| Jaringan & Penyimpanan | • Port: RJ-45 (10/100 Base-T) • Protokol: HTTP, HTTPS, TCP/IP, UDP, RTSP, FTP, DHCP, DNS, DDNS, IPv4/6, ONVIF, P2P • Max User: 20 (total bandwidth 64 Mbps) • Penyimpanan: Micro SD hingga 256 GB, FTP, NAS |
| Catu Daya & Konsumsi | • Power: 12 VDC / 1.5 A atau PoE (802.3af) • Konsumsi: dasar ~4 W | maks ~12 W (PTZ + iluminator aktif) |
| Lingkungan & Proteksi | • Suhu kerja: –20 °C ~ +50 °C • Kelembapan: ≤95% RH • Proteksi: IP66, TVS 2000 V surge |
| Dimensi & Berat | • Dimensi: 159.4 × 110.0 × 210.1 mm (P × L × T) • Berat bersih: ±1.0 kg • Berat bruto: ±1.5 kg |
| Material & Struktur | • Casing logam tahan cuaca • Desain: dome PT outdoor (X-Spans Series) |
