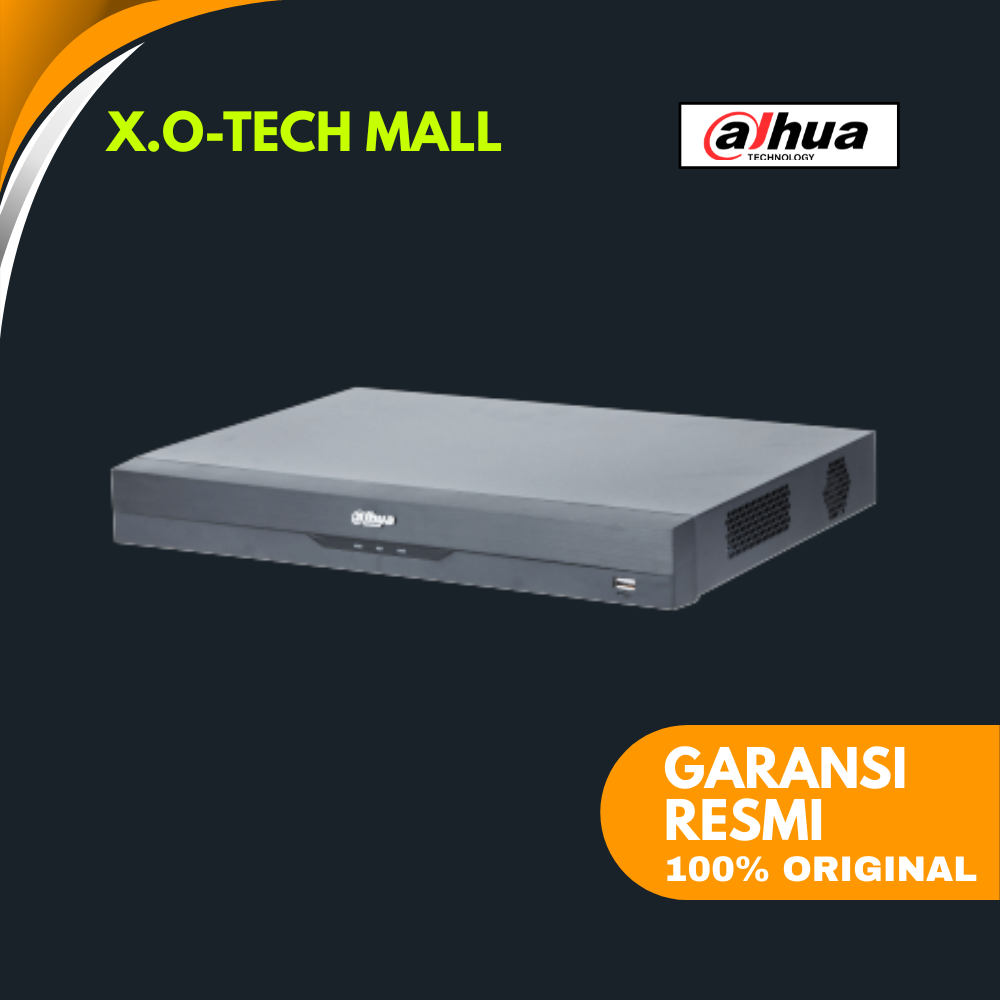

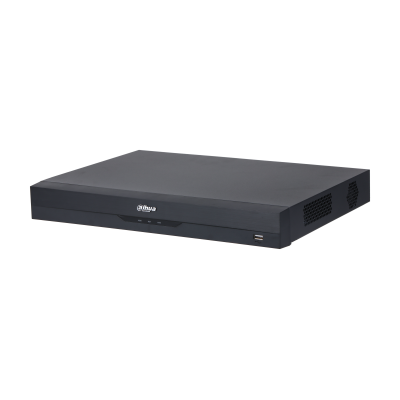

Dahua DH-XVR4232AN-I
32 Channels Penta-brid 1080N/720P 1U 2HDDs WizSense Digital Video Recorder
| Kategori | Spesifikasi |
|---|---|
| Sistem | Prosesor: Industrial-grade processor · OS: Embedded Linux · Antarmuka: Web & Local GUI |
| AI / WizSense | SMD Plus by Recorder: hingga 16 channel (filter manusia & kendaraan) untuk kurangi false alarm. AI-Coding: efisiensi bit-rate & storage tanpa mengorbankan kompatibilitas decoding. |
| Input Video | 32 × BNC (default CVI; auto-detect HDCVI/AHD/TVI/CVBS). Dukungan sinyal analog: 1080p@25/30fps, 720p@25/30fps (CVI/AHD/TVI). |
| Input IP & Bandwidth | Hingga 16 channel IPC (analog dapat dikonversi ke IP). Bandwidth masuk/rekam/keluar: 128 Mbps / 128 Mbps / 128 Mbps. |
| Kompresi & Bitrate | Video: AI Coding, H.265+, H.265, H.264+, H.264 · Audio: G.711A, G.711u, PCM. Video bitrate: 32 kbps – 6144 kbps per channel · Sampling audio: 8 kHz/16-bit. |
| Perekaman | Main stream: Ch1 1080N/720p (1–25/30fps), Ch2–32 1080N/720p (1–15fps); 960H/D1/CIF (1–25/30fps). Sub-stream: CIF (1–7fps). Mode: General, Motion Detection, Intelligent, Alarm · Dual-stream: Ya. |
| Playback & Backup | Playback simultan: 1/4/9/16 · Mode: Instant/General/Event/Tag/Smart · Backup: USB & Network. |
| Output & Tampilan | Video out: 1 × HDMI, 1 × VGA, 1 × TV. Resolusi HDMI/VGA: 1920×1080, 1280×1024, 1280×720. Multi-screen: 1/4/8/9/16/25/36. |
| Audio | Input: 1 × RCA eksternal + 32-ch BNC (Audio over Coax) · Output: 1 × RCA. Two-way talk: Ya (berbagi dengan audio input channel pertama). |
| Jaringan | 1 × RJ-45 (10/100/1000 Mbps). Protokol: HTTP/HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. Interoperabilitas: ONVIF 21.06, CGI · Mobile: iOS/Android · Browser: Chrome, IE9+, Firefox. |
| Penyimpanan & Port | 2 × SATA (maks 16 TB, 8 TB/HDD; kapasitas maksimum tergantung suhu). USB: 2 port (depan USB 2.0, belakang USB 3.0). RS-485: 1 · TV out: 1. |
| Daya & Konsumsi | Catu daya: 12 VDC, 4 A · Konsumsi: < 12 W (tanpa HDD). |
| Dimensi, Berat & Lingkungan | Dimensi produk: 375 × 289.4 × 53 mm (1U). Dimensi kemasan: 433 × 141 × 366 mm. Berat: Net 1.92 kg · Gross 3.09 kg. Operasional: −10 °C ~ +55 °C · RH 0–90% · Instalasi: Desktop. |
| Sertifikasi | CE-LVD (EN/IEC 60950-1), CE-EMC (EN 61000-3-2/-3, EN 55032, EN 50130, EN 55024), FCC Part 15 Subpart B. |
