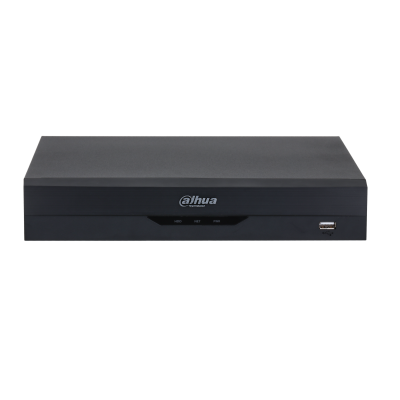

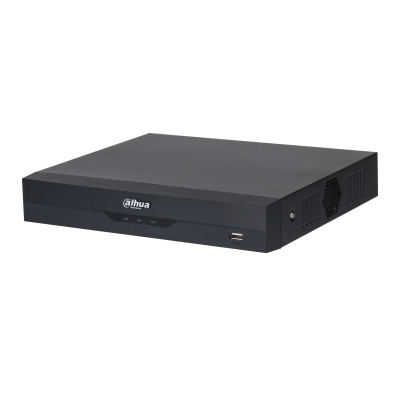

Dahua DH-XVR5108HS-4KL-I3 (V2)
8CH Penta-brid 4K-N / 5MP Compact 1U 1HDD • WizSense DVR
| Kategori | Spesifikasi |
|---|---|
| Sistem & Umum | Prosesor industrial-grade • OS: Embedded Linux • Interface: Web & GUI lokal |
| AI & Fitur Cerdas | QuickPick 2.0: 2 channel analog Privacy Protection: 1 channel (masking wajah real time) SMD Plus: 8 channel analog atau hingga 16 channel via kamera Perimeter Protection: 8 channel (tripwire & intrusion) Face Recognition: 2 channel analog AI Coding: 8 channel AI Video Quality Analytics: 8 channel (brightness, color cast, defocus, overexposure, contrast, B/W) Scene Changing: 1 channel • Irregular Black Block Masking: 1 channel • ePTZ: 1 channel |
| Video / Audio | Analog input: 8 × BNC (HDCVI / AHD / TVI / CVBS, auto-detect) IP input: hingga 16 channel (8 default + 8 konversi) Incoming bandwidth: hingga 128 Mbps Video output: 1 × HDMI (hingga 4K) + 1 × VGA Audio: 1 × RCA in, 1 × RCA out + coaxial audio (8 channel) Two-way talk: ya (berbagi input dengan channel 1) |
| Kompresi & Streaming | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 Dual-stream: ya Bitrate video: 32 kbps – 6144 kbps |
| Rekaman & Playback | Mode rekam: General, Alarm, Motion, Intelligent, POS Playback: 1/4/8/9 layar Mode: instant, general, event, tag, smart Backup: USB device & jaringan |
| Alarm & Linkage | Jenis alarm: motion detection, video loss, tampering, kamera offline, disk error, jaringan, external alarm Linkage: rekam, snapshot, preset, email, buzzer, log, IPC alarm output, audio |

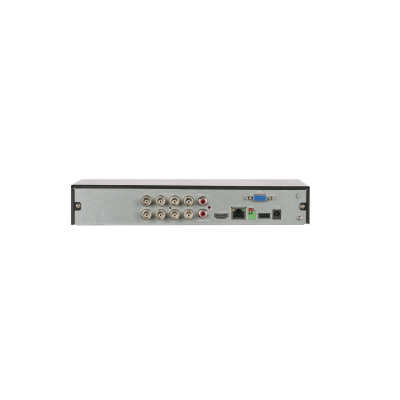

| Port & Antarmuka | 1 × SATA (hingga 16 TB) 2 × USB (1 depan USB 2.0, 1 belakang USB 3.0) 1 × RS-485 • 1 × RJ-45 (10/100/1000 Mbps) 1 × HDMI + 1 × VGA |
| Daya & Lingkungan | Power: 12 VDC / 2 A Konsumsi: < 10 W (tanpa HDD) Suhu operasi: –10 °C ~ +55 °C Suhu penyimpanan: –20 °C ~ +60 °C Kelembapan: 10% – 90% RH (non-condensing) |
| Dimensi & Berat | Dimensi: 260 × 237.8 × 47.6 mm (26.0 × 23.8 × 4.8 cm) Berat bersih: ± 1.0 kg Berat kotor (paket): ± 1.4 kg |
| Sertifikasi | CE, FCC, EN 60950-1 / IEC 60950-1, EMC (EN 55032, EN 55024, EN 55035, EN 61000 series) Instalasi: desktop / rak |
