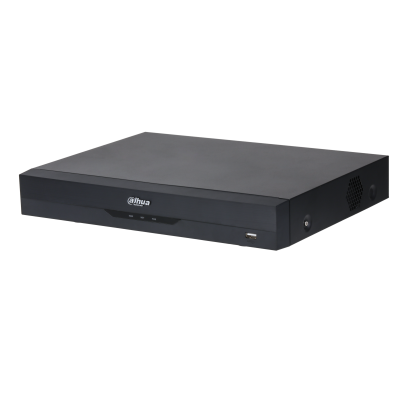

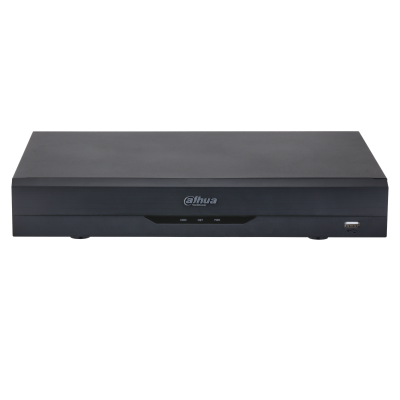

Dahua DH-XVR5116H-4KL-I3 (V2)
16CH Penta-brid 4K-N/5MP Mini 1U 1HDD • WizSense Digital Video Recorder
| Kategori | Spesifikasi |
|---|---|
| Sistem & Umum | Prosesor industrial-grade • OS: Embedded Linux • Antarmuka: Web & GUI lokal |
| AI & Fitur Cerdas | QuickPick 2.0: 2 channel (analog) Privacy Protection (masking/pemulihan wajah real-time): 1 channel SMD Plus: 16 channel by recorder • hingga 32 channel by camera Perimeter Protection (AI): Advanced Mode 2 channel (10 aturan/chan) • General Mode 8 channel (10 aturan/chan) Face Detection: 2 channel (hingga 12 gambar wajah/detik/chan), 6 atribut Face Recognition: 2 channel • database hingga 10 basis/20.000 gambar AI Coding: 16 channel • AI Video Quality Analytics: 16 channel (brightness, color cast, defocus, overexposure, contrast, B/W) Scene Changing: 1 channel • Irregular Black Block Masking: 1 channel • ePTZ: 1 channel |
| Video / Audio | Input analog: 16 × BNC (auto-detect HDCVI/AHD/TVI/CVBS) Input IP: hingga 32 channel (16 IP default + 16 konversi analog→IP), per channel hingga 8MP Bandwidth: incoming/recording/outgoing hingga 128 Mbps Output: 1 × HDMI (hingga 4K) + 1 × VGA Audio: 1 × RCA in, 1 × RCA out + coaxial audio 16 channel • Two-way talk (berbagi input kanal 1) |
| Kompresi & Streaming | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 • Dual-stream • Audio: G.711A, G.711U, PCM |
| Rekaman & Playback | Mode rekam: General, Alarm, Motion Detection, Intelligent, POS Playback: 1/4/9/16/25/36 tampilan (tergantung mode) • Instant, General, Event, Tag, Smart Catatan: Saat IP Extension aktif, fitur AI (ePTZ, Video Quality Analytics, Scene Changing, Face, SMD, Perimeter, QuickPick, Privacy Protection) non-aktif |
| Jaringan | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, FTP, DDNS, SNMP, P2P, IP Filter, Auto Registration, IP Search • Interoperabilitas: ONVIF (Profile T/S/G 24.06), CGI, SDK • Akses mobile: iOS & Android |

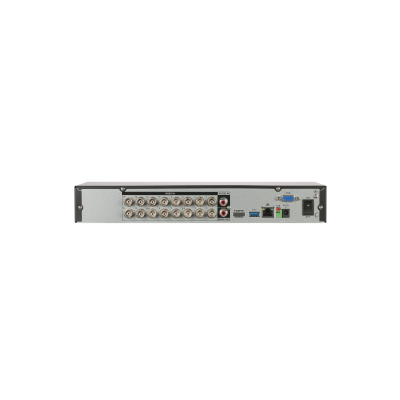

| Port & Antarmuka | Disk: 1 × SATA (hingga 16 TB, bergantung suhu lingkungan) USB: 2 port (depan USB 2.0, belakang USB 3.0) RS-485: 1 • HDMI: 1 • VGA: 1 • LAN: 1 × RJ-45 (10/100/1000 Mbps) |
| Daya & Lingkungan | Catu daya: 12 VDC, 3 A • Konsumsi: < 15 W (tanpa HDD) Operasi: –10 °C ~ +55 °C • Penyimpanan: –20 °C ~ +60 °C • Kelembapan: 10%–90% RH (non-condensing) |
| Dimensi & Berat | Dimensi produk: 325.0 × 257.1 × 55.0 mm (W × D × H) ≈ 32.5 × 25.71 × 5.5 cm Berat bersih: ± 1.30 kg • Berat kotor: ± 2.10 kg |
| Sertifikasi & Instalasi | CE, FCC, EMC sesuai standar terkait • Instalasi: desktop |
