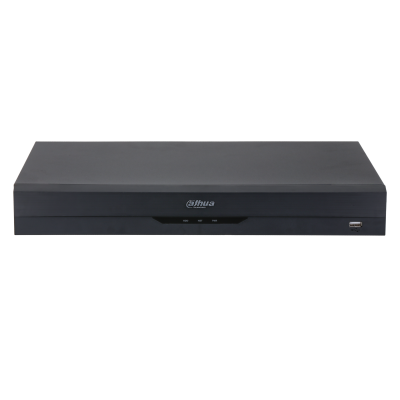

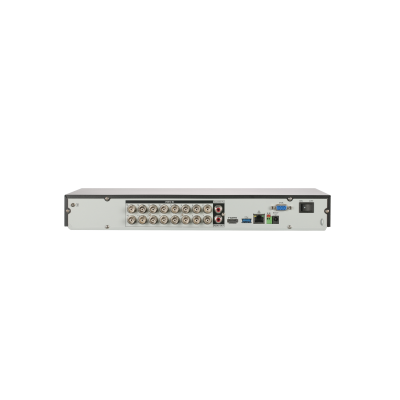

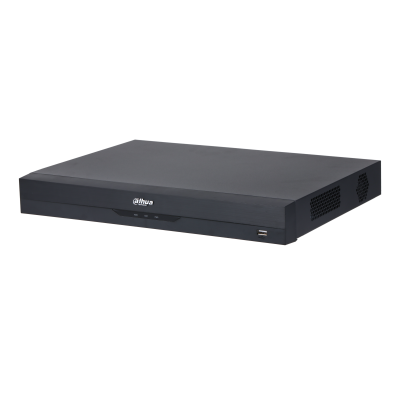

Dahua DH-XVR5216AN-4KL-I3 (V2)
16CH Penta-brid 4K-N / 5MP 1U 2HDDs • WizSense DVR
| Kategori | Spesifikasi |
|---|---|
| Sistem & Umum | Prosesor industrial-grade • OS: Embedded Linux • Antarmuka: GUI lokal & Web |
| AI & Fitur Cerdas | 2-channel QuickPick 2.0 (analog) 1-channel Privacy Protection (masking/restoring wajah real-time) 16-channel SMD Plus (analog) atau hingga 32-channel via kamera AI 8-channel Perimeter Protection (tripwire & intrusion) 2-channel Face Recognition (analog) dengan basis data 16-channel AI Coding (menghemat bandwidth & penyimpanan) AI Video Quality Analytics (16 channel: brightness, color cast, defocus, overexposure, contrast, B/W) Scene Changing: 1 channel • Irregular Black Block Masking: 1 channel • ePTZ: 1 channel |
| Video / Audio | Input analog: 16 × BNC (HDCVI / AHD / TVI / CVBS auto-detect) Input IP: hingga 32 channel (16 default + 16 analog→IP) Bandwidth masuk / rekam / keluaran: 128 Mbps Output video: 1 × HDMI + 1 × VGA Audio: 1 × RCA input, 1 × RCA output + audio over coax 16 channel Two-way talk: ya (audio input berbagi kanal 1) |
| Kompresi & Streaming | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 Dual-stream: ya Bitrate video: 32 kbps – 6144 kbps |
| Rekaman & Playback | Mode rekam: General, Alarm, Motion Detection, Intelligent, POS Playback: 1 / 4 / 8 / 9 / 16 mode Backup: USB device & jaringan Catatan: saat IP extension aktif, fitur AI (QuickPick, Face, SMD, Perimeter, etc.) non-aktif |
| Jaringan & Protokol | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, FTP, DDNS, SNMP, UPnP, IP Filter, Auto Registration, IP Search Kompatibilitas: ONVIF (Profile T / S / G), SDK, CGI Dukungan browser: Chrome, IE, Safari, Firefox, Edge Akses mobile: iOS & Android |
| Port & Penyimpanan | 2 × SATA HDD (masing-masing hingga 16 TB, tergantung suhu lingkungan) USB: 2 port (1 depan USB 2.0, 1 belakang USB 3.0) RS-485: 1 LAN: 1 × RJ-45 (10/100/1000 Mbps) Video output: HDMI 1, VGA 1 |
| Daya & Lingkungan | Catu daya: 12 VDC / 5 A Konsumsi: < 15 W (tanpa HDD) Suhu operasi: –10 °C ~ +55 °C Suhu penyimpanan: –20 °C ~ +60 °C Kelembapan: 10% – 90% RH (non-condensing) |
| Dimensi & Berat | Dimensi: 375.0 × 289.6 × 53.0 mm (W × D × H) Berat bersih: ± 1.80 kg Berat kotor (paket): ± 3.10 kg |
| Sertifikasi & Instalasi | CE, FCC, EN 60950-1, EN 55032, EN 55024, EN 55035, EN 61000 series Instalasi: Desktop / Rak |
