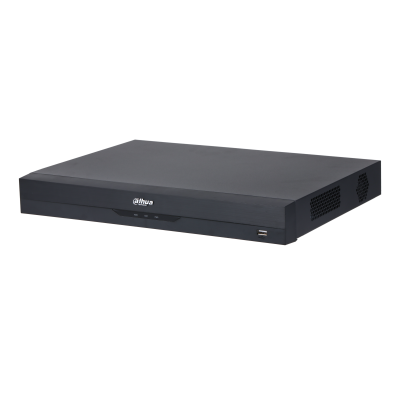

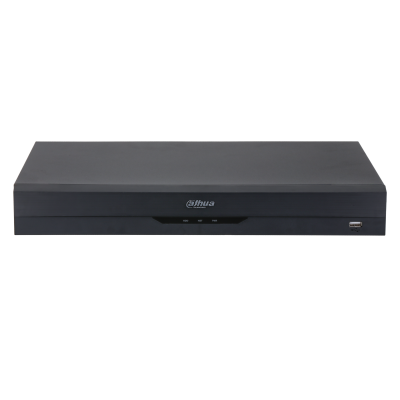

Dahua DH-XVR5216AN-5M-I3
16CH Penta-brid 5MP, 2HDD, AI Recorder
| Kategori | Spesifikasi |
|---|---|
| Sistem & Umum | Prosesor industrial-grade • Embedded Linux • Antarmuka GUI lokal & Web |
| AI & Analitik | 2-channel QuickPick 2.0 (analog) 16-channel SMD Plus (analog) atau up to 24-channel via kamera 4-channel Perimeter Protection (tripwire & intrusion) 2-channel Face Recognition / Face Comparison 16-channel AI Coding (hemat bandwidth & penyimpanan) Fitur tambahan kemungkinan: Scene Change, Black Block Masking, Video Quality Analytic |
| Video / Audio | Input analog: 16× BNC (HDCVI / AHD / TVI / CVBS) Input IP: hingga 24 channel, masing-masing sampai 6MP, dengan total bandwidth maksimum sekitar 128 Mbps Output: 1× HDMI + 1× VGA (hingga 4K atau 1080p tergantung model) Audio: 1× RCA in, 1× RCA out; dukungan audio over coax (16 kanal) |
| Kompresi & Streaming | Smart H.265+, H.265, Smart H.264+, H.264 • Dual-stream • Kompresi audio: G.711a/u, PCM |
| Rekaman & Playback | Mode rekaman: manual, alarm, deteksi gerak, cerdas, POS Playback: 1/4/9/16 layar, Instant, general, event, tag, smart mode Backup: via USB & jaringan |
| Jaringan & Protokol | HTTP / HTTPS, TCP/IP, IPv4 / IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, FTP, DDNS, SNMP, UPnP, dll. Dukungan ONVIF (Profile T / S / G) & integrasi multi-vendor Akses mobile: iOS & Android |

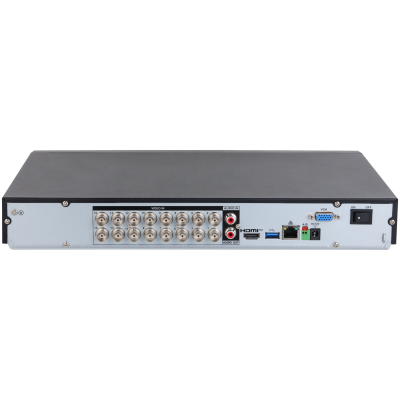

| Antarmuka & Eksternal | 2× SATA HDD (masing-masing hingga 8TB mungkin) 2× USB (depan & belakang) 1× RS-485 1× RJ-45 (10 / 100 / 1000 Mbps) 1× HDMI + 1× VGA |
| Daya & Lingkungan | Catu daya: 12 VDC / ~2 A Konsumsi daya: < 15 W (tanpa HDD) Operasional: –10 °C hingga +55 °C Kelembapan: 10% – 90% RH (non-condensing) |
| Dimensi & Berat | Sekitar 260.0 × 238.0 × 48.0 mm (≈ 26.0 × 23.8 × 4.8 cm) Berat: sekitar 1.0 kg (± 1000 g) tanpa HDD |
| Catatan & Fitur Tambahan | Kompatibel multi-format (HDCVI / AHD / TVI / CVBS / IP) Support IoT & POS Output HDMI kemungkinan mendukung 4K (tergantung firmware) |
