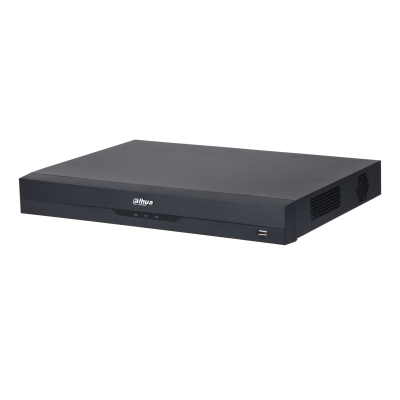

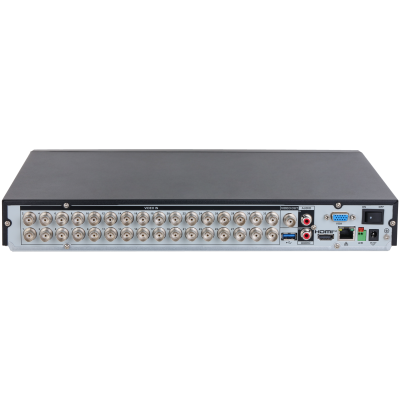

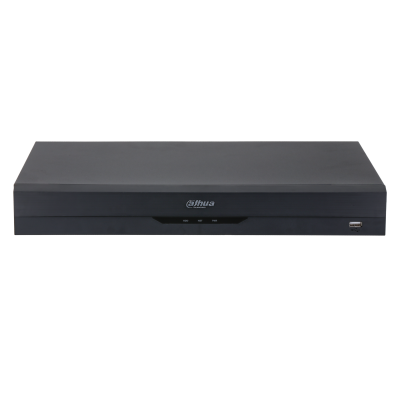

Dahua DH-XVR5232AN-5M-I3
32CH Penta-brid 5MP • 1U • 2HDDs • WizSense DVR
| Kategori | Spesifikasi |
|---|---|
| Sistem & Umum | Prosesor industrial-grade • Embedded Linux OS • Antarmuka GUI lokal & Web |
| AI & Analitik | QuickPick 2.0: 2 kanal SMD Plus: 32 kanal analog / 48 kanal by camera Perimeter Protection: 8 kanal (tripwire & intrusion) Face Recognition: 2 kanal, database hingga 10.000 wajah AI Coding: 16 kanal, hemat bandwidth & storage Video Quality Analytics, Scene Change, Black Block Masking support |
| Video / Audio | Input analog: 32× BNC (HDCVI / AHD / TVI / CVBS) Input IP: hingga 48 channel, max 6MP per channel Bandwidth masuk: hingga 192 Mbps Output: 1× HDMI (hingga 4K) + 1× VGA + 1× CVBS Audio: 1× RCA in, 1× RCA out, audio over coax (32 kanal) Two-way Talk support |
| Kompresi & Streaming | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 • Audio: G.711A/U, PCM |
| Rekaman & Playback | Mode rekaman: umum, alarm, deteksi gerak, cerdas, POS Playback: hingga 16 channel, instant, general, event, tag, smart Backup: USB & jaringan • Mendukung disk grouping |
| Jaringan & Protokol | Protokol: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, FTP, DDNS, SNMP, UPnP Kompatibilitas: ONVIF (Profile T/S/G), SDK, CGI • Akses mobile iOS & Android |
| Antarmuka & Penyimpanan | 2× SATA HDD hingga 8TB per HDD (maks 16TB) 2× USB (depan USB 2.0, belakang USB 3.0) 1× RS-485 • 1× RJ-45 (10/100/1000 Mbps) 1× HDMI + 1× VGA + 1× CVBS |
| Daya & Lingkungan | Power supply: DC 12V / 5A Konsumsi: < 17W (tanpa HDD) Suhu operasi: –10 °C ~ +55 °C Kelembapan: 10% – 90% RH (non-condensing) |
| Dimensi & Berat | Dimensi: 375 × 289 × 53 mm (37.5 × 28.9 × 5.3 cm) Berat: ± 1.9 kg (tanpa HDD) |
| Fitur Tambahan | Kompatibel multi-format (HDCVI / AHD / TVI / CVBS / IP) IoT & POS support Output HDMI mendukung 4K |
