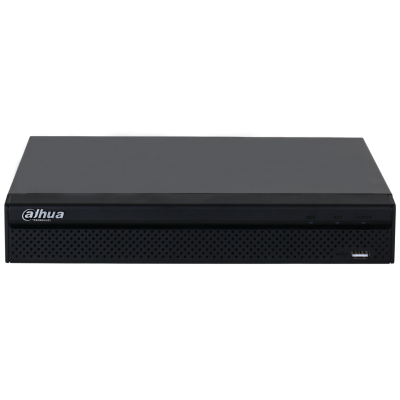

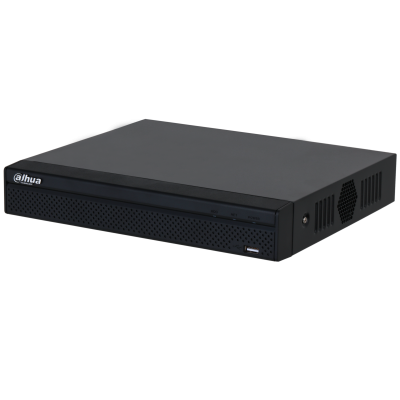

Dahua DHI-NVR4116HS-4KS3
16CH 4K Lite Network Video Recorder – 1 HDD Bay
| Kategori | Spesifikasi |
|---|---|
| Sistem & AI | • Prosesor: Embedded processor, OS: Embedded Linux • Antarmuka: GUI lokal & Web • AI by Recorder: 4CH SMD Plus • AI by Camera: Face Detection & Recognition, Perimeter Protection, SMD Plus, People Counting, Heat Map, Stereo Analysis • Fitur cepat: One-click arming / disarming |
| Video & Kamera | • Akses: 16 Channel IP Camera • Resolusi dukungan: hingga 12 MP • Bandwidth: 160 Mbps (incoming) | 160 Mbps (recording) | 80 Mbps (outgoing) • Dekoding: 8 × 1080p @ 30 fps atau 2 × 8 MP @ 30 fps • Output Video: 1 HDMI + 1 VGA (simultan) • Tampilan multi-screen: 1 / 4 / 8 / 9 / 16 layar |
| Kompresi & Format | • Video: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG • Audio: G.711a, G.711µ, PCM, G.726 • Protokol jaringan: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, UPnP, NTP, IGMP, ICMP • Kompatibilitas: ONVIF (S / T / G), CGI, SDK • Akses mobile: iOS & Android |
| Rekaman & Playback | • Mode: Manual, Jadwal, Event, Alarm, Smart • Playback simultan: hingga 16 Channel • Smart playback & pencarian pintar • Backup: USB / jaringan • Alarm: video loss, tampering, HDD error, IP conflict, login abnormal |
| Penyimpanan | • 1 × SATA HDD bay (mendukung hingga 20 TB) • Rekomendasi: hingga 8 TB per HDD |

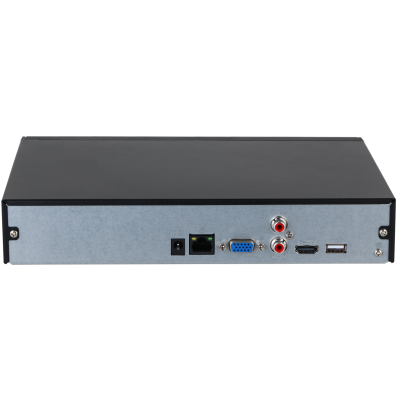

| Antarmuka & I/O | • USB: 2 × USB 2.0 (1 depan, 1 belakang) • Audio: 1 input RCA, 1 output RCA • Jaringan: 1 × RJ-45 (10/100/1000 Mbps) • Output video: HDMI + VGA |
| Daya & Konsumsi | • Power: 12 VDC, 2 A • Konsumsi: < 10 W (tanpa HDD) |
| Lingkungan | • Suhu Operasi: –10 °C ~ +55 °C • Suhu Penyimpanan: –20 °C ~ +60 °C • Kelembapan: 10% – 93% RH (non-condensing) • Sertifikasi: CE, FCC |
| Dimensi & Berat | • Dimensi: 260 × 232.5 × 47.6 mm (W × D × H) • Berat Bersih: ±0.81 kg • Berat Kotor: ±1.38 kg |
| Material & Desain | • Desain: 1U compact (desktop / rack ringan) • Material: kombinasi metal + plastik |
