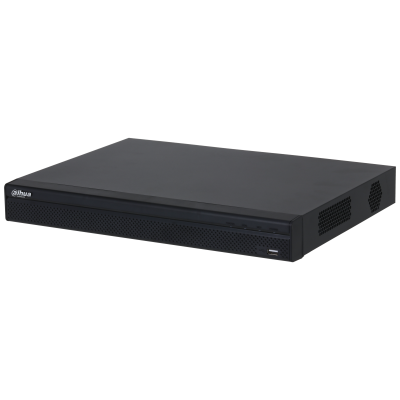

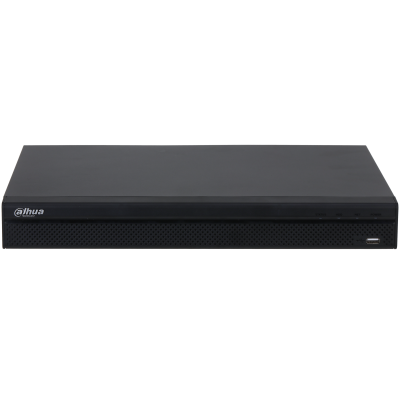

Dahua DHI-NVR4232-4KS3
32CH 4K Lite Network Video Recorder – Dual HDD Bay
| Kategori | Spesifikasi |
|---|---|
| Sistem & AI | • Prosesor: Embedded industrial-grade processor • OS: Embedded Linux • Antarmuka: GUI lokal & Web • AI by Recorder: 2 channel SMD Plus • AI by Camera: Face detection & recognition, perimeter protection, SMD Plus, people counting, heat map, stereo analysis • One-click arming/disarming |
| Video & Kamera | • 32 channel IP camera • Resolusi hingga 12 MP • Bandwidth maks: 160 Mbps incoming / 128 Mbps recording / 60 Mbps outgoing • Max decoding: 8 × 1080p@30fps atau 2 × 8MP@30fps • Output: HDMI × 1, VGA × 1 (simultan) • Mode tampilan multi-layar: 1/4/8/9/16/25/36 |
| Kompresi & Format | • Video: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG • Audio: G.711a, G.711µ, PCM, G.726 • Protokol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, UPnP, NTP, IGMP, ICMP • Kompatibilitas: ONVIF (Profile S/G/T), CGI, SDK • Akses mobile: iOS & Android |
| Rekaman & Playback | • Mode rekaman: manual, jadwal, event, alarm, smart • Playback simultan: hingga 16 channel • Smart playback & pencarian cerdas • Backup: USB / jaringan • Alarm & event: video loss, tampering, HDD error, IP conflict, abnormal login |
| Penyimpanan | • 2 × SATA port HDD, hingga 20 TB per HDD • Total kapasitas: hingga 40 TB |

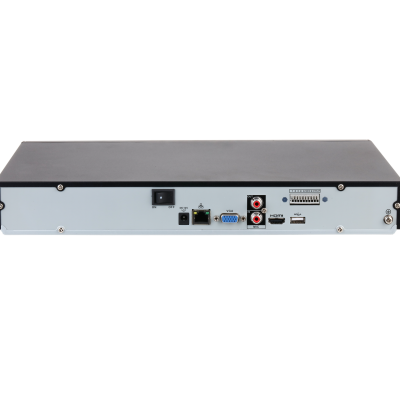

| Antarmuka & I/O | • USB: 2 × USB 2.0 (1 depan, 1 belakang) • Audio in/out: RCA (1/1) • Alarm in/out: 4/2 • Jaringan: 1 × RJ-45 (10/100/1000 Mbps) • Output video: HDMI + VGA |
| Daya & Konsumsi | • Power supply: 12 V DC, 4 A • Konsumsi: < 10 W (tanpa HDD) |
| Lingkungan Operasi | • Suhu operasi: –10 °C ~ +55 °C • Suhu penyimpanan: –20 °C ~ +60 °C • Kelembapan: 10% ~ 93% RH (non-condensing) • Sertifikasi: CE-EMC, CE-LVD |
| Dimensi & Berat | • Dimensi: 375.0 × 282.9 × 53.0 mm (W × D × H) • Berat bersih: 1.49 kg (1490 g) • Berat bruto: 2.77 kg (2770 g) |
| Material & Desain | • Casing: kombinasi logam & plastik • Form factor: 1U, cocok untuk rak atau desktop |
