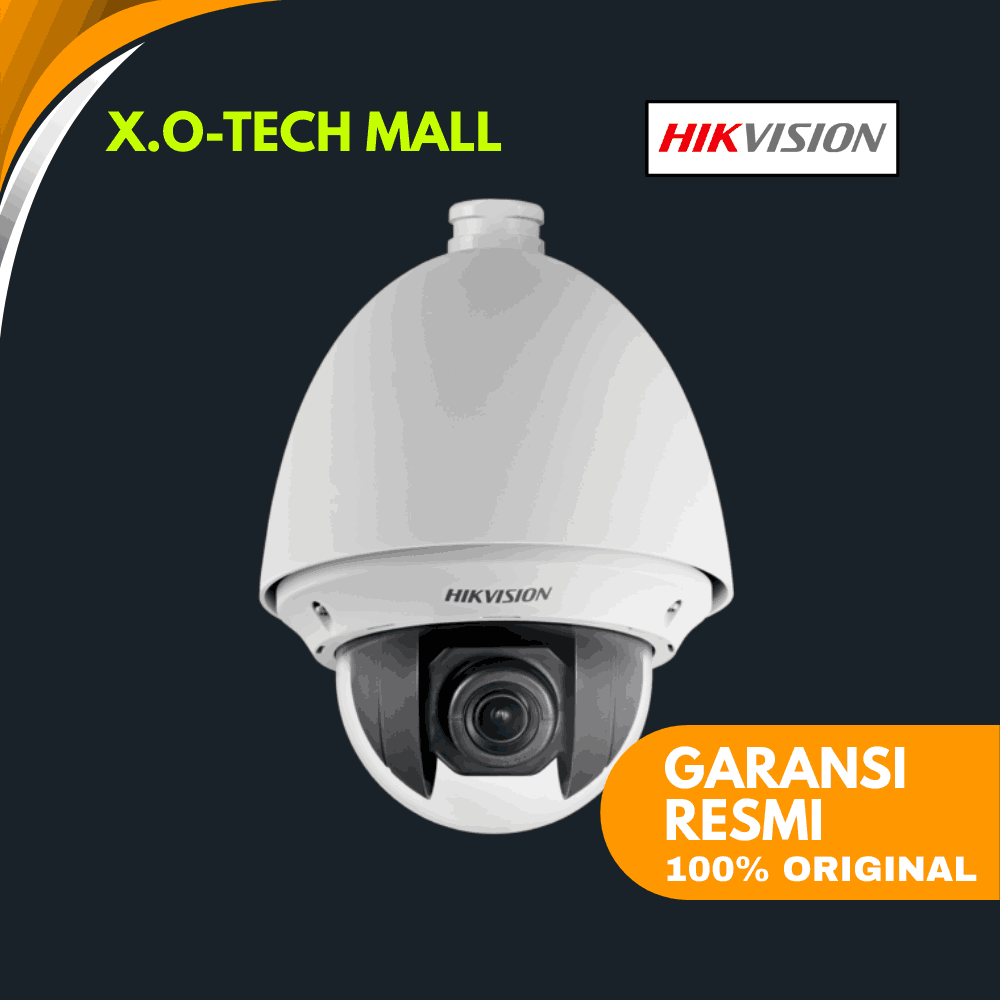

Hikvision DS-2AE4225T-D
2 MP Turbo 4-Inch Speed Dome PTZ (25× Optical, DarkFighter, Long-Range IR, Outdoor)
| Kategori | Spesifikasi |
|---|---|
| Sensor & Resolusi | 1/2.8″ Progressive Scan CMOS – 2 MP (1920 × 1080) |
| Frame Rate & Video Output | 25 fps @ 1080p (PAL); 30 fps (NTSC) Switchable: TVI / AHD / CVI / CVBS |
| Low-Light Sensitivity | Colour: 0.005 Lux @ F1.6, B/W: 0.001 Lux @ F1.6 True Day/Night (IR Cut Filter) |
| Image Enhancements | 120 dB True WDR, 3D DNR, BLC, HLC, EIS, Privacy Mask (8 area), Regional Focus |
| Zoom & Lens | 25× Optical (4.8–120 mm), 16× Digital Aperture: F1.6–F3.5 |
| Field of View | Horizontal: 57.6°–2.5°; Vertical: 34.4°–1.4°; Diagonal: 64.5°–2.9° |
| PTZ & Presets | Pan: 360° endless rotation; Tilt: –5° to 90° (auto-flip) Speed: Pan 0.1–100°/s (manual), 100°/s (preset); Tilt 0.1–80°/s 256 Presets, Patrols, Patterns, Park Actions |
| IR Illumination | Long-range IR – hingga 100 m |
| Controls | Up-the-Coax (UTC) protocol, RS-485 (Pelco-P / D) |
| Power & Interface | 12 VDC, max ~16 W Alarm I/O: 2 in / 1 out |
| Protection & Environment | IP66 — tahan cuaca outdoor Operating: –30 °C to +65 °C, ≤90% humidity |
| Dimensi & Berat | Ø 179.4 × 239.5 mm Berat: ~2 kg |
