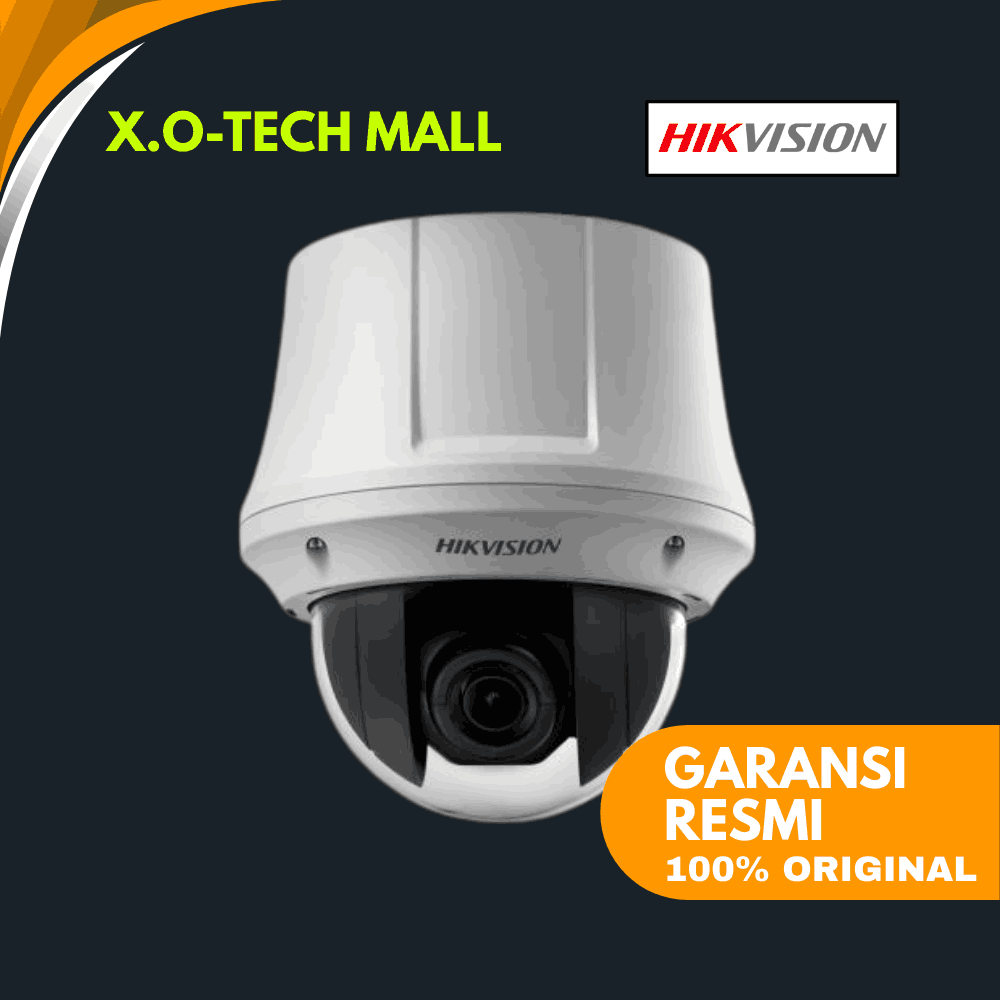

Hikvision DS-2AE4225T-D3
2 MP Turbo 4-Inch Speed Dome (25× Zoom, DarkFighter, 120 dB WDR, Analog PTZ)
| Kategori | Spesifikasi |
|---|---|
| Sensor & Resolusi | 1/2.8″ Progressive Scan CMOS, 1920 × 1080 (2 MP) |
| Frame Rate | 25 fps (PAL), 30 fps (NTSC) |
| Pencahayaan Rendah | Warna 0.005 Lux, B/W 0.001 Lux @ F1.6, IR cut filter |
| Enhancement Gambar | 120 dB True WDR, 3D DNR, BLC, HLC, EIS, 8 Privacy Masks |
| Zoom & Lensa | 25× Optical (4.8–120 mm), 16× Digital; Aperture F1.6–F3.5 |
| Sudut Pandang | H: 57.6°–2.5°, V: 34.4°–1.4°, D: 64.5°–2.9° |
| PTZ & Preset | Pan 360° endless, Tilt –5° to 90°, Speed Pan 0.1–100°/s, Tilt 0.1–80°/s; 256 Preset, Patterns, Patrol |
| IR Illumination | IR hingga 100 m |
| Kontrol | Up-the-Coax (UTC), RS-485 (Pelco-P/D) |
| Daya & Antarmuka | 12 VDC, max ~16 W; Alarm: 2 in / 1 out |
| Lingkungan | IP66, Operating: –30 °C to +65 °C, ≤90% humidity |
| Dimensi & Berat | Ø 165 × 179.5 mm; Berat ~2 kg |
