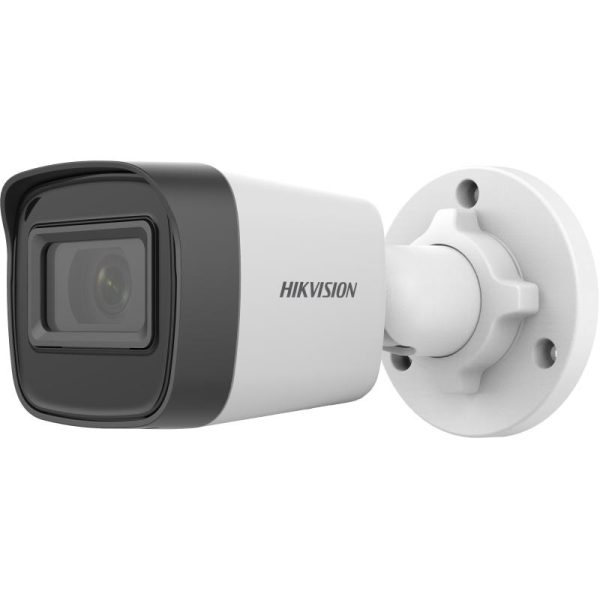

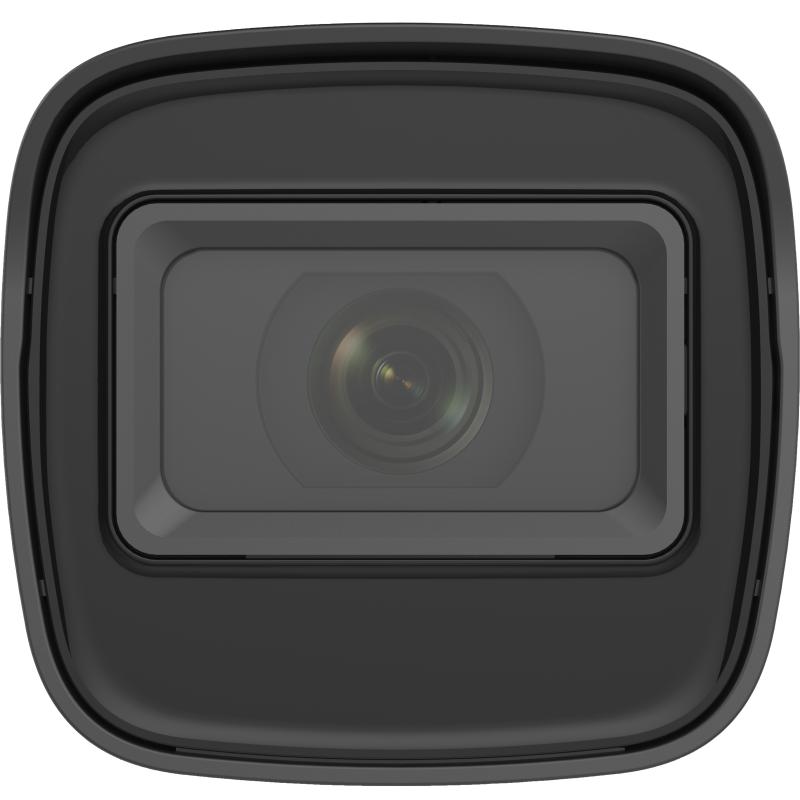

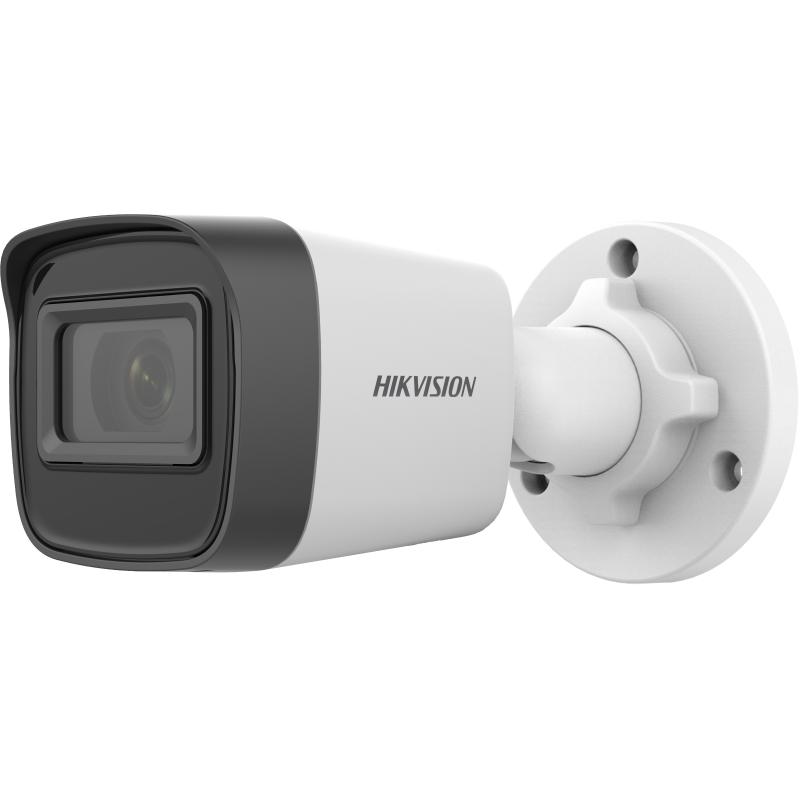

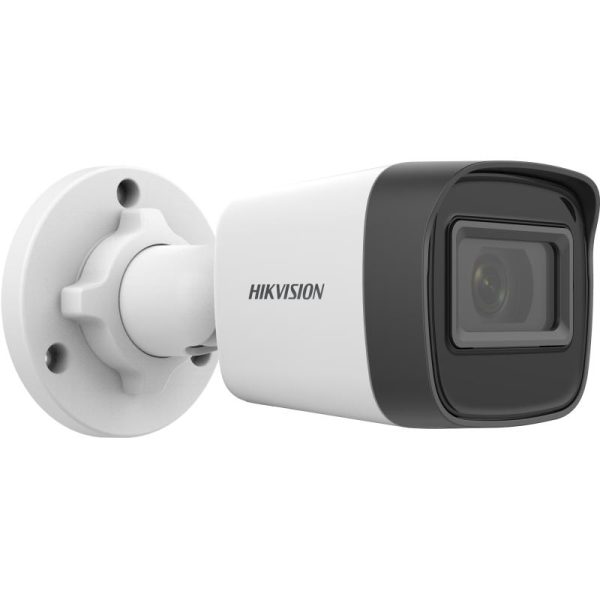

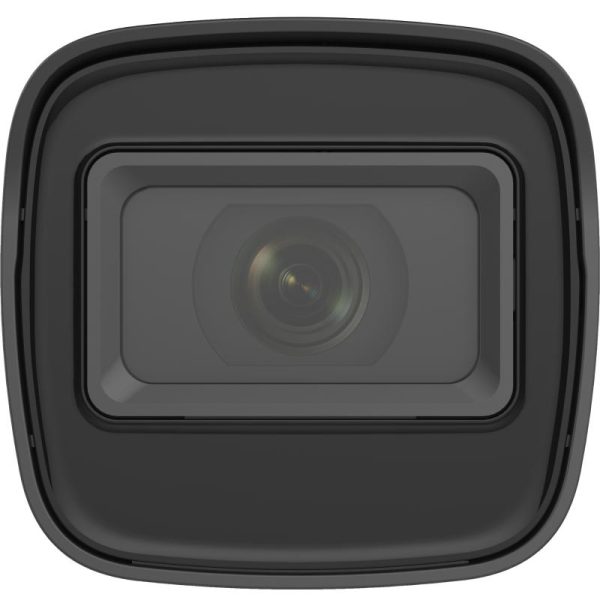

Hikvision DS-2CD1021G0-IU
2 MP IR Fixed Bullet Network Camera (Built-in Mic)
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/2.9″ Progressive Scan CMOS (ICR) Resolusi maks: 1920 × 1080 Frame rate: 25 fps (50 Hz) / 30 fps (60 Hz) @ 1080p/720p Kompresi: H.265+ / H.265 / H.264+ / H.264 Bitrate video: 32 Kbps – 8 Mbps Min. iluminasi: 0.01 Lux (warna, F2.2, AGC ON) • 0 Lux (IR ON) |
| Lensa & Sudut Pandang | Lensa tetap 2.8 mm atau 4 mm • Mount M12 • Aperture F2.2 FOV 2.8 mm: H 94° • V 51° • D 112° FOV 4 mm: H 80° • V 44° • D 94° DORI 2.8 mm: D 48 m • O 19 m • R 9 m • I 4 m DORI 4 mm: D 55 m • O 22 m • R 11 m • I 5 m |
| IR & Audio | Penerangan IR: hingga 30 m (850 nm), Smart IR Audio: Built-in Microphone (varian IU) |
| Pengolahan Gambar | Digital WDR • 3D DNR • BLC/HLC Mode Day/Night: Day • Night • Auto • Schedule |
| Jaringan & Keamanan | Protokol: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv4, UDP, QoS API: ISAPI, SDK • Live view simultan: hingga 6 channel • User: hingga 32 Keamanan: proteksi password, watermark, auth HTTP (basic/digest), audit log, host/MAC auth |
| Antarmuka & Event | Jaringan: 1 × RJ45 10/100M Event dasar: Motion detection (bisa trigger berdasarkan target manusia) & exception Tautan: notifikasi ke pusat pemantauan |
| Lingkungan & Proteksi | Operasional & penyimpanan: −30 °C s/d +60 °C, RH ≤ 95% (non-condensing) Proteksi: IP67 • Klasifikasi anti-korosi: No Specific Protection |
| Daya | 12 VDC ± 25% (maks. 5 W) • PoE IEEE 802.3af Class 3 (maks. 6.5 W) |
| Bodi, Dimensi & Berat | Material: Plastic + Metal Dimensi kamera: 138.8 × 60.9 × 57.9 mm Dimensi paket: 163 × 75 × 75 mm Berat bersih: ~200 g • Berat paket: ~286 g |
| Sertifikasi | EMC: FCC, CE-EMC • Safety: CB, CE-LVD • Environment: RoHS, WEEE, REACH |
