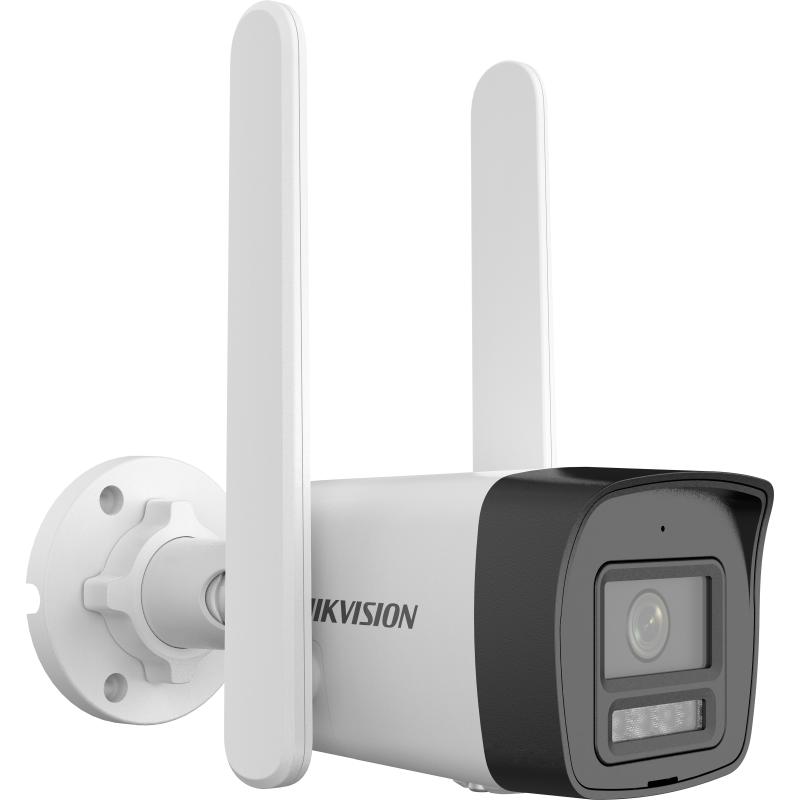

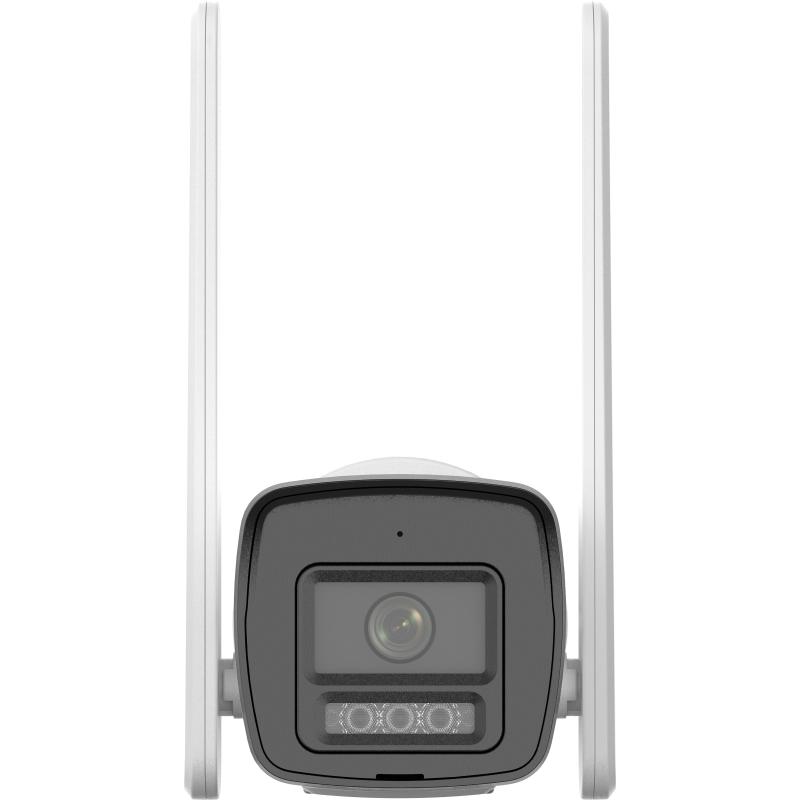

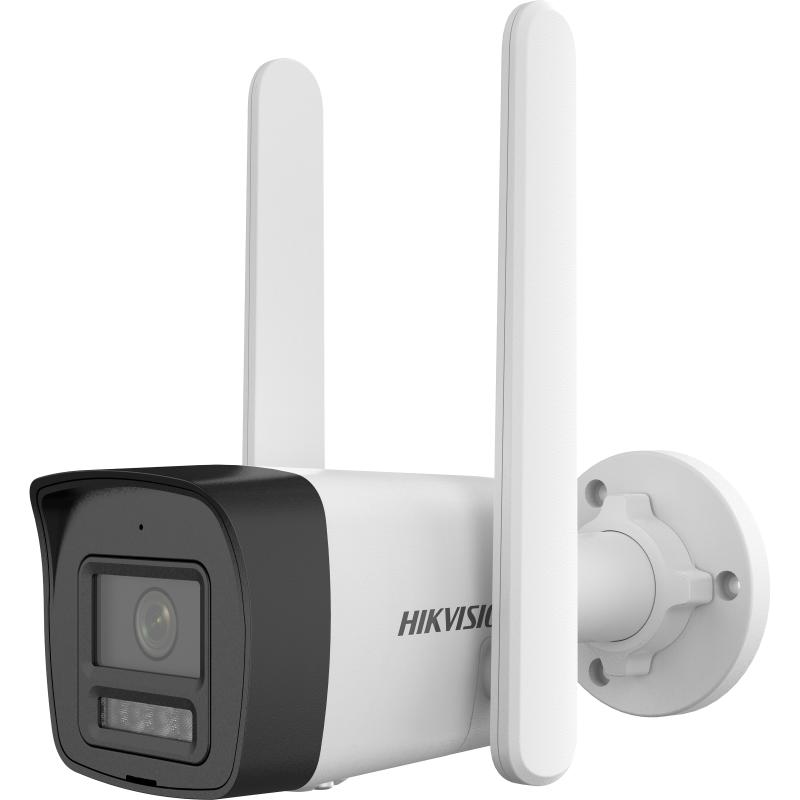

Hikvision DS-2CD1043G2-LIDUF/4G/SL
4 MP Smart Hybrid Light Bullet Camera dengan 4G, Two-Way Audio & Alarm Strobe
| Kategori | Detail |
|---|---|
| Kamera & Gambar | Sensor: 1/2.7″ Progressive Scan CMOS Resolusi Maks: 2560 × 1440 (4 MP) Min. Illuminasi: Color 0.01 Lux @ F2.2 (AGC ON) • B/W 0 Lux dengan IR (alarm aktif) |
| Lensa & Sudut Pandang | Fixed lens: 2.8 mm atau 4 mm (M12, F2.2) FOV 2.8 mm: H 94° • V 49° • D 114° FOV 4 mm: H 70° • V 35° • D 85° |
| DORI | 2.8 mm: Deteksi 68 m • Observasi 27 m • Rekognisi 13 m • Identifikasi 6 m 4 mm: Deteksi 100 m • Observasi 39 m • Rekognisi 20 m • Identifikasi 10 m |
| Smart Hybrid Light | IR & White Light Jangkauan hingga 30 m IR Wavelength: 850 nm |
| Video & Kompresi | Main Stream: 20 fps @ 4 MP/1080p/720p (50/60 Hz) Sub-Stream: 20 fps @ 768 × 432 Kompresi: H.265+/H.265/H.264+/H.264 (main) • MJPEG (sub) Bitrate: 32 Kbps – 8 Mbps |
| Audio & Alarm | Built-in Microphone & Speaker Mendukung Two-Way Talk Audio & Strobe Light Alarm terintegrasi |
| Penyimpanan | Slot microSD/microSDHC/microSDXC hingga 512 GB |
| Jaringan & 4G | Built-in 4G LTE (Cat 1/4) Upload hingga 50 Mbps • Download hingga 150 Mbps Slot Nano SIM |
| Enhancement Gambar | Digital WDR • BLC • HLC • 3D DNR |
| Interface & Event | Port: RJ45 10/100 Mbps Keamanan: HTTPS, TLS, Password, Watermark Event: Motion Detection (manusia/kendaraan), Tampering, Exception Linkage: Alarm, Capture, Notifikasi |
| Daya | 12 VDC ± 25% Konsumsi Maks: 9 W Coaxial jack Ø 5.5 mm, proteksi polaritas terbalik |
| Dimensi & Berat | Dimensi: 238.5 × 97.6 × 67.4 mm Berat Bersih: ≈ 380 g Berat dengan Paket: ≈ 658 g |
| Lingkungan & Proteksi | Suhu Operasional: –30 °C hingga 40 °C Kelembapan: RH ≤ 95% (non-condensing) Proteksi: IP67 |
| Sertifikasi | EMC, Safety & Environment: CE-EMC, CB, CE-LVD, CE-RoHS, REACH |
