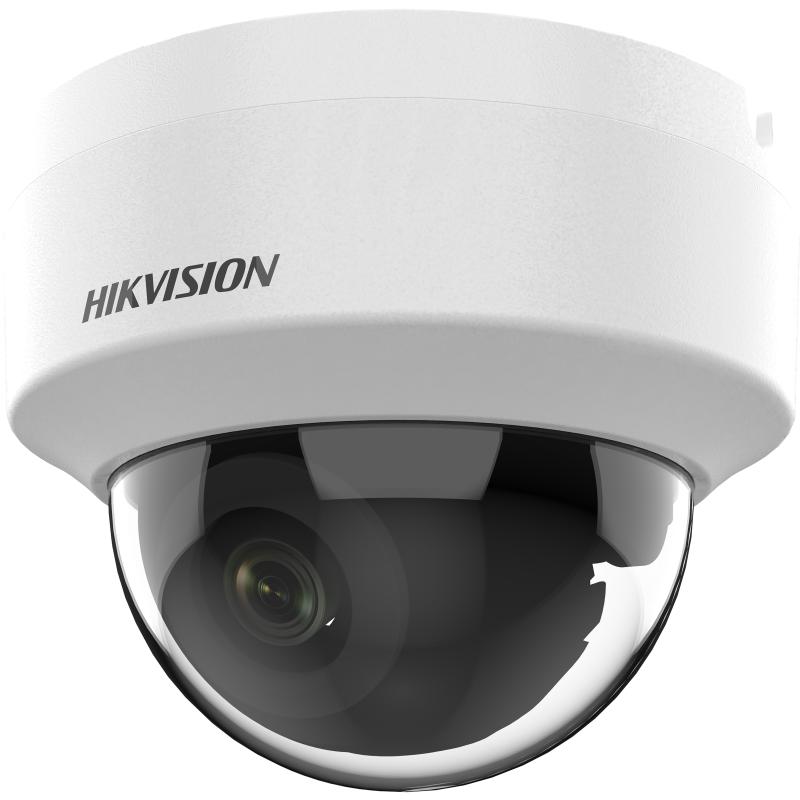

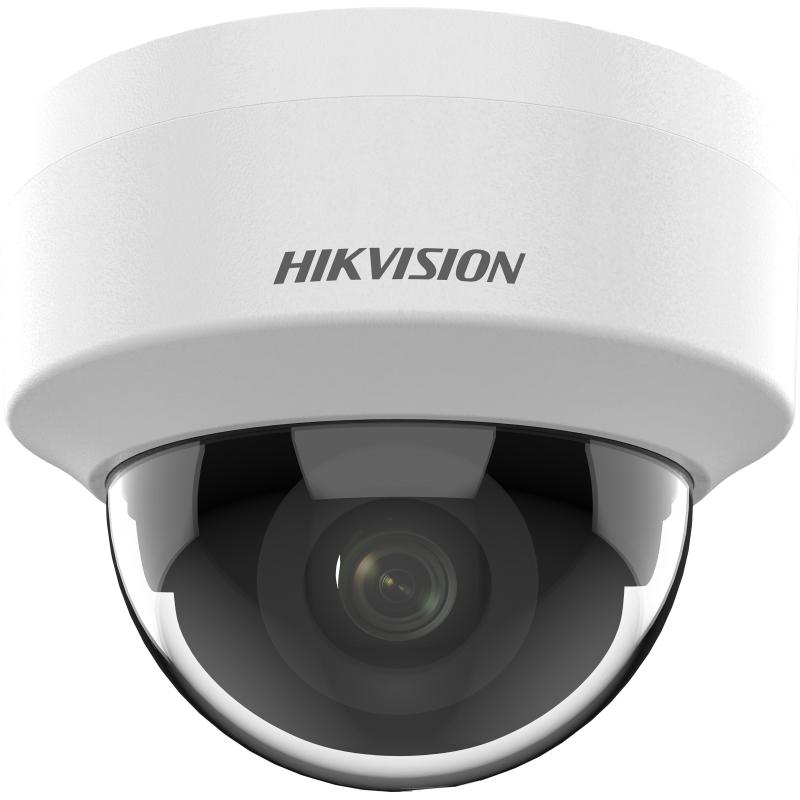

Hikvision DS-2CD1121G0-I
2 MP Fixed Dome Network Camera
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/3″ Progressive Scan CMOS, ICR (IR cut filter) Resolusi: 1920 × 1080 Frame rate: 25fps (50Hz) / 30fps (60Hz) Kompresi: H.265+/H.265/H.264+/H.264 Bitrate video: 32 Kbps – 8 Mbps Min. iluminasi: 0.01 Lux (warna, F2.0, AGC ON) • 0 Lux (IR ON) |
| Lensa & Sudut Pandang | Lensa tetap 2.8 mm / 4 mm / 6 mm • Mount M12 FOV 2.8 mm: H 103° • V 55° • D 118° FOV 4 mm: H 85° • V 46° • D 100° FOV 6 mm: H 55° • V 30° • D 63° DORI 2.8 mm: D 37 m • O 15 m • R 7 m • I 4 m DORI 4 mm: D 53 m • O 21 m • R 11 m • I 5 m DORI 6 mm: D 80 m • O 32 m • R 16 m • I 8 m |
| IR & Audio | IR range: hingga 30 m, Smart IR Audio: – (model ini tidak built-in mic, berbeda dengan seri IU) |
| Pengolahan Gambar | DWDR • 3D DNR • BLC/HLC Mode Day/Night: Day • Night • Auto • Schedule |
| Jaringan & Keamanan | Protokol: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv4, UDP, QoS API: ISAPI, SDK • User: hingga 32 user Keamanan: proteksi password, HTTPS, watermark, audit log |
| Antarmuka & Event | Jaringan: 1 × RJ45 10/100M Event dasar: motion detection, tamper alarm, exception Notifikasi ke software client / platform VMS |
| Lingkungan & Proteksi | Operasional: −30 °C s/d +60 °C, RH ≤ 95% (non-condensing) Proteksi: IP67 tahan cuaca • IK10 anti vandalisme |
| Daya | 12 VDC ±25%, maks. 5 W PoE (802.3af, Class 3), maks. 6.5 W |
| Dimensi & Berat | Dimensi: Ø 110.8 × 85.2 mm Berat bersih: ~240 g Berat paket: ~380 g |
| Sertifikasi | EMC: FCC, CE-EMC • Safety: CB, CE-LVD • Environment: RoHS, WEEE, REACH |
