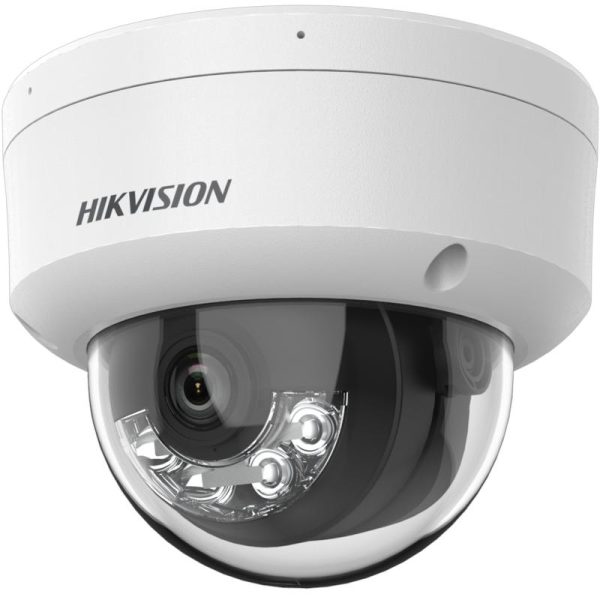

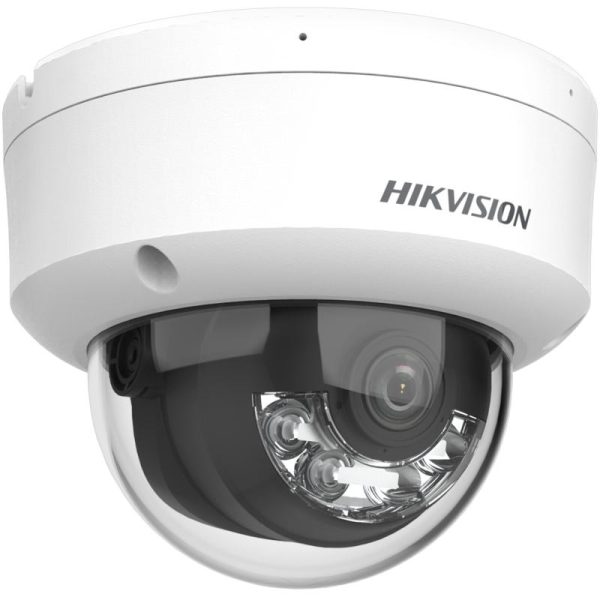

Hikvision DS-2CD1123G2-LIUF

2 MP Smart Hybrid Light Fixed Dome Network Camera – Two-Way Audio

Kategori	Detail
Kamera & Video	Sensor: 1/2.9″ Progressive Scan CMOS Resolusi: 1920 × 1080 (2 MP) Frame Rate: 25 fps @ 50 Hz • 30 fps @ 60 Hz (Main Stream) Kompresi: H.265+/H.265/H.264+/H.264 (utama); H.265/H.264/MJPEG (sub) Enhancements: Digital WDR, BLC, 3D DNR • IR cut filter • S/N ≥ 52 dB Shutter: 1/3 s – 1/100,000 s
Lensa & Sudut Pandang	Lensa tetap: 2.8 mm (H103°/V56°/D121°) atau 4 mm (H83°/V44°/D99°) Mount: M12 • Aperture: F1.6 DORI 2.8 mm: Deteksi 45 m • Observasi 18 m • Rekognisi 9 m • Identifikasi 4 m DORI 4 mm: Deteksi 56 m • Observasi 22 m • Rekognisi 11 m • Identifikasi 5 m
Pencahayaan & Audio	Smart Hybrid Light (IR + White Light) hingga 30 m Min. Illuminasi: Warna 0.005 Lux @ F1.6 (AGC ON); B/W 0 Lux (IR ON) Audio: Built-in Microphone • Two-Way Audio (LIUF)• Sampling 8/16 kHz Kompresi Audio: G.711u/a, G.722.1, G.726, MP2L2, PCM, AAC-LC
Penyimpanan & Interface	Slot microSD hingga 512 GB Reset Key: ada (•F model)
Jaringan & Keamanan	1 × RJ45 10/100 Mbps Protokol: TCP/IP, DHCP, DNS, HTTP, RTSP, NTP, IPv4/IPv6, UDP, QoS, FTP, SMTP, IGMP API: ONVIF Profile S/T/G (hanya F), ISAPI, SDK Keamanan: password, watermark, audit log, autentikasi layer ke-berbagai Live View: hingga 6 channel • Client: iVMS-4200, Hik-Connect
Event Cerdas	Human & Vehicle Detection, motion detection, video tampering, exception Linkage: Upload ke FTP/microSD, email, notifikasi pusat, rekaman trigger, capture trigger
Daya & Konsumsi	DC12 V ± 25%, max ~6 W (0.5 A) • PoE IEEE 802.3af, Class 3
Lingkungan & Proteksi	Suhu Operasional: –30 °C s/d 60 °C • RH ≤ 95% (non-kondensasi) Proteksi: IP67 & IK08 (dome vandal-proof) Bahan: Logam & Plastik
Dimensi & Berat	Ø121.4 mm × 97.7 mm (Ø4.8″ × 3.8″) • Berat: ± 550 g (dengan paket ± 800 g):contentReference[oaicite:1]{index=1}
Sertifikasi & Lingkungan	EMC & Safety: FCC, CE-EMC, RCM, UL, CB, CE-LVD, BIS Perlindungan Lingkungan: RoHS, WEEE, REACH:contentReference[oaicite:2]{index=2}
