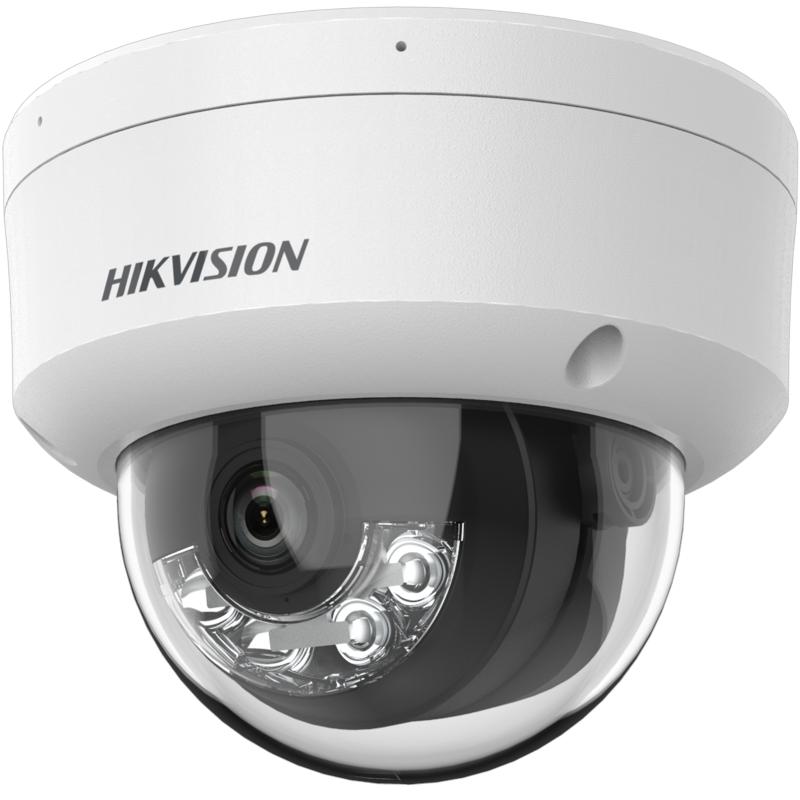

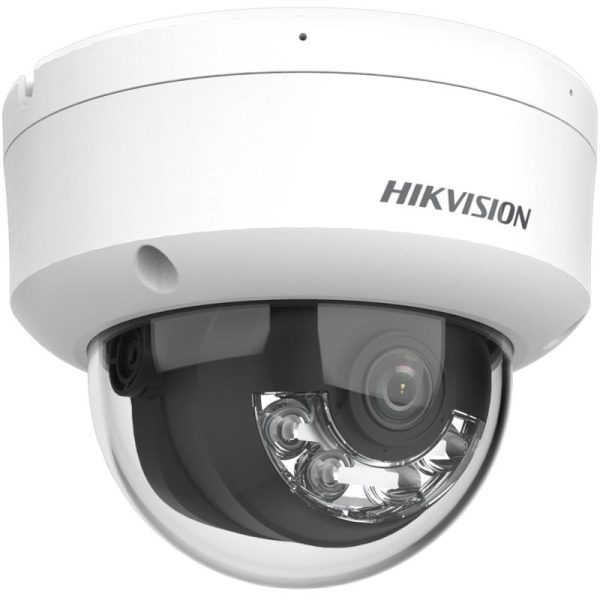

Hikvision DS-2CD1143G2 4MP
4 MP Smart Hybrid Light Fixed Dome Network Camera – Two-Way Audio
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/3″ Progressive Scan CMOS Resolusi maksimum: 2560 × 1440 (4 MP) Shutter speed: 1/3 s – 1/100,000 s Pencahayaan minimum: Warna 0.005 Lux @ F1.6 (AGC ON); B/W 0 Lux (IR ON) Filter IR cut otomatis • S/N ≥ 52 dB • WDR digital, BLC, 3D DNR |
| Lensa & Sudut Pandang | Lensa tetap: 2.8 mm (H 98°/V 54°/D 114°) atau 4 mm (H 78°/V 42°/D 93°) Mount: M12 • Aperture: F1.6 DORI (2.8 mm): Deteksi 63 m • Observasi 25 m • Rekognisi 12 m • Identifikasi 6 m DORI (4 mm): Deteksi 78 m • Observasi 31 m • Rekognisi 15 m • Identifikasi 7 m |
| Pencahayaan & Audio | Smart Hybrid Light (IR + white light) hingga 30 m Audio: Built-in microphone • Two-Way Audio (speaker) • Sampling 8/16 kHz |
| Penyimpanan & Interface | Slot microSD hingga 256 GB Reset key tersedia |
| Jaringan & Keamanan | 1 × RJ45 10/100 Mbps Protokol: TCP/IP, HTTP, RTSP, FTP, SMTP, IPv4/6, DHCP, DNS, NTP, IGMP, QoS, UDP, RTP/RTCP ONVIF Profile S/T/G, ISAPI, SDK Autentikasi berlapis, password, watermark, audit log |
| Event Cerdas | Deteksi manusia & kendaraan, tampering, exception Tindakan: Upload ke FTP/microSD, email, notifikasi pusat, trigger recording/capture |
| Daya & Konsumsi | DC 12 V ± 25%, maks ~6 W • PoE (IEEE 802.3af, Class 3) |
| Lingkungan & Proteksi | Suhu operasi: –30 °C hingga 60 °C • RH ≤ 95% (non-kondensasi) Proteksi: IP67 & IK08 • Material: Metal & Plastik |
| Dimensi & Berat | Ø121.4 mm × 97.7 mm (diameter × tinggi) Berat: ± 550 g • Berat dengan paket: ± 800 g |
