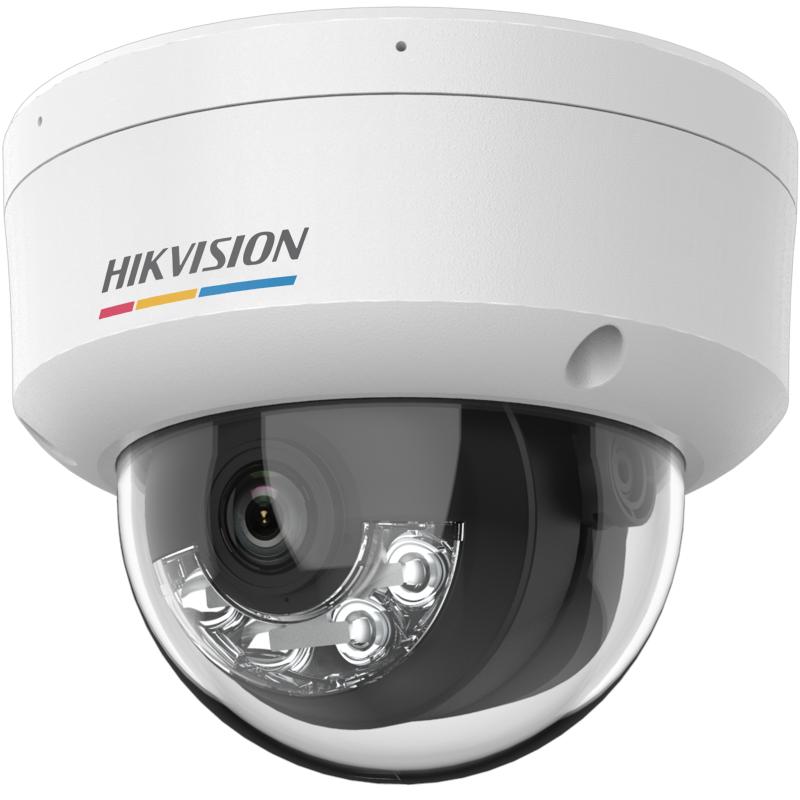

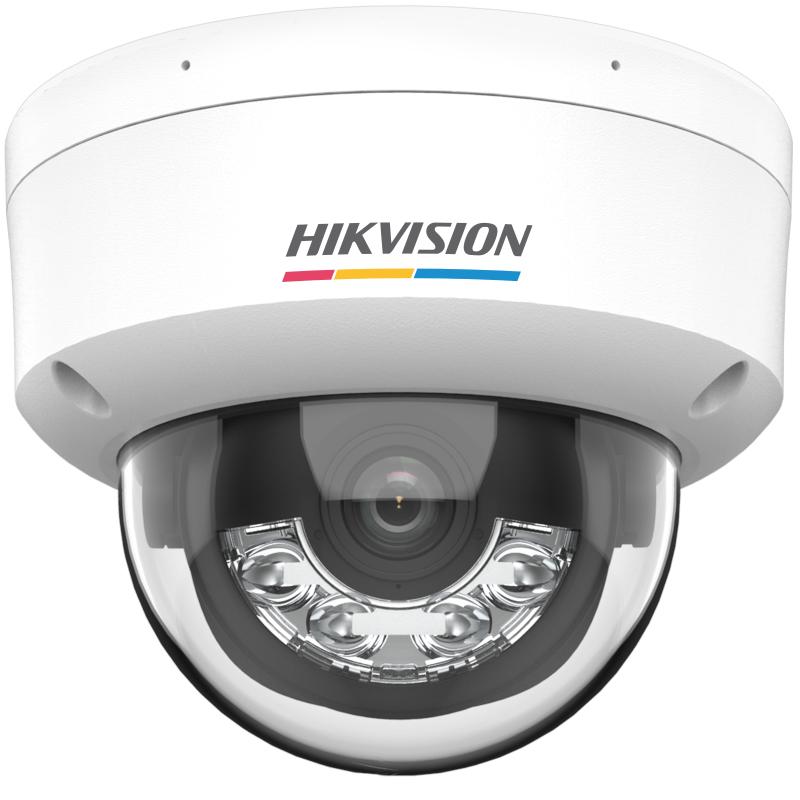

Hikvision DS-2CD1147G2H-LIUF
4 MP ColorVu Smart Hybrid Light Dome Camera (Audio/Alarm I/O)
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 1/3″ Progressive Scan CMOS Resolusi: 2560 × 1440 (4 MP) Frame rate: 20 fps (4 MP), 25/30 fps (1080p/720p) Min. Illuminasi: 0.001 Lux (warna, F1.0, AGC ON) • 0 Lux (dengan lampu) Shutter: 1/3 s – 1/100,000 s Day/Night: IR Cut Filter (ICR) |
| Lensa & Sudut Pandang | Lensa tetap 2.8 mm / 4 mm, Iris F1.0 FOV 2.8 mm: H 96° • V 52° • D 114° FOV 4 mm: H 80° • V 43° • D 93° DORI 2.8 mm: D 63 m • O 25 m • R 12 m • I 6 m DORI 4 mm: D 77 m • O 30 m • R 15 m • I 7 m |
| Pencahayaan | Smart Hybrid Light: IR + White Light hingga 30 m Panjang gelombang IR: 850 nm |
| Video & Kompresi | Kompresi: H.265+/H.265/H.264+/H.264 (utama); H.265/H.264/MJPEG (sub) Bit rate: 32 Kbps – 8 Mbps (CBR/VBR) ROI: 1 area tetap |
| Audio | Built-in Microphone + Audio/Alarm I/O Kompresi: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC Sampling: 8/16 kHz • Noise Filtering: Ya |
| Jaringan & Penyimpanan | Protokol: TCP/IP, HTTP, RTSP/RTP/RTCP, DHCP, DNS, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP Kompatibilitas: ONVIF (Profile S/G/T), ISAPI, SDK Live view: hingga 6 channel Penyimpanan: microSD/SDHC/SDXC hingga 512 GB (model -F) |
| Daya & Interface | Power: DC 12 V & PoE (802.3af, Class 3) – adaptor tidak termasuk Interface: 1 × RJ45 10/100 Mbps |
| Lingkungan & Proteksi | Proteksi: IP67, IK08 (anti-vandal) Suhu Operasi: –30 °C hingga +60 °C, RH ≤ 95% Housing: Base metal + cover plastik |
| Dimensi & Berat | Dimensi: Ø 121.5 mm × 97.6 mm (diameter × tinggi) Berat: ± 500 g (tanpa kemasan) • ± 700 g (dengan kemasan) |
| Lainnya | Fitur pintar: Deteksi manusia & kendaraan, motion detection, tampering alarm Mobile monitoring via Hik-Connect Catatan: *-F model tersedia slot SD Card (hingga 512 GB) |
