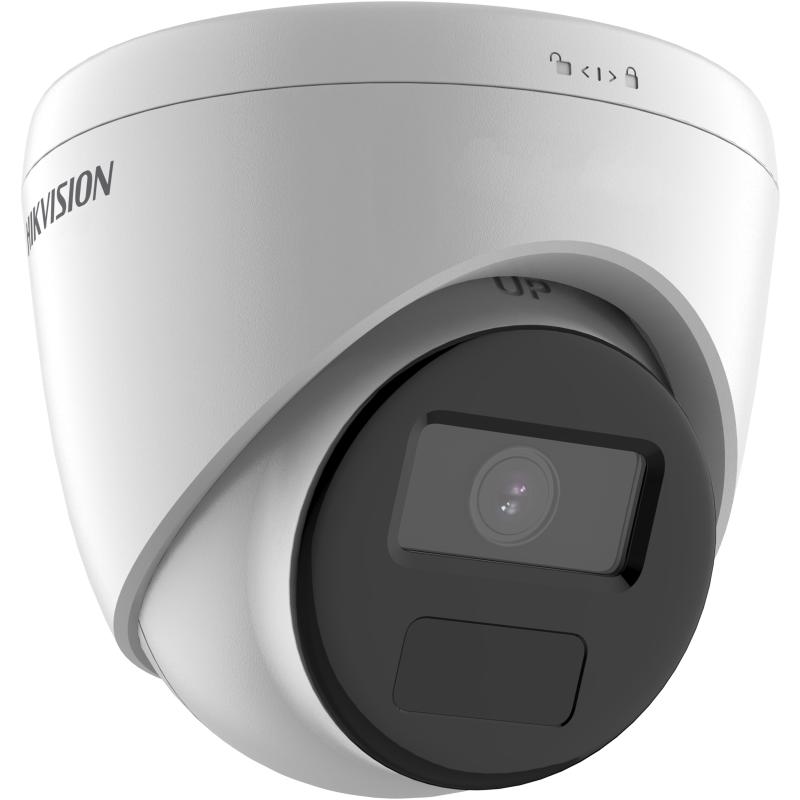

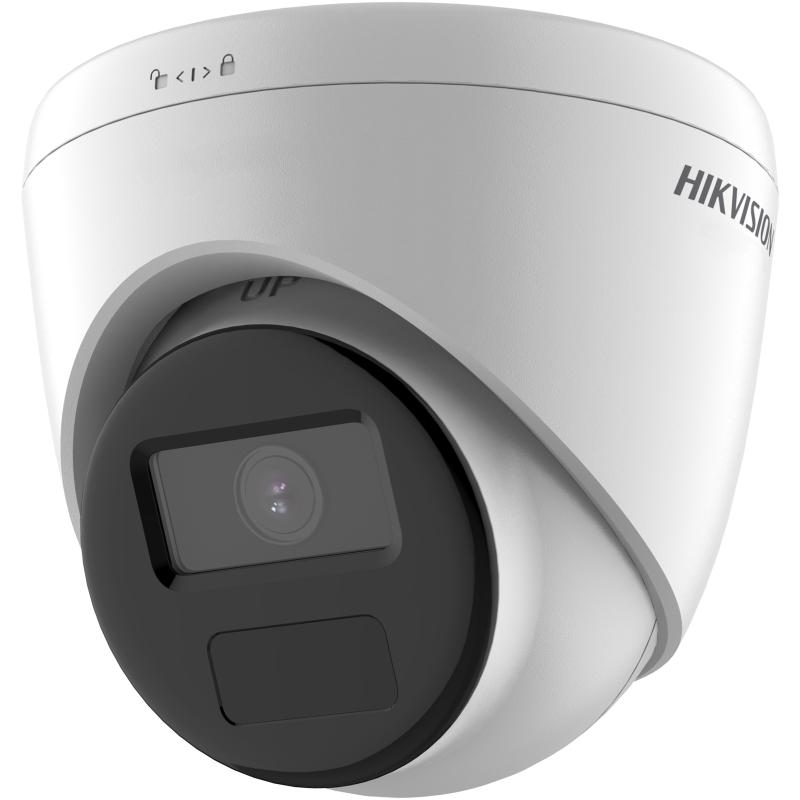

Hikvision DS-2CD1321G0-I
2 MP Fixed Turret Network Camera
| Kategori | Detail |
|---|---|
| Kamera & Video | Sensor: 1/2.9″ Progressive Scan CMOS (ICR) Resolusi maks: 1920 × 1080 Frame rate: 25 fps (50 Hz) / 30 fps (60 Hz) Kompresi: H.265+ / H.265 / H.264+ / H.264 Bitrate: 32 Kbps – 8 Mbps Min. iluminasi: 0.01 Lux (warna, F2.2, AGC ON); 0 Lux (IR ON) |
| Lensa & Sudut Pandang | Lensa tetap: 2.8 mm atau 4 mm • Mount: M12 FOV 2.8 mm: H 94° • V 51° • D 112° FOV 4 mm: H 80° • V 44° • D 94° DORI 2.8 mm: Deteksi 48 m • Observasi 19 m • Rekognisi 9 m • Identifikasi 4 m DORI 4 mm: Deteksi 55 m • Observasi 22 m • Rekognisi 11 m • Identifikasi 5 m |
| IR & Penerangan | Jenis: IR • Jarak: hingga 20 m • Smart IR (850 nm) |
| Pengolahan Gambar | Digital WDR • BLC • 3D DNR • Mode Day/Night: Day, Night, Auto, Schedule • SNR ≥ 52 dB |
| Jaringan & Keamanan | Protokol: TCP/IP, ICMP, DHCP, DNS, RTSP, RTP, NTP, IGMP, IPv6, UDP, QoS, HTTP API: ISAPI/SDK • Live view simultan: hingga 6 channel • User: hingga 32 user Keamanan: password, watermark, HTTP auth (basic/digest), audit log, MAC filter |
| Antarmuka & Event | Port: 1 × RJ45 10/100 M Event: motion detection, exception • Notifikasi ke iVMS / pusat monitoring |
| Daya | 12 VDC ±25%, maks. 5 W PoE (IEEE 802.3af, Class 3), maks. 6.5 W |
| Dimensi & Berat | Dimensi: Ø 109.9 × 103.6 mm (Ø 4.3″ × 4.1″) Paket: 134 × 134 × 108 mm Berat bersih: ± 300 g • Berat dengan paket: ± 460 g |
| Lingkungan & Proteksi | Operasional: –30 °C hingga +60 °C, RH ≤ 95% (non-condensing) Proteksi: IP67 (tahan debu & air) |
| Sertifikasi & Fungsi Tambahan | Anti-flicker • Heartbeat • Mirror • Password protection • Watermark • IP Filter EMC: CE-EMC • Safety: CB, CE-LVD • Environment: RoHS, WEEE, REACH |
