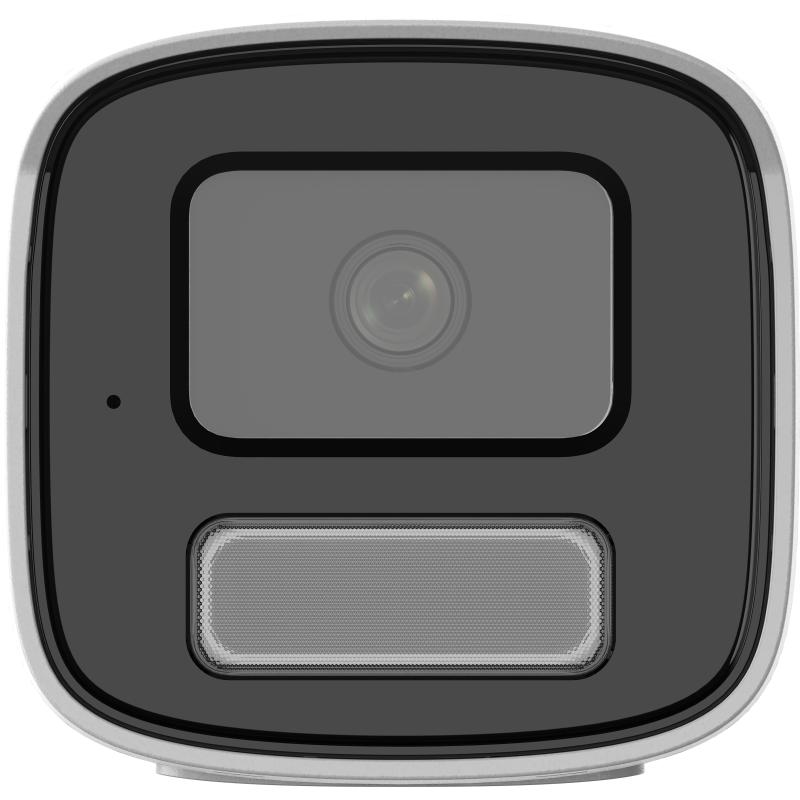

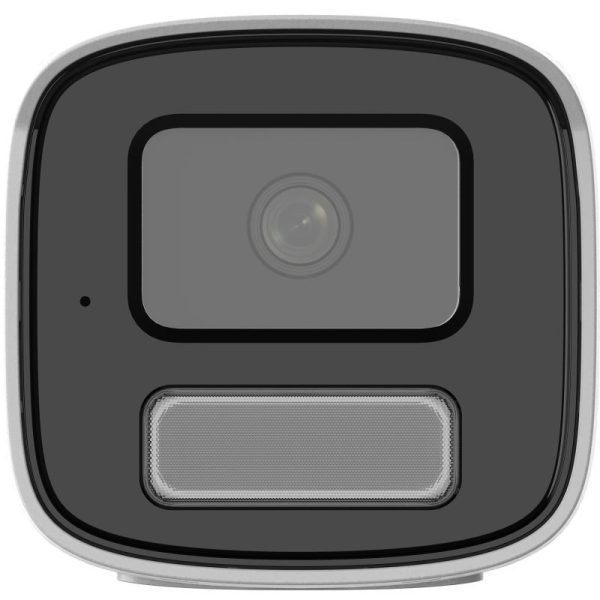

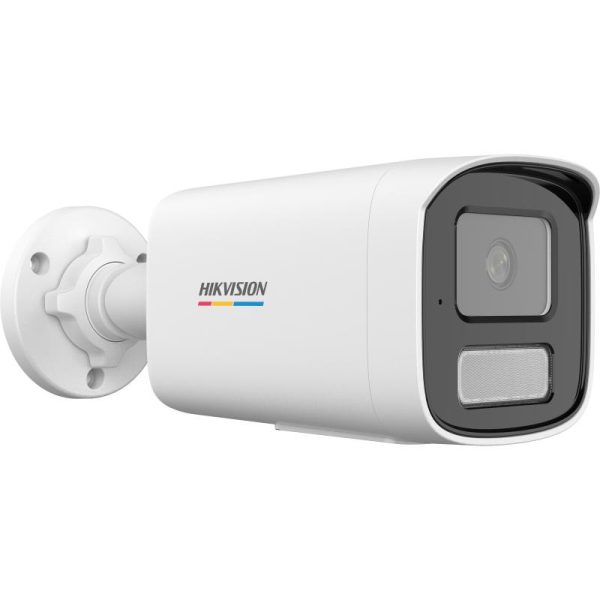

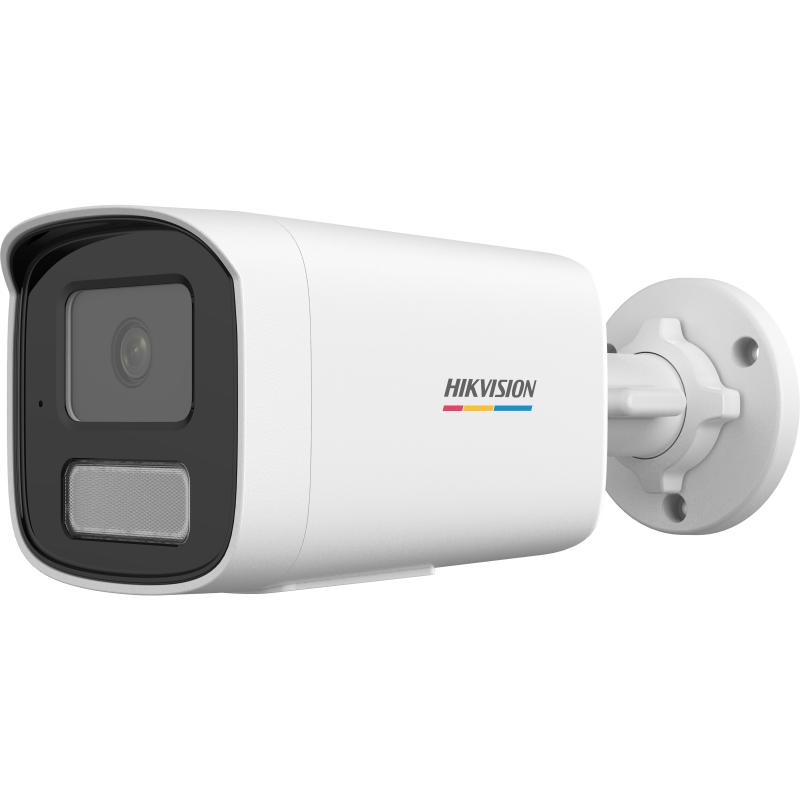

Hikvision DS-2CD1T47G2H-LIUF
4 MP ColorVu Smart Hybrid Light Fixed Bullet Camera (Audio/Alarm I/O)
| Kategori | Spesifikasi |
|---|---|
| Kamera & Gambar | Sensor: 1/3″ Progressive Scan CMOS Resolusi: 2560 × 1440 (4 MP) Min. Illuminasi: 0.001 Lux (warna, F1.0, AGC ON); 0 Lux (dengan lampu) Shutter: 1/3 s – 1/100,000 s Day/Night: IR cut filter; Adjust: Pan 0–355°, Tilt 0–180°, Rotate 0–355° |
| Lensa & FOV | Lensa tetap: 2.8 mm atau 4 mm, aperture F1.0 FOV 2.8 mm: H 115° • V 60° • D 143° FOV 4 mm: H 94° • V 50° • D 110° |
| DORI | 2.8 mm: D 64 m • O 25 m • R 12 m • I 6 m 4 mm: D 77 m • O 30 m • R 15 m • I 7 m |
| Pencahayaan | Smart Hybrid Light: IR + White Light hingga 50 m (850 nm) |
| Video & Kompresi | Kompresi: H.265+/H.265/H.264+/H.264 (utama); MJPEG (sub) Main Stream: 20 fps (4 MP), 25/24 fps (1080p) depending on region Bit rate: 32 Kbps – 8 Mbps; ROI: 1 region; SVC supported |
| Audio | Built-in mic + Audio/Alarm I/O Codec: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC Sampling: 8/16 kHz; Noise filtering included |
| Jaringan & Penyimpanan | Protokol: IPv4/v6, TCP/IP, HTTP, RTSP, RTP/RTCP, DHCP, DNS, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP ONVIF, ISAPI, SDK; Live view: up to 6 channels Storage: microSD up to 512 GB (model -F) |
| Gambar & Event | WDR 120 dB, BLC, HLC, 3D DNR, SNR ≥ 52 dB Privacy mask (4 areas), mirror, anti-banding, heartbeat, reset via email Event: motion detection (human/vehicle), tampering, exception |
| Daya & Interface | Power: 12 V DC (~6.8 W) or PoE 802.3af Class 3 (~8.3 W) Interface: RJ45 10/100 Mbps + reset button (–F) |
| Lingkungan & Fisik | Proteksi: IP67; Operating temp: –30 °C to +60 °C Dimensi: 81 × 83.7 × 201.96 mm (P × L × T) Weight: ~550 g (camera), ~800 g (packed) Housing: Metal front, plastic body/bracket |
| Lainnya | Mobile monitoring via Hik-Connect *-F = SD card slot; Power supply not included |
