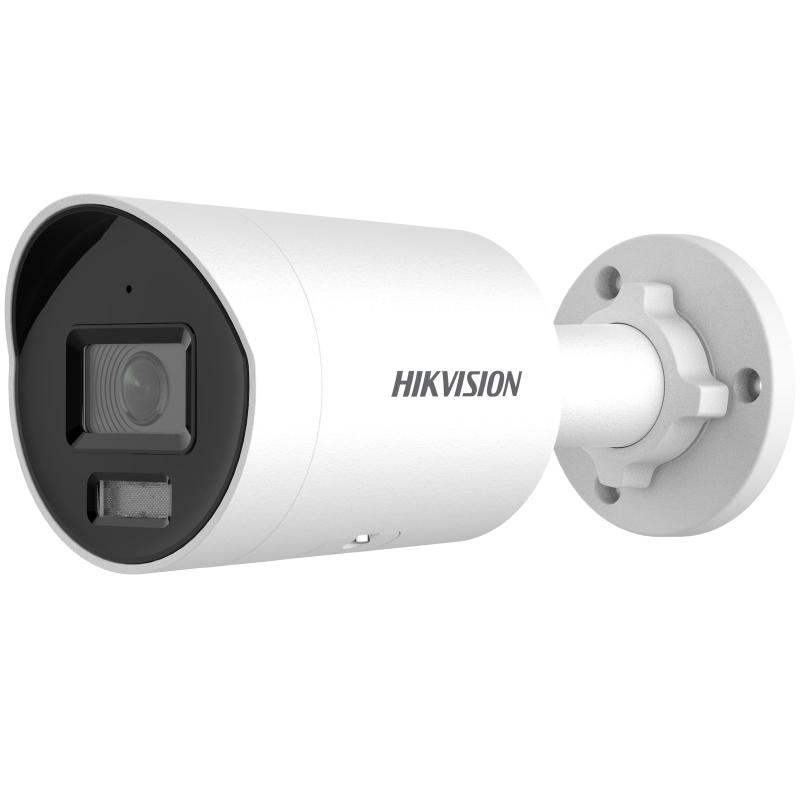

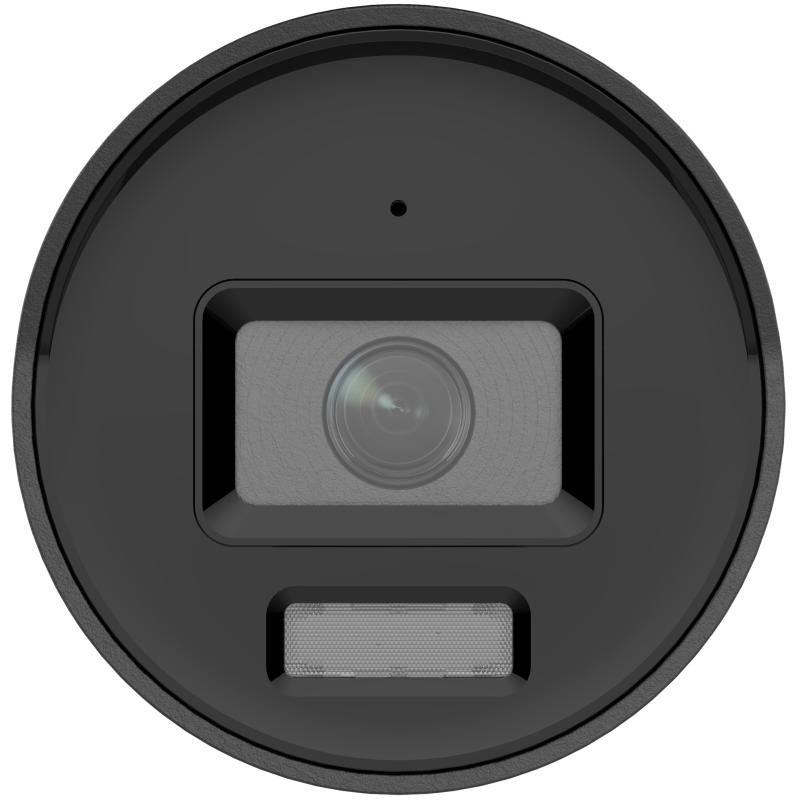

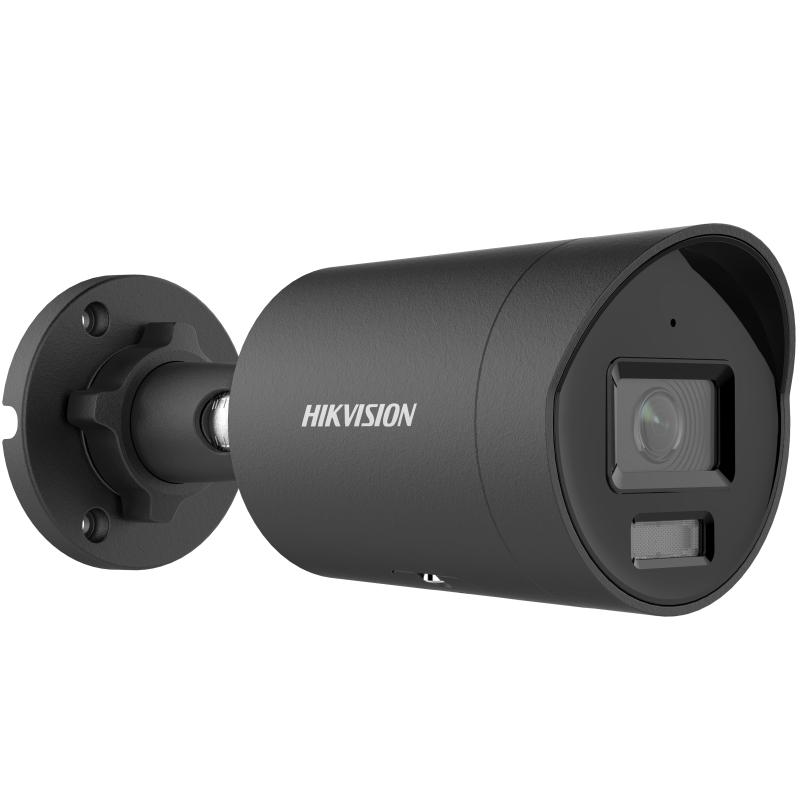

Hikvision DS-2CD2023G2
2 MP AcuSense Fixed Bullet Network Camera (Built-in Microphone)
| Kategori | Detail |
|---|---|
| Kamera & Sensor | Sensor: 1/2.8″ Progressive Scan CMOS Resolusi Maks: 1920 × 1080 (2 MP) Minimum Illuminasi: 0.005 Lux (warna, F1.6, AGC ON); 0 Lux (dengan IR) WDR: 120 dB • Day/Night: ICR • Shutter: 1/3 s – 1/100 000 s • Sudut: Pan 0–360°, Tilt 0–90°, Rotate 0–360° |
| Video & Kompresi | Kompresi: H.265+ / H.265 / H.264+ / H.264 / MJPEG Frame rate: hingga 25 fps (50 Hz), 30 fps (60 Hz) Mode: 3 streams, ROI 1 area, SVC support Enhancements: 3D DNR, BLC, HLC |
| Lensa & DORI | Pilihan lensa: 2.8 mm / 4 mm / 6 mm (F1.6) FOV: 2.8 mm (H105° V55° D127°), 4 mm (H78°), 6 mm (H52°) DORI 2.8/4/6 mm: Deteksi 76/115/164 m • Observasi 30/45/65 m • Rekognisi 15/23/32 m • Identifikasi 7/11/16 m |
| Pencahayaan | EXIR IR hingga 40 m dengan mode Smart IR |
| Audio | Built-in Microphone (model-U) dengan noise filtering |
| Jaringan & Penyimpanan | Protokol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, PPPoE, SNMP, SSL/TLS ONVIF (Profile S/T/G), ISAPI, SDK • Live view hingga 6 channel Slot microSD hingga 512 GB • Network storage: NAS, ANR |
| AcuSense & Event | Deep Learning: deteksi manusia & kendaraan Event: motion detection, video tampering, exception, privacy mask, heartbeat, anti-banding, reset via email |
| Fitur & Cloud | Dukungan Hik-Connect / iVMS-4200 / Hik-Central • Browser compatibility (Chrome/Firefox, IE dengan plugin) Fitur: rotate, saturation, contrast, brightness, gain, white balance (via software) |
| Daya & Interface | Power: DC 12 V (~6 W) atau PoE (802.3af Class 3, ~7 W) • Interface: RJ45 10/100 Mbps • Tombol reset |
| Lingkungan & Fisik | Proteksi: IP67 • Suhu operasi –30 °C hingga +60 °C, kelembapan ≤ 95 % non-kondensasi Dimensi: Ø 70 mm × 162 mm (diameter × panjang) • Berat: ± 490 g (kamera), ± 724 g (dengan kemasan) |
| Sertifikasi & Standar | Sertifikasi: CE-RoHS, WEEE, FCC, UL, CB, RCM, KC dll. Fitur Keamanan: password protection, HTTPS, 802.1X, watermark, IP filter, TLS 1.3, MAC binding |
